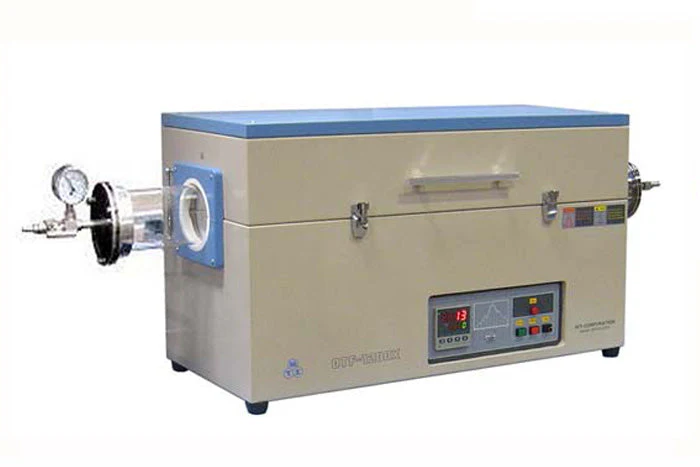

Single-zone Tube Furnace with 5" Dia Quartz Tube (36" Heating Zone) & Flanges - OTF-1200X-5L

Furnace Structure

• A double-layer steel casing with air cooling keeps the furnace surface temperature lower than 60°C.
• High-purity fibrous alumina insulation for maximum energy saving.
• The special refractory coating on the liner and heating element increases furnace life.

Power

•  7 KW

Voltage

•  AC 208-240 Single Phase, 50/60 Hz

Max. Temperature

•  1200°C (<5hr) at inert gas atmosphere

Continuous Temperature

•  1100°C

Max. Heating Rate

•  <= 20 ^oC /min

Heating Zone Length

• Heating zone length: 880 mm ( single zone )
• Constant temperature area: 240mm with +/- 1oC

Constant Temperature Zone

•  240 mm (+/-1°C)

Heating Elements

•  Fe-Cr-Al Alloy doped by Mo

Thermocouple Type

•  K Type Thermocouple

• MET certified 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
• Over-temperature protection and alarm allow for operation without attendant(s).
• +/- 1 ºC temperature accuracy.
• RS485 Communications Port.
• Advanced Temperature Control (Optional)
• MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
• You may upgrade the temperature controller to the Eurotherm 3000 Temperature Controller within +/ 0.1oC accuracy, which is fully compatible with LabVIEW. This package includes a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of the Eurotherm 3504 temperature controller.

• Made of high-quality Fused quartz with the size of 130 mm O.D x 120 mm ID x 1400 mm L
• Optional tube diameter:s 80mm, 100mm
• Two fibrous ceramic tube blocks are included for blocking heat radiation from inside the tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
• Quartz blocks (optional) are ideal for a cleaner processing environment and higher vacuum efficiency.
• You may use 4" wafer carrier to do oxidation and diffusion
• You may order flange support to avoid tube rotating ( click Pic below right )



• One pair of SS 304 vacuum flange with double high-temperature silicone O-ring is Included/
• Two needle valves with a 1/4" pipe adapter are installed on the flanges.
• One vacuum/ pressure gauge is installed on one side flange
• The vacuum level can reach 10^-2 torr by a quality mechanical vacuum pump and 10^-5 torr by a molecular pump
• Optional:


  • You may choose a flange with a KF25 vacuum port for a faster and better vacuum, also, please choose a quality mechanical pump or digital molecular pump ( click the picture below to order at extra cost )



Sliding Flange

(Optional at Extra Cost)

• One sliding flange for transporting samples (manually operated) is available as an option at $1995 extra cost.

• Referring to the picture above, you may need to order two mobile carts to support the sliding device ( click on underlined to order

Application Notes

Click here to learn the installation of a gas regulator
