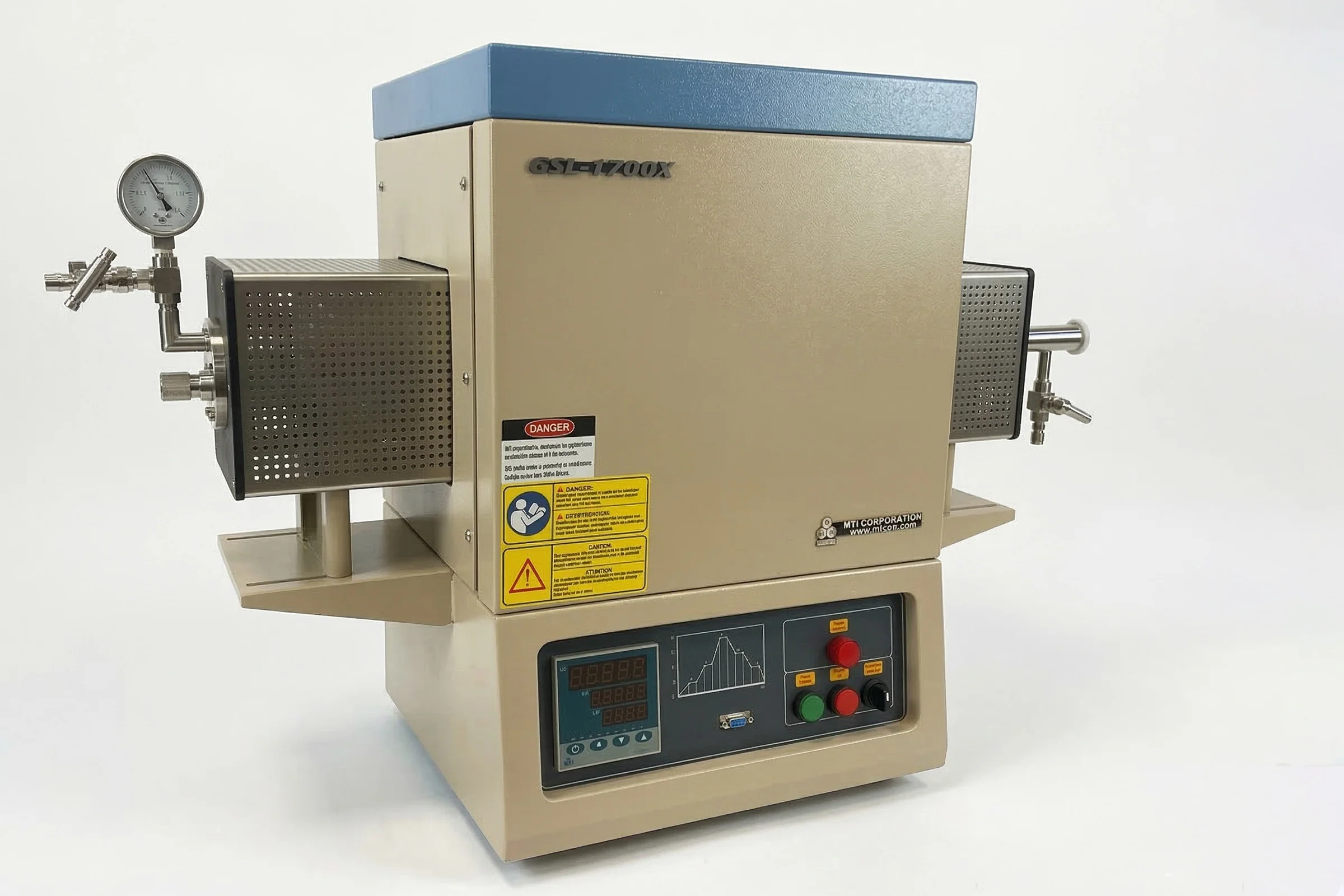

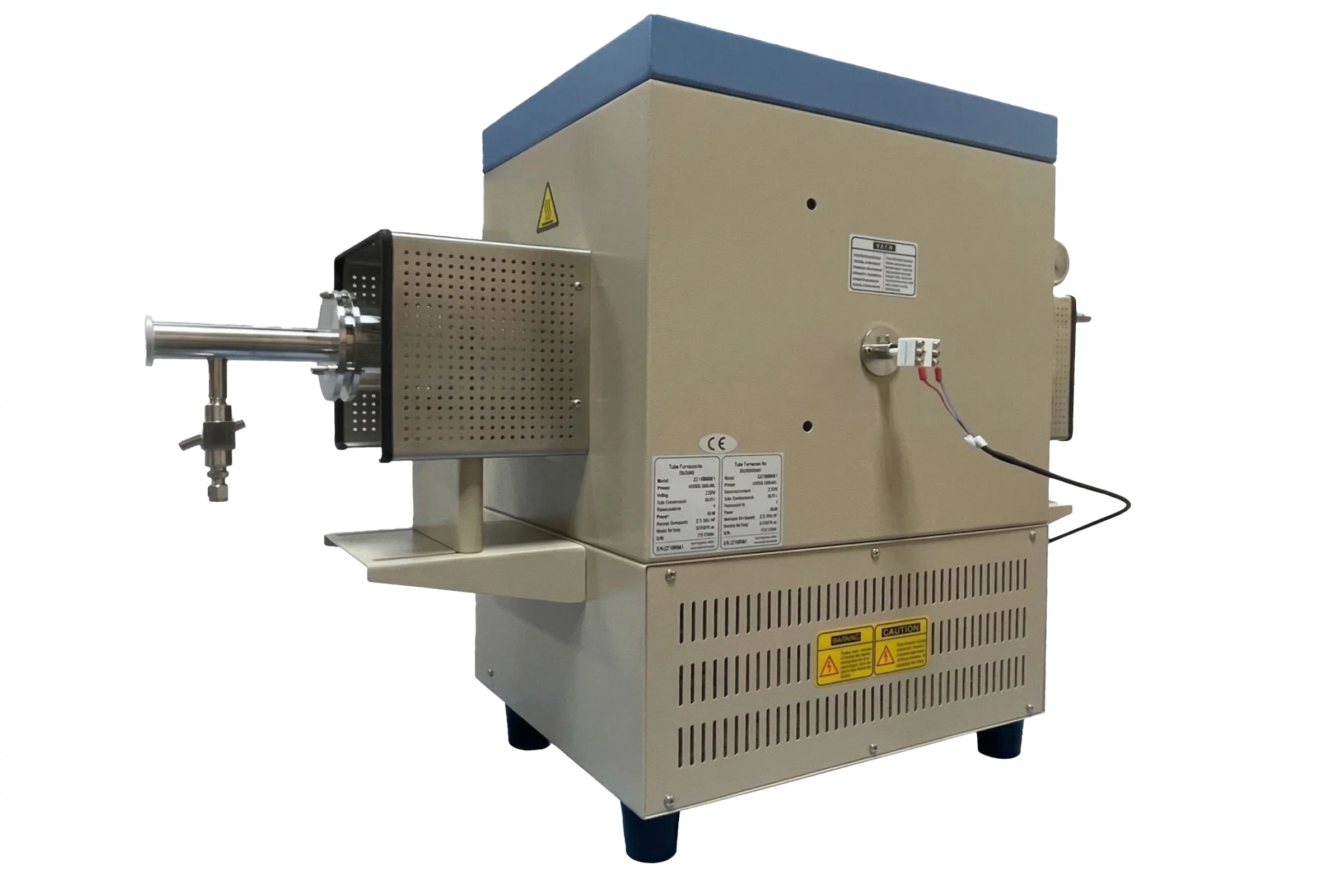

1700C Max. Tube Furnace w/ 5" Heating Zone, Alumina Tube and Flanges- GSL1700XS60

• 1650ºC continuous
• Max: 1700ºC < 3 hour

• 4 pcs 1800 MoSi2 Heating Element (30x270mm) HEL1800T-30270
•

• Double-layer steel casing with air cooling.
• Two cooling fans inside to keep the case temperature < 60^oC.
• High-purity Alumina refractory chamber with max energy saving.
• Alumina tube, vacuum flange, gauge & valves are included.
• Compact design (click the picture on the left to see dimensions)
• The compact furnace can be placed on the 600x600mm mobile cart (available in the optional parts).

• FA-YD518P-AG temperature controller is included.
• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default DB9 PC communication port

The temperature

controller

Eurotherm 3000 Series optional

• MTS01 Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS01 software kit.

• You may upgrade the temperature controller to the Eurotherm 3000 Series Temperature Controller, which is fully compatible with LabVIEW. This package includes a communication cable (RS485 - USB) and software. Click the pic left to view the full spec.

• Premier Grade alumina tube.
• 51 mm (I.D) x 60 mm (O.D) x 800 mm length.
• Four fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating).
• For 60mm tubes, it is recommended that customers purchase two pairs of tube supports to prevent the tube from bending under high temperatures (please click on the last picture to order).

Click here to choose

• One pair of sealing flange with double silicone high-temperature O-rings is included.
• Two SS needle valves and one dial vacuum gauge are installed with a flange for immediate use.
• Vacuum pressure can reach 50 mTorr by a quality mechanical vacuum pump and 10^^-5 torr by a turbo molecular pump. Please click the picture below to see the flange assembly details.

• Standard 1/4‘’ Barbed fittings with needle valves.
• For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting. Please click the underlined to order.

• Optional: You may also consider using the parts in below to increase the vacuum efficiency.
• Please click here to order a digital vacuum gauge for precision vacuum control up to 10^-4 torr (see picture below and click to enlarge)
• You may click here to order flow meter and install it in the tube flange (see picture below)
• KF25 Stainless steel Bellows
• KF25 Quick Clamps
• You may order the pressure control module ( click the picture below-right ) to keep the chamber at constant pressure

• Limited by the vacuum pump
• 50 mtorr can be achieved by the mechanical pump
• 10^-5 torr can be reached by the molecular pump
•  The vacuum pump is not included; please order it separately by clicking here

• Mechanical Vacuum Gauge (included as standard accessory). This mechanical vacuum gauge measures within a pressure range of -0.1 to 0.15MPa.
• Digital Pressure Gauge is optional: A gas-type independent (above 10mbar) digital vacuum gauge with a wide range between 3.8x10^-5 to 1125 Torr. Aside from greater measurement precision, this gauge reduces the risks of chamber explosions caused by the incorrect reading of gas pressures due to gas type dependency.

• 10 feet long 10-3 AWG heavy-duty UL approved power cable is included. An extra length cable can be ordered by clicking picture below-left
• The plug is not included. Browse our catalog for compatible plugs

• Brand new laptop with Microsoft Windows 11
• Labview Based Temperature Control System (MTS01) enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.)
• Brand new laptop with Microsoft Windows 11

• CE Certified.
• NRTL (UL61010) or CSA certification is available upon request at extra cost

• In order to obtain accurate temperature inside the tube furnace, you need to perform a temperature calibration before use. Please click here to learn how.
• How to set up a ceramic tube and vacuum flange for an MTI Tube furnace
• Proper placement of tube blocks
• The tube furnaces with alumina tubes are designed for vacuum or ambient pressure < 3 psig.
• Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn about the installation of a gas regulator.
• The gas flow rate should be limited to < 200 SCCM ( or 200ml/min )
•  Vacuum pressures may only be safely used up to 1500°C
