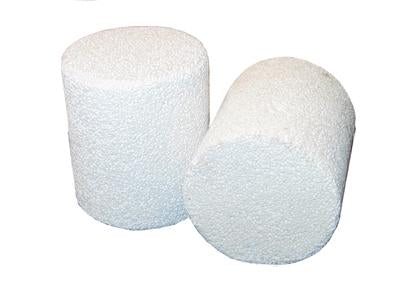

Alumina Foam Block: 50 mm Diameter (one pair) for MTI's 60mm Dia Tube Furnace - FTB50

• Chemical Composition   80% alumina, click the picture below to see the composition analysis
•
• Max. working temperature:  < 1700ºC
• Diameter:  50 mm (2.05") ± 2mm (0.08")
• Length:     50 mm (2.56") ± 2mm (0.08")
• Fit MTI's GSL1600-60X Bench-top (1600C 2"ID) Vacuum & Gas Tube Furnace and GSL1700-60X Bench-top (1700C 2" ID) Vacuum & Gas Tube Furnace.

Application Note:

• To prevent the dust-falling issues and ensure a cleaning process, it is suggested to apply a thin layer of alumina adhesive material on the surface of the foam block. Please click underline to order.
• For direct delivery of precursor gasses over the heating zone, the customer may drill a hole in the alumina block for sticking a 1/4" O.D. quartz (<1200ºC) or alumina (<1700ºC) tube to deliver gas into the furnace tube center. Porous alumina block is very soft and it can be hand-drilled through easily.
• Click to Watch the video “How to insert and remove foam block for MTI furnaces”.
• Click to Watch the video "How to modify the thermal blocks".


Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
