1200°C Max. Compact Inert Gas Quenching Furnace with 2" OD Quartz Tube - OTF1200XSVTQ
HomeStore

1200°C Max. Compact Inert Gas Quenching Furnace with 2" OD Quartz Tube - OTF1200XSVTQ

1200°C Max. Compact Inert Gas Quenching Furnace with 2" OD Quartz Tube - OTF1200XSVTQ

OTF-1200X-S-VTQ is a compact vertical quenching tube furnace with an 50 mm OD quartz tube, which is designed for quenching samples from the temperatures ( Max. 1200°C) into a container with mineral or silicone oil to study material phase transitions and microstructures.  An air-tight flange with a sample drop fixture is installed on the top of the quartz tube, and the sample can be dropped automatically

SPECIFICATIONS

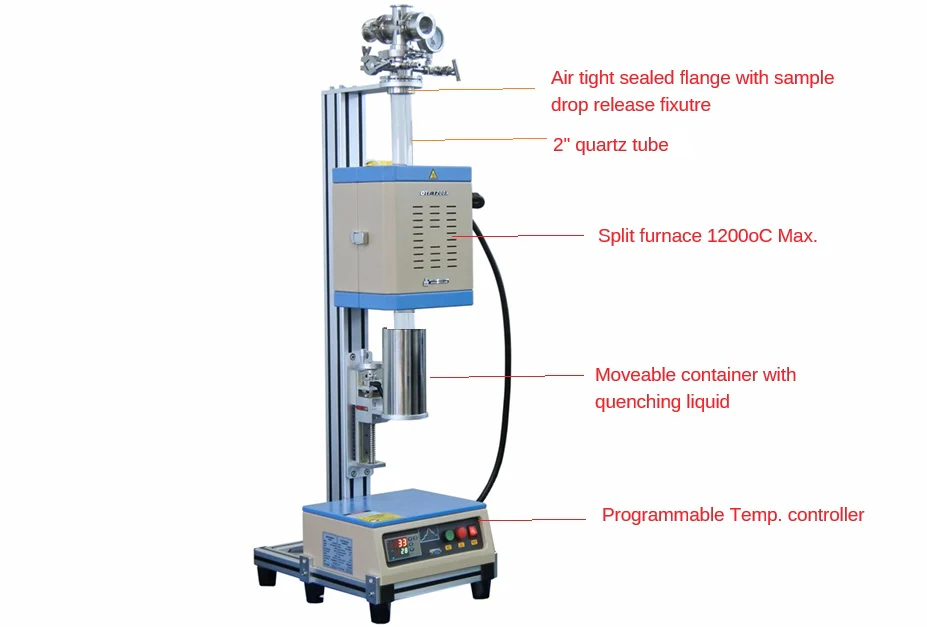

Furnace Structure

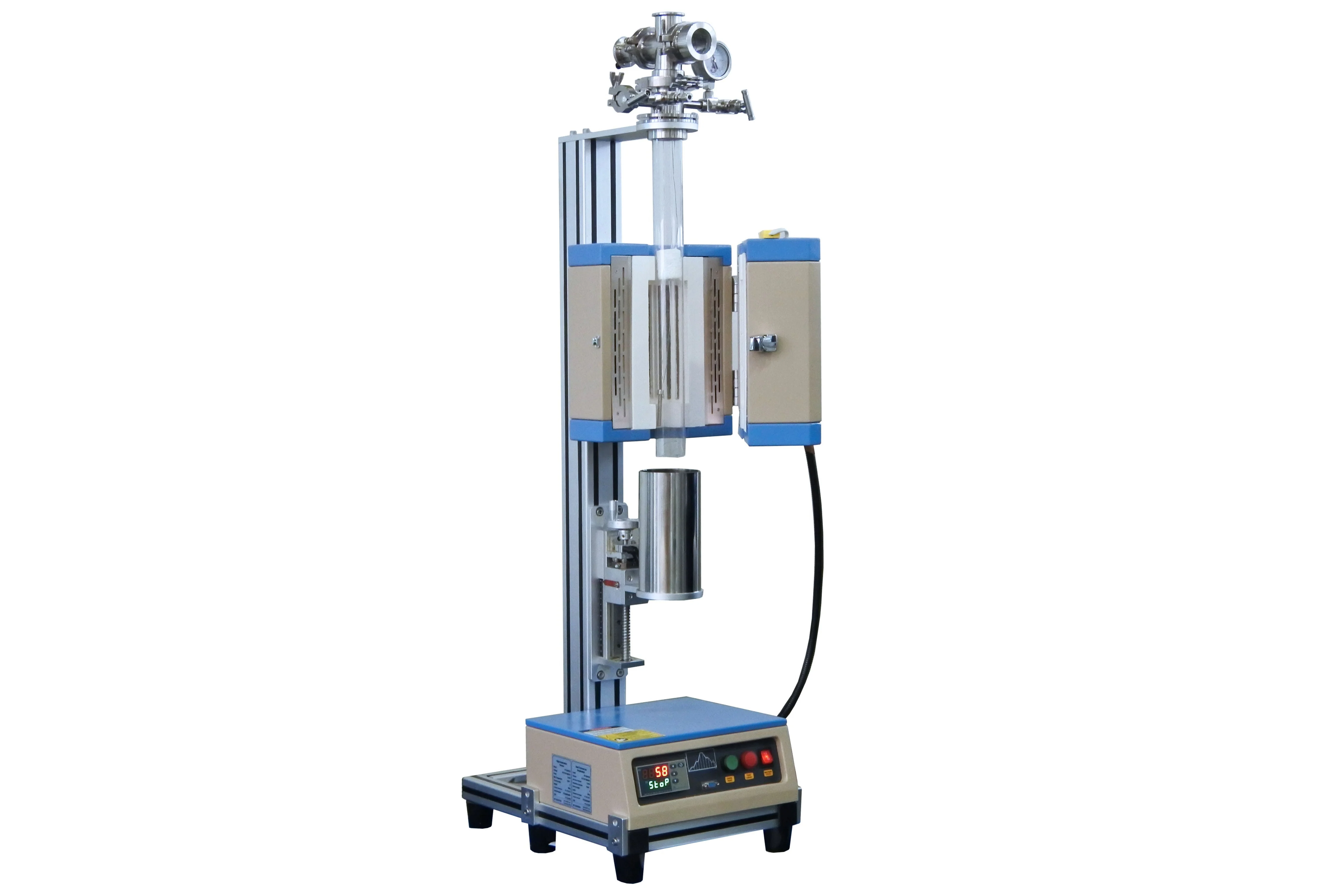

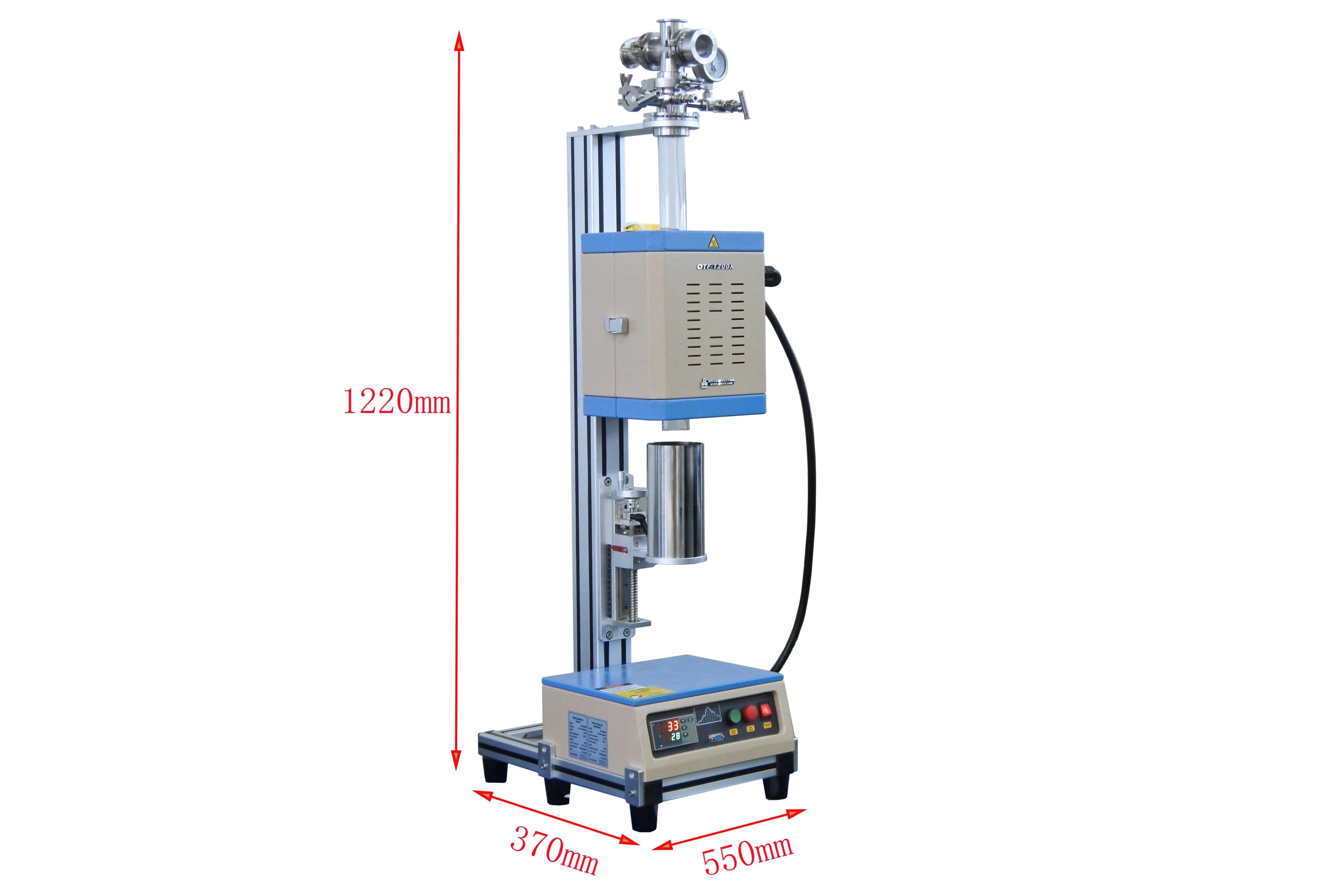

  • The furnace is vertical and splitable for easy installation of tubes and flanges.
  • The bottom of 50 mm OD quartz tube is inserted into a SS304 container filled with quenching liquid and isolated from air.
  • Top of the tube is sealed by an air-tight flange with a valve and a pressure gauge.  The inert gas will flow through the tube from top to bottom.

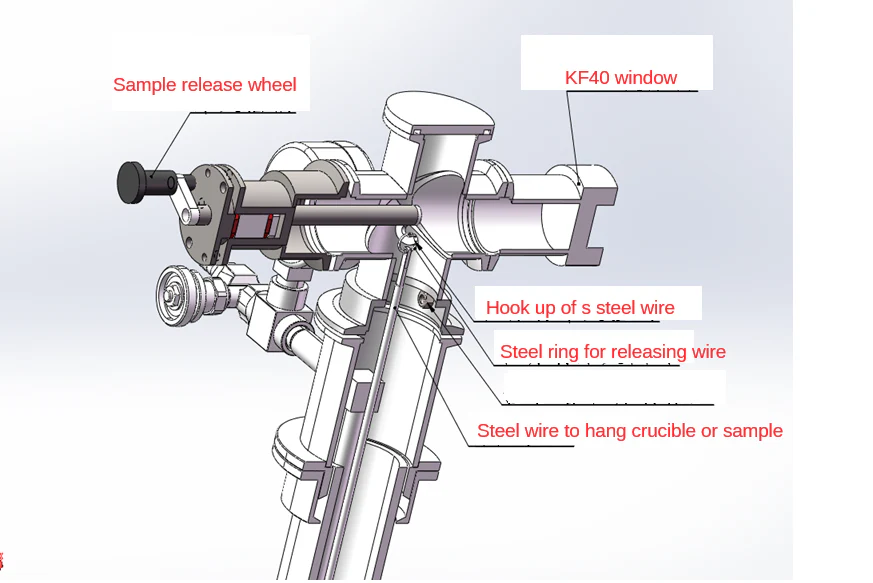

  • The sample or crucible is hung to a releasing fixture via a metallic wire.  The sample will drop into the liquid container rapidly by rotating a handwheel.
  • The furnace can also be used for heating treatment under vacuum by adding a flange on the bottom ( remove the liquid container.

Power
  • 110 VAC, Single Phase, 50/60 Hz
  • 1.2 kW

  • 10 feet long 10-3 AWG heavy-duty UL-approved power cable is included. The extra length of the power cable can be ordered.

Heating Temperature
  • 1200 oC < 30 minutes
  • 1100 oC  continuous
Max. Heating Rate
  • <= 20 oC /min
  • Recommended heating rate    ≤ 10 oC /min

Processing Tube
  • Materials:  Quartz Tube included
  • Size:   OD 50 mm x ID 45 mm x Length 680 mm (included)

Heating Zone

  • Heating Zone length:    200 mm
Temperature Controllers
  • 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendants (s).
  • +/- 1 ºC temperature accuracy.
  • One K-type thermocouple.
  • RS-485 Communications Port.
  • PC-controlled software and interface module are optional. (Standard Modbus protocol, written by LabVIEW).
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.


Water and Oil chiller (optional)
  • For better quenching with less oxidation,  suggest using silicone oil as quenching media with recirculating cooling
  • Please click here to order a water and oil chiller

Compliance
  • CE Certified
  • NRTL certification (UL61010)  or CSA certification is available upon request at extra cost.

Application Notes

For queching Ti alloy, you shall use silicone oil with a recirculating chiller, quartz thermal block, and an alumina crucible to avoid oxidation. Please see the pictures below
