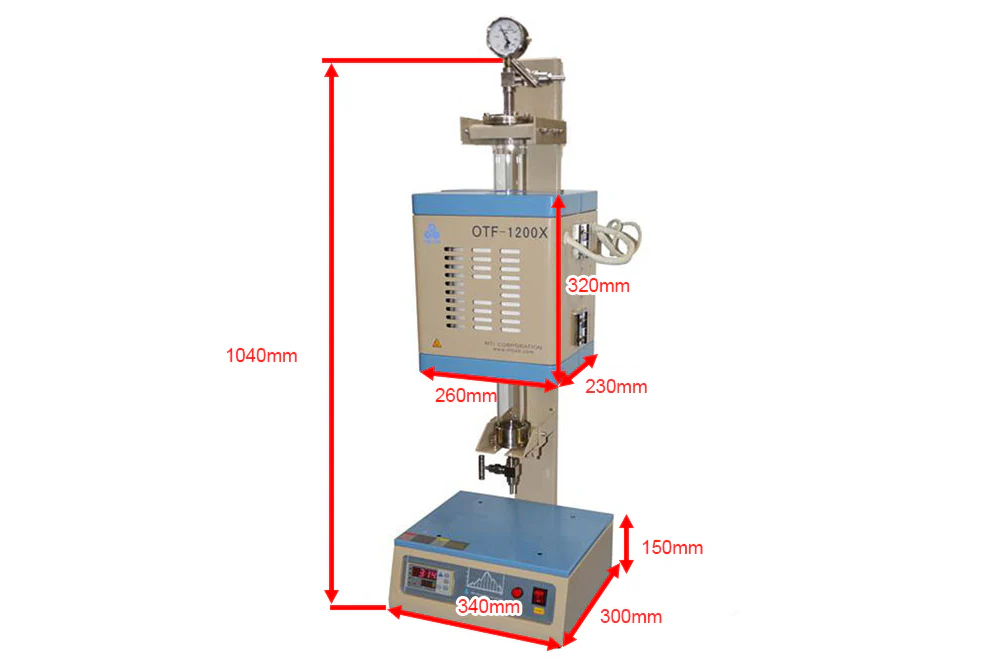

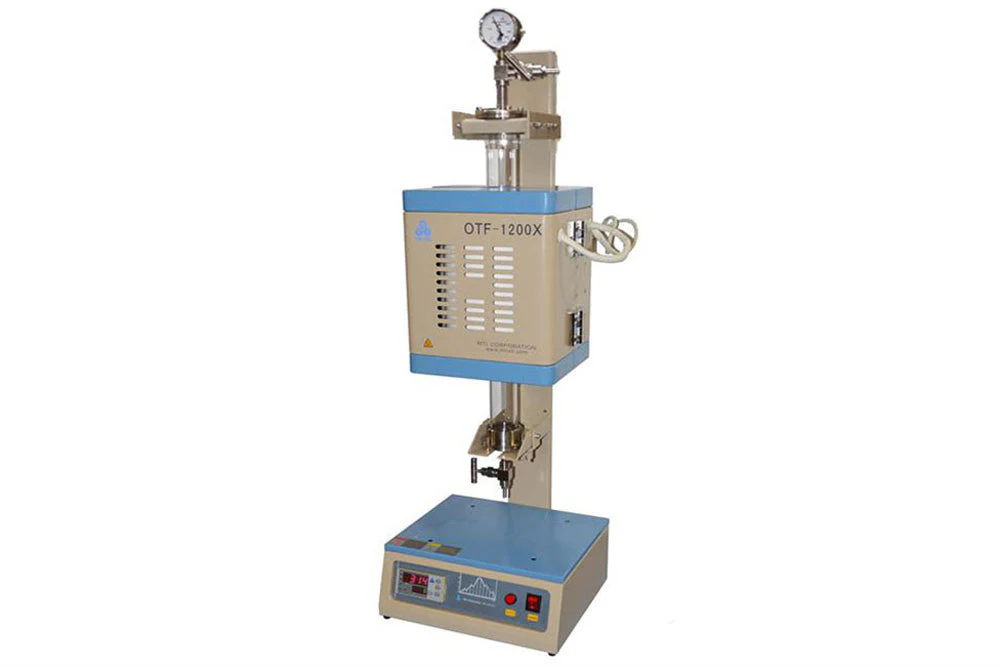

Compact Vertical Split 1" or 2" Quartz Tube Furnace with SS Vacuum Flanges - OTF1200XSVT

• Double-layer steel structure with air-cooling
• Split door design for easy installation of tube
• High-purity Al2O3 fibrous insulation designed for maximum energy saving

Power

1.2 KW; 110VAC, 10 A or 208-240VAC, 6A, 50/60Hz

Max. Temperature

1100ºC

Continuous Temperature

1000ºC

Max. Heating Rate

<= 20ºC/min

Tube Size and Materials

• For fused quartz tube, select the tube size in the options bar:
• 25mm O.D x 20mm I.D x 610mm L
• 50mm O.D x 44mm I.D x 600mm L
• SS304 or SS310 alloy tube is available upon request

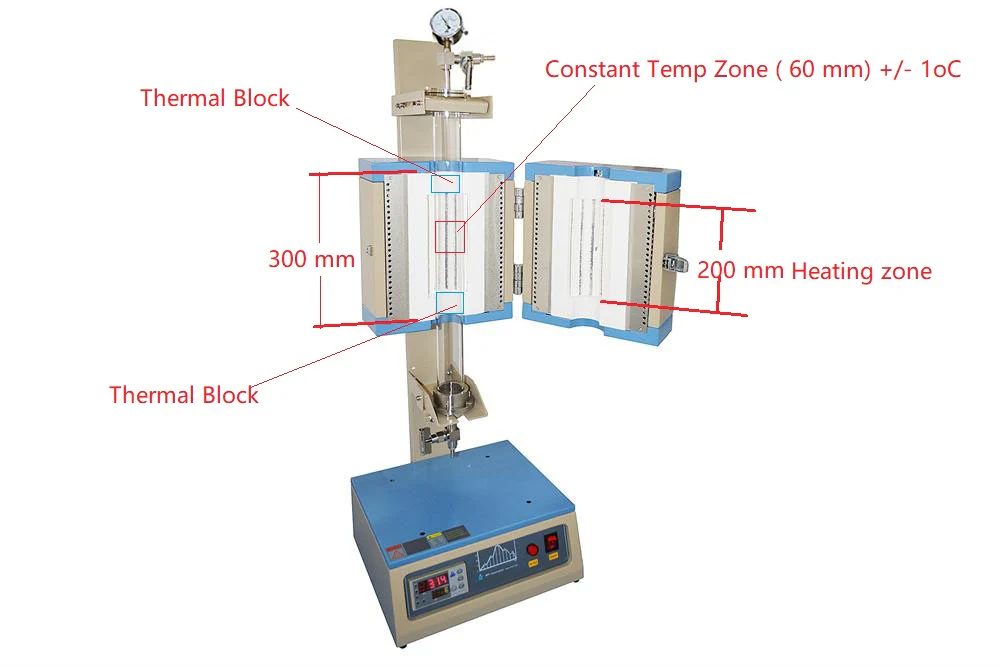

Heating Zone Length

200mm (single zone)

Temperature Controller

• 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
• Over-temperature protection and alarm allow for operation without attendant(s).
• +/- 1ºC temperature accuracy.
• You may upgrade the controller to Eurotherm 3000 with +/- 0.1ºC accuracy

• Standard 1/4‘’ Barbed fittings with needle valves.
• For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order.
• Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order.
• Optional: You may also consider using the parts below to increase the vacuum efficiency
• Please click here to order a digital vacuum gauge for precision vacuum control up to 10^-4 torr (see picture below and click to enlarge)
• You may click here to order a flow-meter and install it in tube flange (see picture below)
• KF25 Stainless steel Bellows
• KF25 Quick Clamps



Vacuum Level

 10-2 Torr by a mechanical pump

Laptop, software & WiFi Control (Optional)

• Brand new laptop with Microsoft Windows 11 and Microsoft Office 2013 (30 days free trial) fo
• Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces.
• A wireless remote control provides up to 50 meters of operating range.

Compliance

• CE certified
• NRTL or CSA certification is available upon request at the extra cost

Warning

Click here to learn the installation of a gas regulator

• Tube furnaces with quartz tube are designed for using under vacuum and low pressure < 3 psig.

• Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSIG for safe operation. Click here to learn the installation of a gas regulator.
• Vacuum pressures may only be safely used up to 1000°C
• The flow rate for gasses should be limited to<200 SCCM  for reducing thermal shocks to the tube
