1700 Vertical Split Tube Furnace OTF-1700X-VT
HomeStore

1700 Vertical Split Tube Furnace OTF-1700X-VT

1700 Vertical Split Tube Furnace OTF-1700X-VT

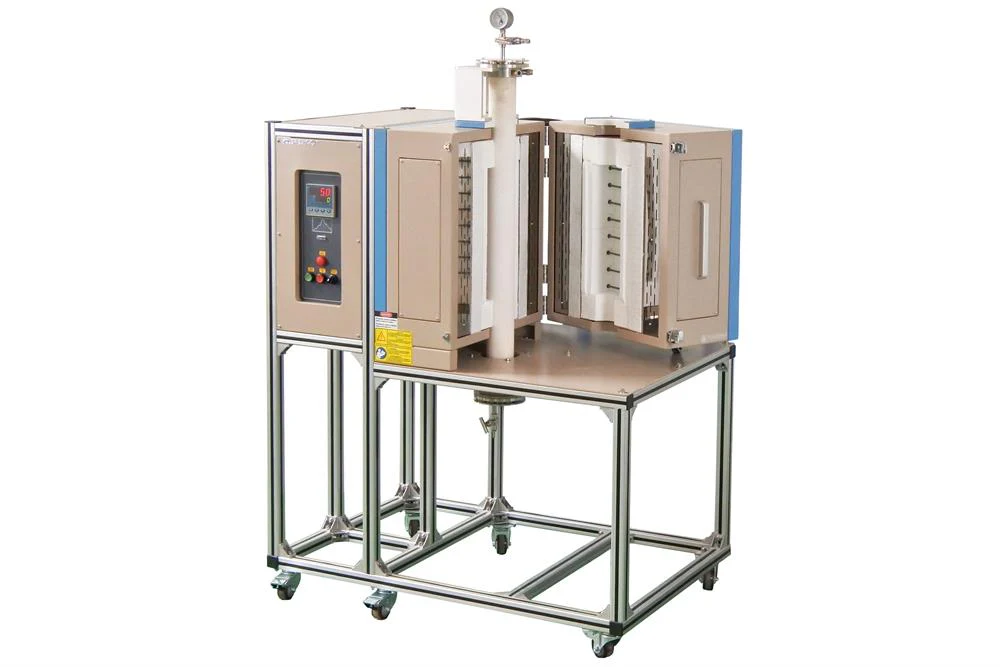

OTF-1700X-VT is a splitable single zone vertical tube furnace suitable for sample heating or quenching under vacuum or flowing gas conditions up to 1700°C. Single crystal growth and heat treatment system can be set up with a quenching system, lifting mechanism, or other motion mechanisms.


SPECIFICATIONS:

Power Input 7KW
Working Voltage  AC220V Single-phase 50/60Hz (40 A breaker required)
Working Temperature 1700°C Max. for a short time
1600°C  Continuously
Recommend Heating rate 0 ~ 1400  ≤10/min
1400 ~1600 ≤5/min
Features
  • High-purity aluminum fiber insulation material is more energy efficient.
  • Double layer shell with air cooling system.
  • Stainless steel vacuum sealing flange with valve and meter is included
  • B-type double platinum-rhodium thermocouple
  • The thermal blocks are included.
  • Tube size: 60 O.D x 54 I.D x 1000 mm L
  • Heating-Zone length: 400mm


Temperature Controllers
  • PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • Two S-type thermocouples (one for each zone).
  • DB9 Communications Port.
  • Optional:
    • The furnace may be operated by a PC by installing a control module. Please order an MTS-02 control module at extra cost.
    • If you order the PC control module and the furnace, we will install and test it before shipping. We recommend you order a computer laptop from us to avoid software installation problems. For more information please click here.

Vacuum Level
  • 10E-2 torr by a quality mechanical vacuum pump
  • 10-5 torr by the molecular pump





$29,998.00
