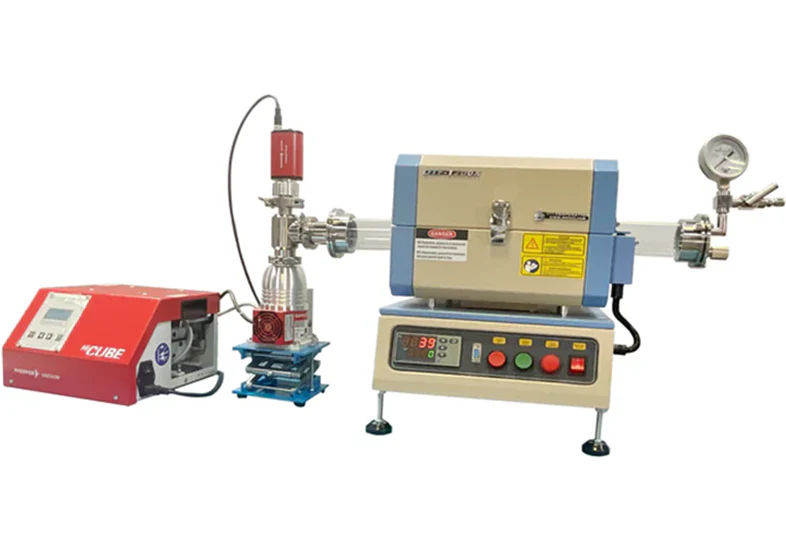

OTF-1200X-PV-HVS is an integrated system of a compact tube furnace with a high-performance Turbo vacuum pump to work Max. Temperature up to 1200˚C. The furnace is equipped with a 60mm O.D Quartz tube and vacuum sealing flanges as the heating chamber. A mechanical vacuum gauge is installed on the left flange, and right flange is connected to the Turbopump by a KF40 Clamp. This vacuum system enables the quartz tube to reach an ultimate vacuum level of 10^-5 torr. The furnace equips with PID programmable temperature controller to provide Maximum of 30 segments of heating and cooling segments with ±1 ˚C accuracy.
  • Double-layer steel structure and cooling fans to keep surface temperature <70°C
  • Alumina fibrous thermal insulation for better energy efficiency
  • Alumina coating on the thermal insulation for a longer service life of a heating chamber
  • Interchangeable design of heating module

SPECIFICATIONS:

Power
  • 120VAC, 20 A, 50/60 Hz, single phase, or
  • 208 - 240 VAC, 10 A, 50/60 Hz, single phase
  • 1.2 KW
Working Temperature
  • ≤1200°C (<1 hour)
  • ≤1100°C ( continuous)
  • ≤1000°C (under vacuum)
Heating Rate
  •  ≤20 °C/min
Heating Zone
  • 8" (200mm), single zone
Uniform Temp zone
  • 2.3" (60mm) (±2°C) @ 600 °C
  • Temperature distribution

Temperature Controller
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • Built-in Over Temperature and Thermocouple Failure Protection
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • DB9 PC communication port
  • Temperature accuracy: +/- 1°C
Heating Elements
  • Fe-Cr-Al Alloy doped by Mo
Thermocouple
  • Type K, TCK8S3B
Tube Size
  • 60mm Quartz Tubes: 60mm OD x 55mm ID x 600 L mm
  • A pair of Quartz blocks with corresponding sizes is included to limit heat dissipation from the heating area
  •  Crucibles are also available for purchase

Vacuum Flanges

A complete 60mm O.D Flange set

  • An O.D. 60mm flange is equipped with 1/4" tube fittings as gas inlet & outlet and Needle Valve, 1/4'' quick-connect for 1/4" O.D thermocouple feedthrough, and a Vacuum Gauge.
  • The right flange is connected to the Turbomolecular pump and secured by a KF40 Clamp
Pressure
  • < 3 psig
Ultimate Vacuum of Quartz Tube
  • 10-6 torr by the turbopump at ambient temperature.
Pressure Gauge
  • A Vacuum Guage is equipped on the flange set
  • A Compact Turbo Vacuum Pump System with Guage, Valve - Made in Germany
Software (Optional)
  • LabVIEW-based Temperature Control System (MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
 Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost.
