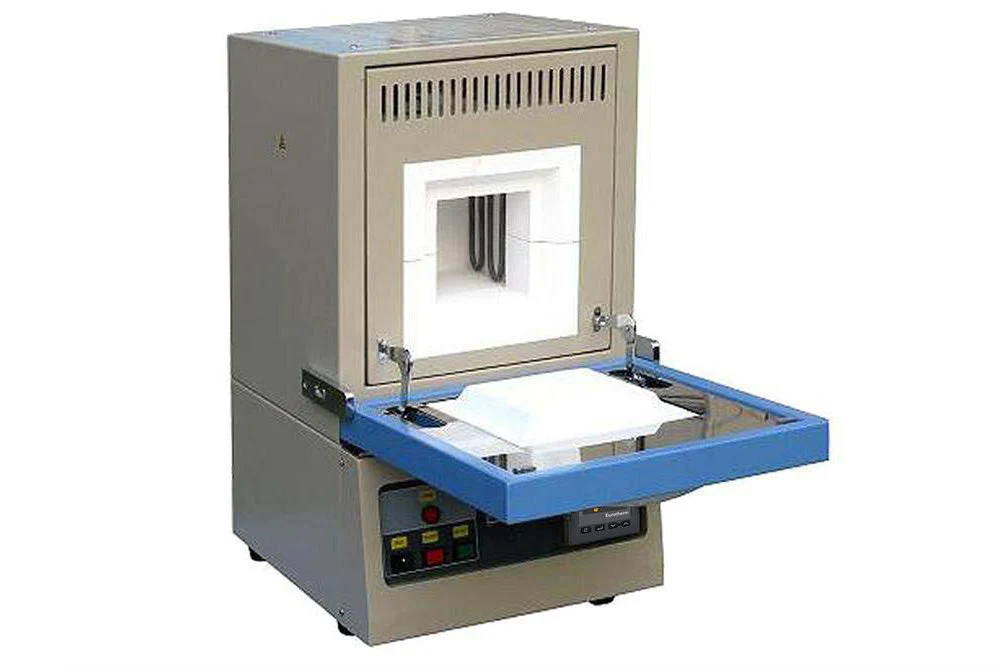

1800C Compact Muffle Furnace (4.7x4.7x 4.7", 1.7L) w/ Kanthal Super-1900 Heating Element - KSL1800XS

• The furnace consists of high-quality alumina fiber brick and Kanthal Super-1900 MoSi2 heating elements with a double-layer case.
• The gas inlet and venting port are installed for use at oxygen or inert gas-rich atmospheres.
• The design of the sliding-down door is for loading samples at ease.
• The furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1°C and 30 segments programmable up to 1800°C.

SPECIFICATIONS

Furnace Structure	Double-layer steel structure with air cooling fan to keep case temperature below 55°C YSZ liner for heat resistance up to 2000°C
Standard Working Temperature	1750°C (continuous)
Maximum Working Temperature	1800°C (< 2 hours)
Temperature controller	Eurotherm 3000 Series Programmable Temperature Controller. 1 program, 24 segments programmed with ramping, cooling, and dwelling steps Temperature Accuracy: ± 0.1ºC
Laptop & software (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)  Labview Based Temperature Control System enables the user to edit temperature profiles and manage heat-treatment recipes for MTI furnaces. Note: Due to the complexity of the controller operation, we strongly suggest customers to purchase this PC control kit along with the furnace and our engineers will have the software & hardware pre-installed. Please note that this PC control kit is not for sale individually.
Heating Rate	0 ~20°C / min (suggestion =< 10°C)
Heating Chamber Size	120 x 120 x 120mm (4.7" x 4.7" x 4.7 "), 1.7 L
Temperature uniformity	+/- 5°C over 50 mm (2") @ 1600°C
Heating Element	Kanthal Super 1900C grade MoSi2 - 270mm L, (4 pcs) --Made in Sweden
Thermo Couple	B Type (Pt-Rh to Pt-Rh)with Alumina tube
Working Voltage	AC 208V-240V single phase, 50/60 Hz (30A air breaker required)
Max. Power	2.5 KW (30A breaker required)
Power cable & plug	10 feet long 14-3 AWG heavy duty UL approved power cable is included The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link below (30A plug) (click here to order plugs from us)
Certificate	CE/UL/CSA Certificates are available upon request at the extra cost

STANDARD PACKAGE

P/N	Description	Quantity	Click pic to order extra
KSL7-01	Super-1900 grade Kathnal MoSi2 Heating Element - 270mm L	4 pcs
KSL7-02	B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube	1 set
KSL7-03	Al2O3 Sample Plate	1 pcs
KSL7-04	Al2O3 Furnace Door Block	1 pcs
KSL7-06	Crucible Clip	1 pair
KSL7-07	Operation Manual	1 set	View product manual
