1700 °C Compact Muffle Furnace (4.7" Cubic, 1.7L) with 30-Segment Programmable Controller - KSL-1700XS
HomeStore

1700 °C Compact Muffle Furnace (4.7" Cubic, 1.7L) with 30-Segment Programmable Controller - KSL-1700XS

1700 °C Compact Muffle Furnace (4.7" Cubic, 1.7L) with 30-Segment Programmable Controller - KSL-1700XS

KSL-1700X-S-UL is a CE certified and is ready to pass TUV(UL61010) or CSA certification compact high-temperature muffle furnace designed for maximum energy saving (<1kW at 10°C/min). It is an ideal tool for annealing and sintering materials in research or dental labs.

SPECIFICATIONS

Furnace Structure


  • 1800 grade fiber alumina with reflective coating -- maximum energy-saving design
  • Double-layer steel structure with air cooling fan to keep the case's temperature below 60°C
  • Drop-down door for easy sample loading
  • The built-in gas inlet (back) and venting port (top) for gas-controlled heating treatment.

Power
  • AC 208 - 240V, 50/60Hz, single phase
  • Note: Plug is not included
  •  2.5 KW (Max)
  • <1Kwif heating rate is at 10°C/min

Standard Working Temperature

1600°C or 2912°F (continuous)

Maximum Working Temperature

1700°C or 3092°F (< 3 hours)

Heating Rate

0 ~20 °C/min (≤10°C/min recommended)

Temperature Stability

 +/- 1°C

Heating Chamber
  • Chamber: 120mm(L) x 120mm(W) x 120mm(H)  ( 4.7" x 4.7" x 4.7"), 1.7 L Capacity

Temperature Uniformity
  • +/- 5 °C over 50 mm (2") @ 1600°C

Heating Elements

 1800 grade MoSi2 (4 pcs U shape)

Thermocouple

 B Type (Pt-Rh to Pt-Rh) with alumina tube (Browse product page for detail and replacement purchase.)

Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
  • MET Certified
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD included
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000).
  • Note: The software is only compatible with MTI’s Yudian Temperature Controller







Optional Parts

 You may order alumina crucible by click the picture below
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost.

Application Notes
  • For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10°C /min.
  • The cooling rate shall also not exceed 10 °C /min.
  • This furnace lacks vacuum sealing, and it is not recommended to use toxic or explosive gasses in this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics with overuse. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Please click here to learn how to DIY gas purging system.
  • The refractory block must be inserted before the closing the door (click the picture on left for details).



$3,149.30

Original: $8,998.00

-65%
1700 °C Compact Muffle Furnace (4.7" Cubic, 1.7L) with 30-Segment Programmable Controller - KSL-1700XS—

$8,998.00

$3,149.30

More Images

1700 °C Compact Muffle Furnace (4.7" Cubic, 1.7L) with 30-Segment Programmable Controller - KSL-1700XS - Image 2

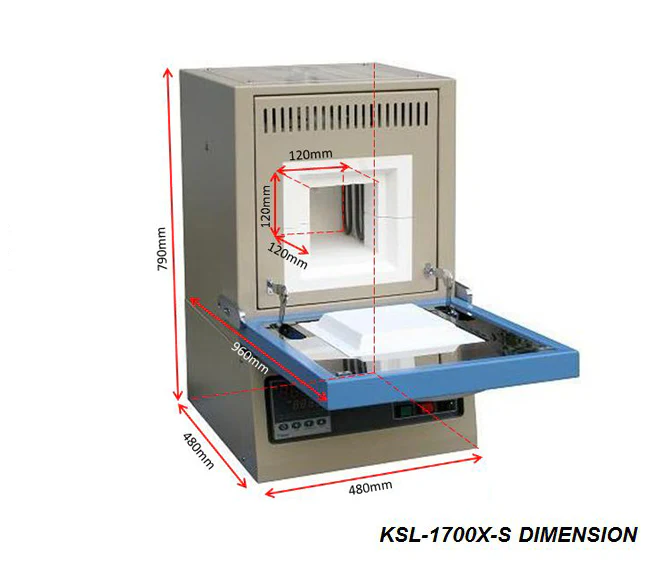

1700 °C Compact Muffle Furnace (4.7" Cubic, 1.7L) with 30-Segment Programmable Controller - KSL-1700XS - Image 3
