Name: 1100°C Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
Brand: MTI Online Store
SKU: ksl1100xs
Availability: InStock

🚚 Free Worldwide Shipping on All Orders!Shop Now

Home Store

1100°C Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS

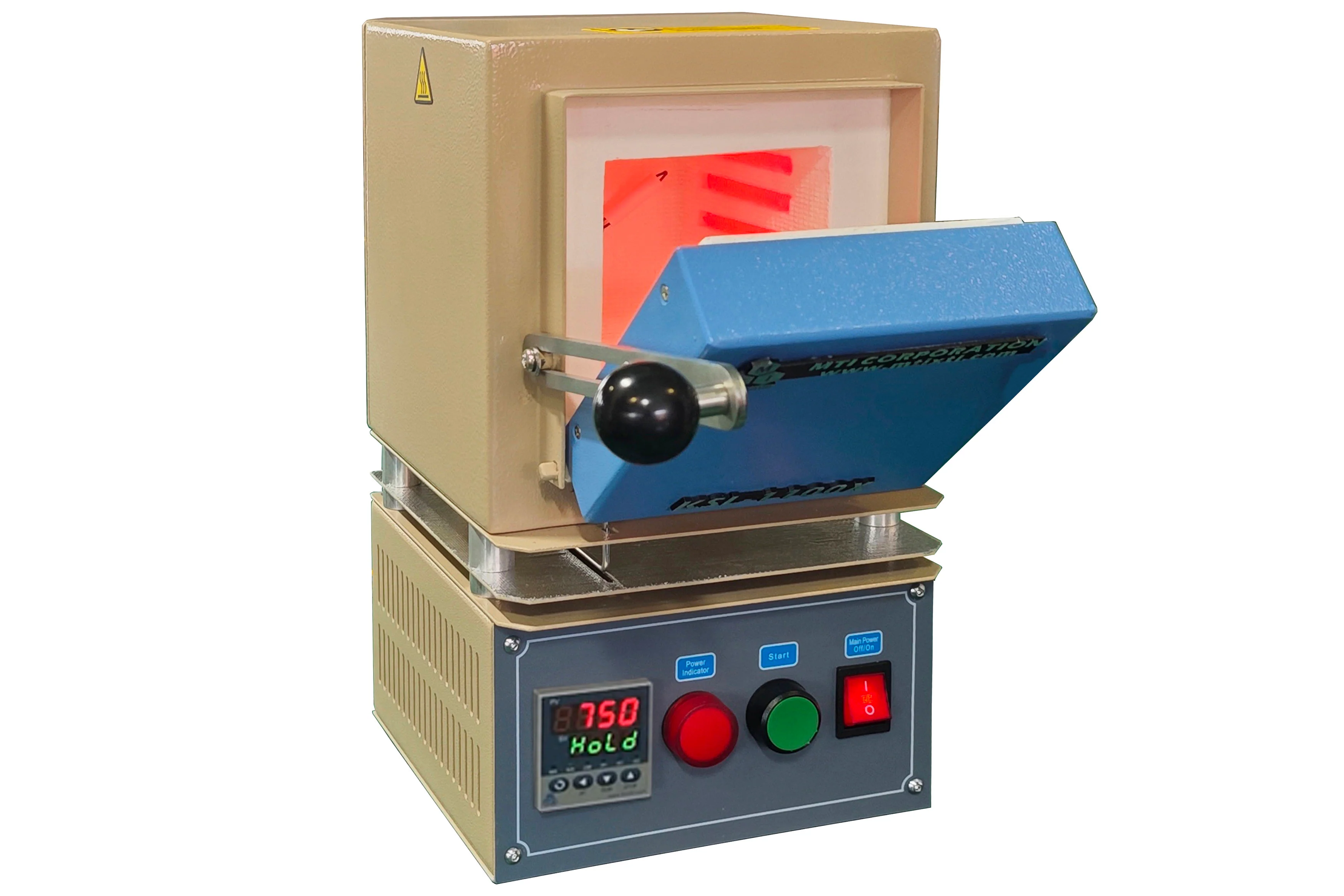

KSL-1100X-S-UL-LD is a compact muffle furnace that offers 4"x4"x4" high-purity fibrous alumina chamber, gas inlet and outlet ports, and a programmable temperature controller, It is the ideal muffle furnace for preparing small-sized samples using temperatures up to 1100 ^oC in material research and dental labs with maximum energy saving (500 - 700W only). the compact furnace can be placed into a glove box to sinter or dry samples in a vacuum or controlled atmosphere.
The promotion price is valid for online orders only and is subject to change without notice.

SPECIFICATIONS:

Furnace Construction	High-purity fibrous alumina insulation for energy saving - 30% less power consumption than other brands. Drop-down design of the door for easy and safe sample loading, with automatic power-off if the door is opened (Optional) Two 8 mm diameter hose barb connectors (gas inlet and outlet) (see pic left) in the furnace back panel are available at extra cost ($99 for both connectors). Check the option box. Note: Self-installation is required.
Optionals	If the working temperature is> 800 °C, suggest adding a protection cover as pic.. 1, at extra cost. Optional Top Opening port is available at extra cost ( Click Pic. 2-3 to order) Hybrid furnace ( Box & Tube) is available ( click Pic. 4 &5) to order Pic.1 Pic.2 Pic.3 Pic. 4Pic.5
Sintered Mullite Plate	One sintered Mullite plate is included for placing the sample in the chamber. (Pic.1) Extra sintered Mullite plates and alumina crucibles can be ordered for stacking the samples. (Pic.2) Pic.1 Pic.2
Power	110V version: 950 W (15A Fuse) ( power cord is included. Plug: NEMA 5-15P) 220V version: 1.2KW(10A Fuse) (power cord is included without a power plug.)
Operating Temperature	200 °C - 1000°C max continuously 1100°C max for an hour Note: If you would like to use the furnace at 35 - 200 °C as a drying oven at extra cost, please let us know in advance to present another set of PID parameters.
Max. Heating Rate	30 °C /min
Temperature Controller	PID automatic control and auto-tune function. 30 programmable segments for precise control. Built-in protection for overheating and broken thermocouple. Large digital control panel (48 x 48 mm) for easy operation.
Temperature Accuracy	+/- 1 °C from 200 °C to 1100 °C
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Thermocouple	K type
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost. A protective cover and a fan will be installed on the furnace with NRTL Certification, please click the picture on the left for more detail.
Application Notes	With its small footprint, low weight, and low power requirement, it can be easily accommodated in a glove box and heated under inert gas. Please click pics. 1~4 to see the different applications of this muffle furnace. Please click to order the Replacement Furnace Heating Chamber Module. Pic.1 Pic.2 Pic.3 Pic4
Warnings	Toxic or explosive gasses are not recommended for use with this furnace without the necessary safety controls and supervision. Please put furnace into the fume hood for better safety (Click Pic.1) Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. You shall place the sample into a crucible as shown below. Never place the sample on the chamber bottom directly.

Select Rated Voltage

From $454.30

Original: $1,298.00

-65%

1100°C Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS—

$1,298.00

$454.30
