1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM
HomeStore

1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM

1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM

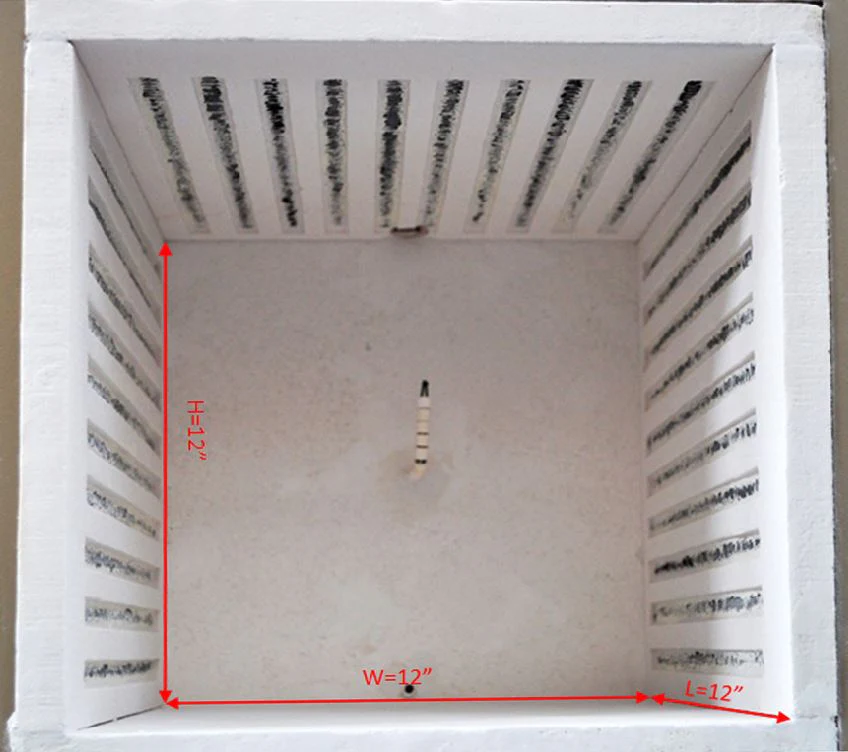

KSL-1200X-M-UL is a muffle furnace that offers a 12" x 12" x 12" high purity fibrous alumina chamber, gas inlet and outlet ports, and a 30 programmable segments temperature controller and UL / MET / CSA Certified electric components. It is the ideal muffle furnace for preparing samples with temperatures up to 1100 °C in research and dental labs with maximum energy saving.

SPECIFICATIONS


Structure
  • High-purity fibrous alumina insulation for maximum energy saving.
  • Heating elements on all three sides of the interior chamber for fast heating and enhanced temperature uniformity.
  • Double-layer steel structure with air cooling fan to keep furnace's exteriors safe to touch.
  • The safety interlock will automatically power off the furnace when the door is opened.
  • Built-in vent port (top) to remove undesirable contaminants and moisture and extend the lifespan of the heating elements and furnace.

Power
  • 208~240V AC, Single phase, 50/60 Hz
  • 7.5 kW, 40 A.
  • Note: A power cord is included without a power plug.
    A proper power plug is available via the figure on the left.
Max Operating Temperature
  • 1200 °C continuously
Temperature Stability
  • ±1 °C
Temperature Uniformity
  • +/- 8 °C @ 1000°C in the center 260 x 260 x 260 mm area
Max. Heating Rate
  • <20 °C/min
Temperature Controller
  • A digital temperature controller (Version 858) is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ÂșC temperature control accuracy
  • Default DB9 PC communication port
Temperature controller (optional)
  • Upgrade an Eurotherm Temperature Controller for better temperature PID control with accuracy +/- 0.1oC
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 11 for immediate use.
  • LabVIEW-based Based Temperature Control System (MTS03)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • The above features are available upon request at an extra cost. Please contact us for more information.
Gas Fitting & Exhaust
  • One 1/4" barbed Gas Inlet was installed on the back panel of the furnace.
  • One gas exhaust port is built on the top of the furnace casing.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.




Application Notes
  • For longer furnace service life, we recommend the heating rate not to exceed 10 °C /min.
  • The cooling rate shall also not exceed 10 °C /min.
  • This furnace lacks vacuum sealing, and it is not recommended to use toxic or explosive gases in this furnace without the necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence, and the cracks may be repaired with alumina coating.
  • You may order an alumina crucible by clicking the picture below.
  •  Click here to choose a crucible



$2,099.30

Original: $5,998.00

-65%
1200C Muffle Furnace (12x12x12", 27 L) w/ Programmable Controller- KSL1200XM—

$5,998.00

$2,099.30

More Images
