1700℃ Max. 8 Chamber Furnace with Automatic Doors For Autonomous Operation KSL-1700X-MGI-8-AD
HomeStore

1700℃ Max. 8 Chamber Furnace with Automatic Doors For Autonomous Operation KSL-1700X-MGI-8-AD

1700℃ Max. 8 Chamber Furnace with Automatic Doors For Autonomous Operation KSL-1700X-MGI-8-AD

 KSL-1700X-MGI-8-AD consists eight box furnace together for high throughput heat treat processing of new material discovery.  Temperature of each heating chamber is controlled independently up to 1700℃.   The door of each furnace is automatically open and close as program via touch screen computer.  Combining a robot arm,  the furnace system can work 24/7 autonomously.

SPECIFICATIONS:

Furnace Structure
  • Integrate eight  box furnaces  ( 120x120x120 mm ) together for space and energy saving
  • Each heating chamber is independently temperature controlled, with a maximum temperature of 1700℃
  • Can simultaneously accommodate four samples for heat treatment at different temperatures
  • The door of heating chamber can open and close automatically as grogram for sample load and unload
  • Optional robot arm is available for 24/7 autonomous operation
Specifications
  • Voltage: AC220V+/- 10%   50/60HZ,  Single-phase 220V
  • Power: 20 KW
  • Heating rate: ≤10/min
  • Chamber size: 120*120*120mm (  capacity 1.7 L )
  • Effective uniform heating space:  80x80x80 mm within +/- 5oC
  • Heating element: MoSi2
  • Thermocouples: B-type

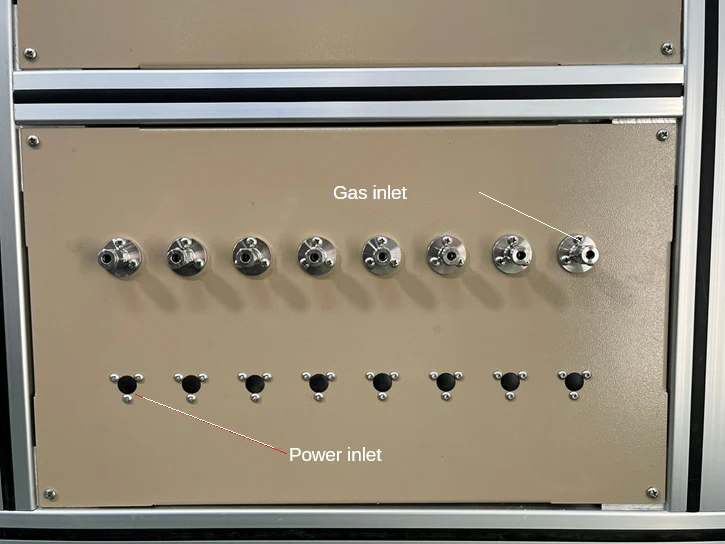

  • 8 gas inlets are installed in back of furnace

Working Temp.
  • Continuous Working Temperature 1600°C
  • Maximum Working Temperature 1700°C (< 30 mins)
  • Maximum 1750°C upon request at extra cost

Control of Temperature  and door
  • Touchscreen temperature and door control
  • Eight independent temperature control channels enable simultaneous one-touch control
  • PID automatic temperature control system
  • Intelligent 50-stage programmable control
  • The door of each heating chamber can be open or close as programs via the touch screen panel
  • Default DB9 PC communication connection port for robot operation
  • Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)

Automation  option
  • A robot arm and sample tray station may be connected with the 8 chamber furnace to achieve operation autonomously.
  • Call MTI for your automation application
Compliance
  • CE certificated
  • NRTL certification is available at the extra cost

Warning &
Application note
  • MTI does not recommend customers to use flammable, explosive, or toxic gases(materials). If necessary due to the customers' needs, it is the customer who must take responsibility for relevant protection and explosion-proof measures. MTI is not responsible for issues arising from the use of flammable, explosive, or toxic gases(materials)
  • The equipment should operate on an independent power source, with a voltage range requirement within ±8%. It should not share the power grid with equipment generating high magnetic fields like medium and high-frequency devices. It should not be in the same room as such equipment. If unavoidable, conduct harmonic detection and treatment on the power grid and implement electromagnetic isolation for the equipment.
  • Keep the equipment away from areas prone to liquid splashing
  • Keep the equipment away from areas with magnetic or conductive powders
  • Insulation and heating elements are consumables. Cracks in insulation material during sintering are normal; they can be repaired using patching agents. Heating elements are also consumables. If the electric furnace cannot reach the working temperature or shows a significant slowdown in heating after prolonged use, contact the manufacturer to determine if replacement is necessary
  • There might be temperature fluctuations during low-temperature(below 300) operation
  • DO NOT open the furnace at temperatures exceeding 500



$111,985.00
1700℃ Max. 8 Chamber Furnace with Automatic Doors For Autonomous Operation KSL-1700X-MGI-8-AD—
$111,985.00

More Images

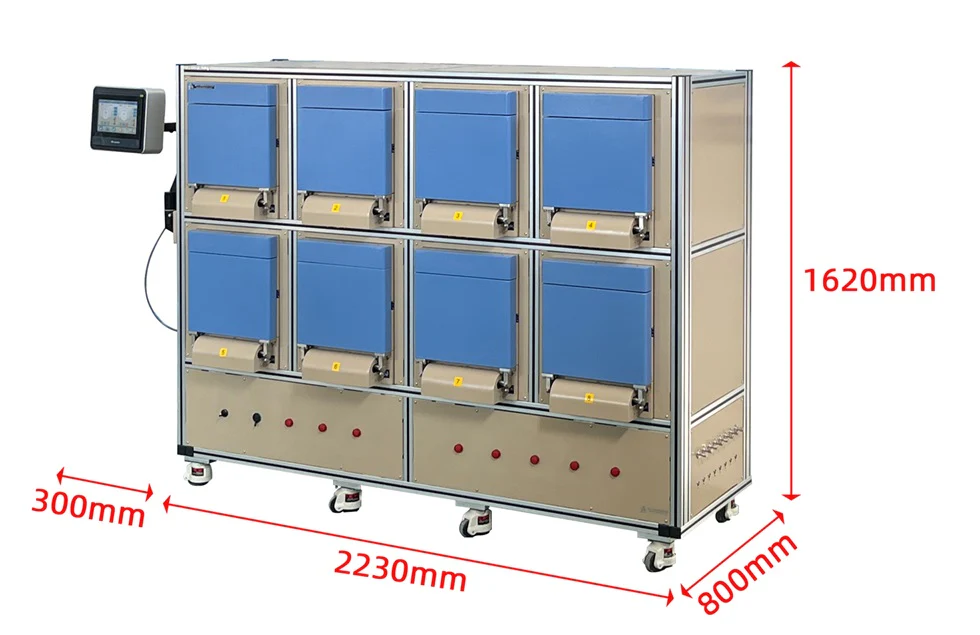

1700℃ Max. 8 Chamber Furnace with Automatic Doors For Autonomous Operation KSL-1700X-MGI-8-AD - Image 2

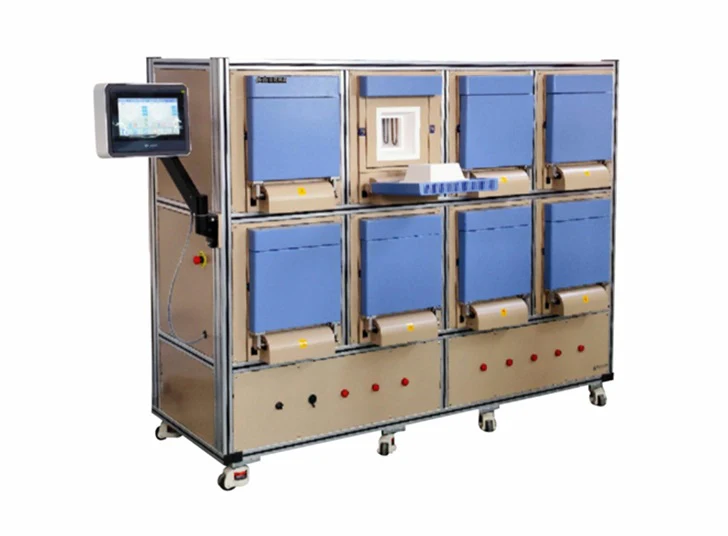

1700℃ Max. 8 Chamber Furnace with Automatic Doors For Autonomous Operation KSL-1700X-MGI-8-AD - Image 3

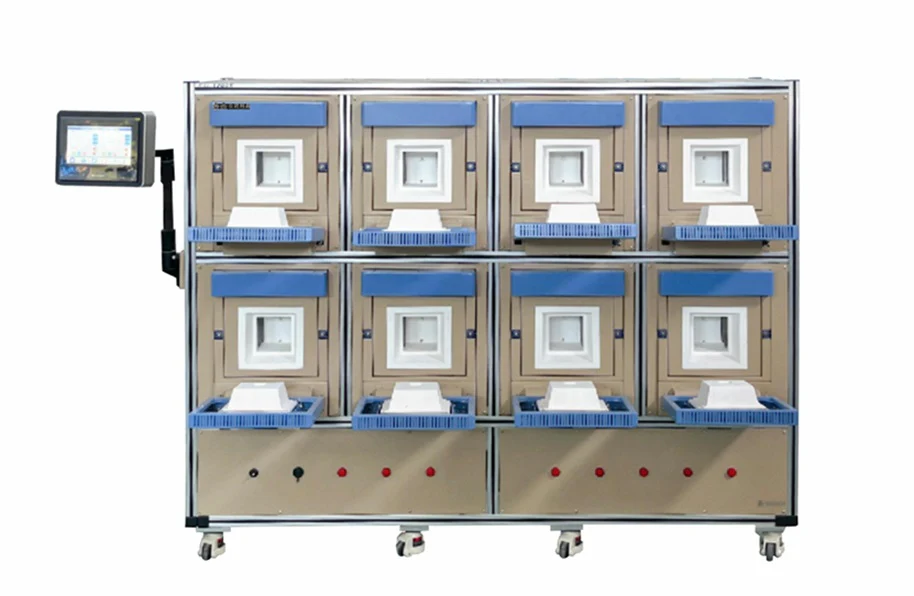

1700℃ Max. 8 Chamber Furnace with Automatic Doors For Autonomous Operation KSL-1700X-MGI-8-AD - Image 4
