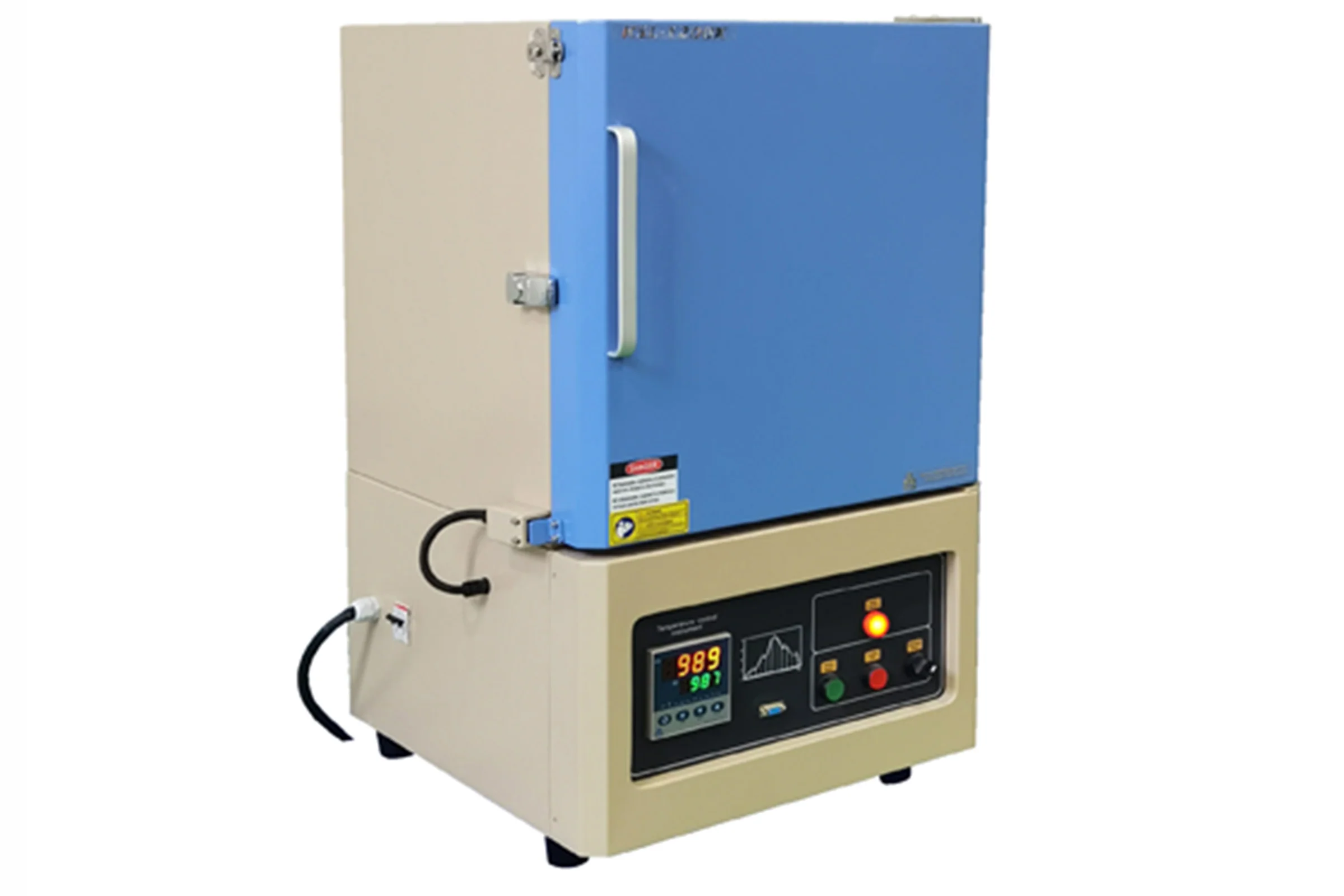

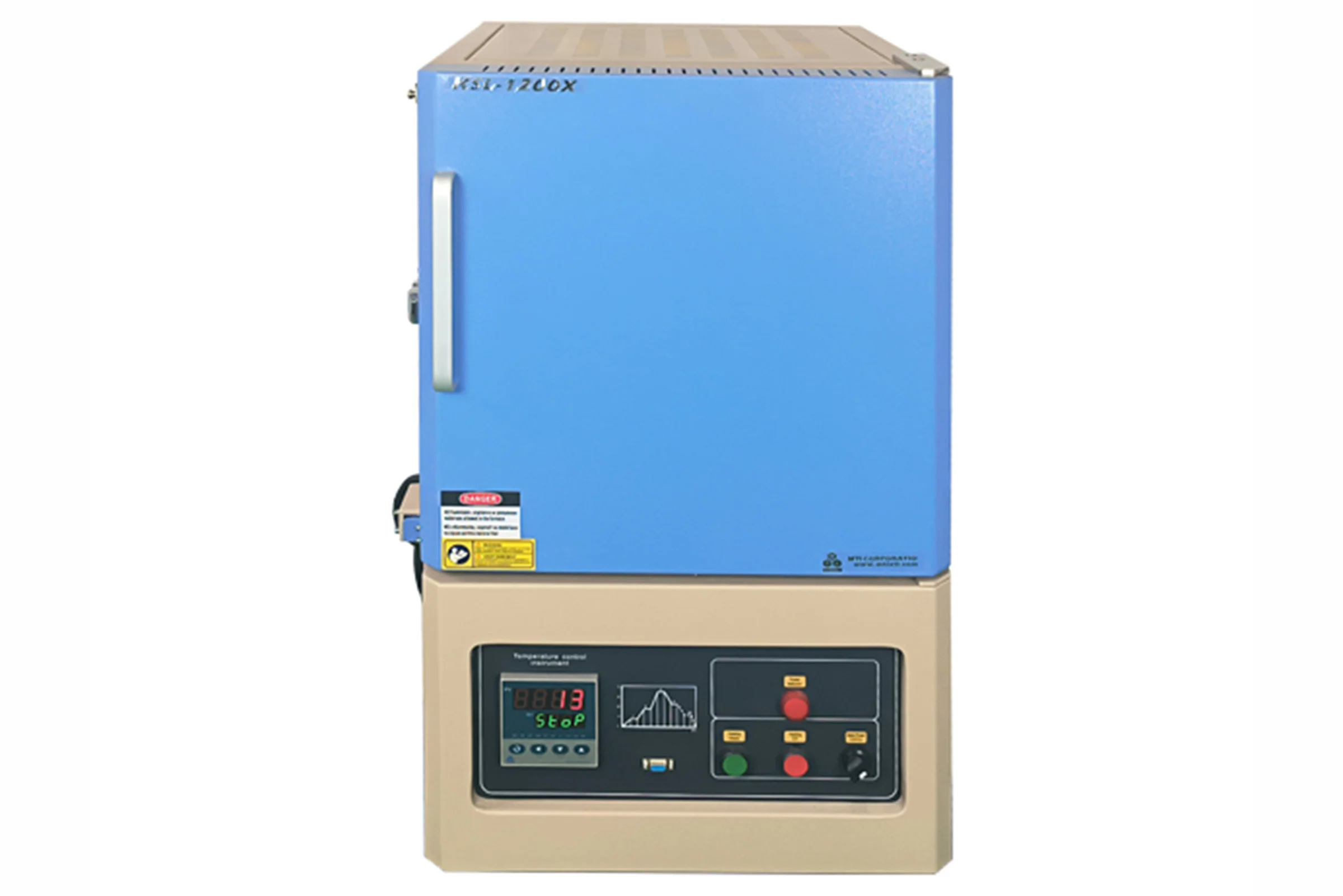

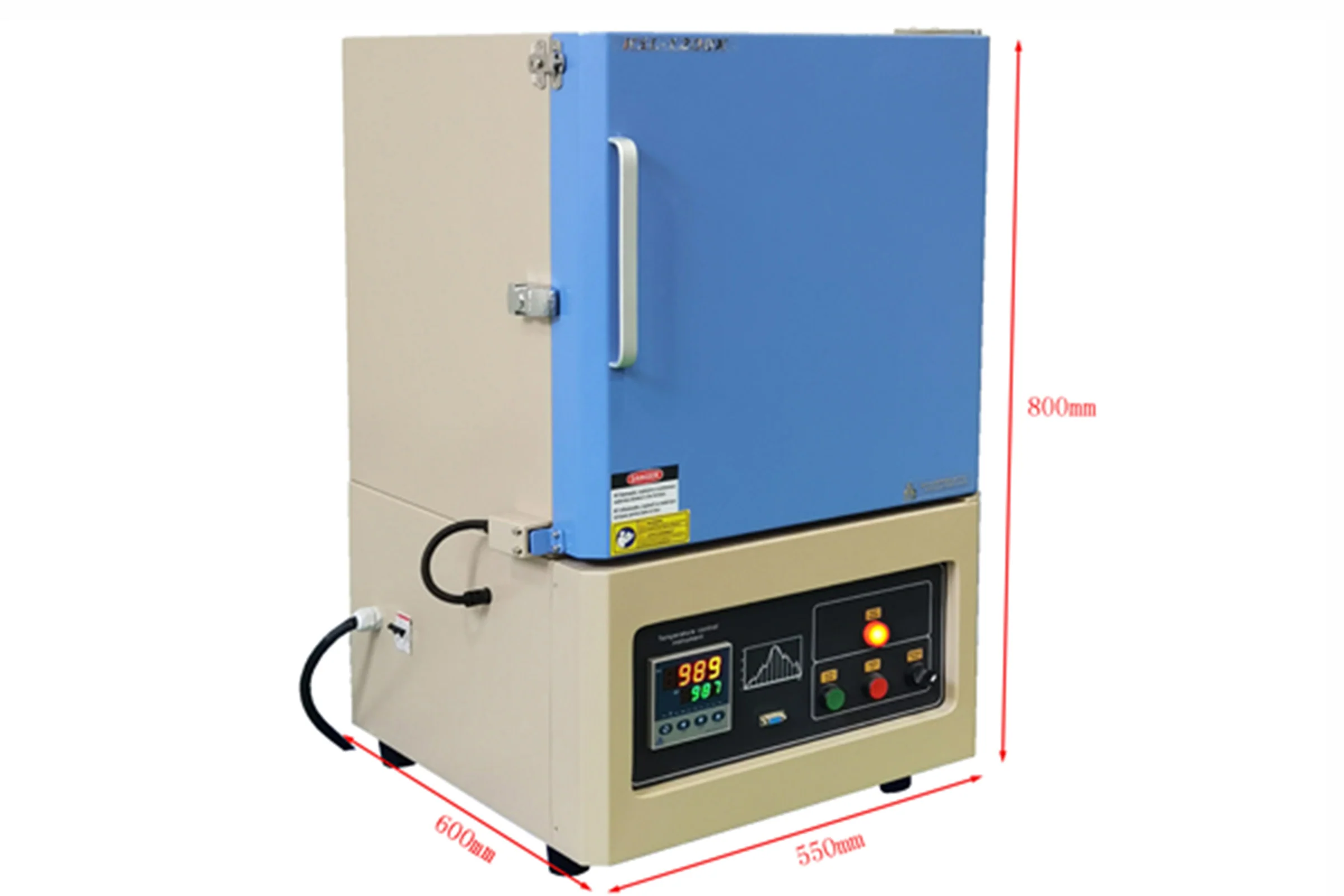

1200 °C Muffle Furnace (10" x 12" x 10", 19L) w/ Programmable Controller - KSL1200XN

Structure

• High-purity fibrous alumina insulation for maximum energy saving
• Three-sided integrated heating element provide rapid heating and temperature uniformity within the chamber
• Double-layer steel structure with air cooling fan to keep furnace's exterior safet to touch
• Equipped with overheat protection, thermocouple break protection, and an automatic-off function when the door is opened
• Top-mounted vent port to remove contaminants and moisture to extend furnace service life

• AC220V ± 10%, Single Phase, 50 Hz
• Power Output: 6.5 KW

• Operational Temperature: 0 - 1100 ℃, continuously
• Max. Heating Temperature: 1200 ℃, < 30min

• ±1°C

• Max. Heating Rate: < 20 °C/min
• Recommended Heating Rate: 10 °C/min

Heating Chamber

• Chamber Dimension: 250mm x 300mm x 250mm (L x W x H)
• Notice: Minor cracks of the insulation material may occur after prolonged use. It is normal, repairable, and it does not affect performance.
• A Heating Element Embeded in Liner is optional upon request, providing low-contamination and corrosion-resistant heating environment

• Fe-Cr-Al doped Mo

• K-Type Thermocouple

• Digital temperature controller is included.
• Proportional-integral-derivative (PID) control and auto-tune function
• 50 programmable segments with ramping, cooling, and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• ± 1 ºC temperature control accuracy
• Default DB9 PC communication port

Eurotherm Temperature Controller

(Optional)

•  Eurotherm Temperature Controller is available to be upgraded with better temperature PID control
• ±0.1 ºC temperature accuracy

Laptop, software & WiFi Control

(Optional)

• A brand new laptop with Microsoft Windows for immediate use
• LabVIEW-based Temperature control system enables the user to edit temperature profiles, manage heat-treatment recipes, and record plot data for MTI furnaces

Sample Support Shelf

(Optional)

• Quartz Sample Support Shelves are available upon request on an extra cost
• Allows increased sample loading capacity per heating
• quartz shelves provide low-contamination and corrosion resistant support surface

Gas Fitting & Exhaust

•  One Gas Inlet is installed on the rear panel of the furnace
• One Gas Exhaust port is built on the top of the furnace casing

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at an extra cost

• This furnace lacks vacuum sealing, and it is not recommended to use toxic and explosive gases in the furnace without safety controls and supervision.
• Minor cracks may appear on the refractory ceramics over extended use. It is normal and repairable, it can be repaired by alumina coating
• Alumina crucibles are available upon purchase
