1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X

KSL-1000X is an anti-corrosive muffle furnace with a hidden heating coil inside the ceramic chamber, which is designed to calcine some corrosive materials, such as sulfides and chlorides, up to 1,050ºC. The venting port is built on the top of the furnace for exhausting gas.

SPECIFICATIONS:

Furnace Structure	Double-layer structure with a cooling fan to keep furnace exteriors safe to touch Heavy-duty heating corundum chamber where the heating coil is inserted inside One venting port is built on top of the furnace Can processing corrosive material
Heating Chamber	Material: sintered corundum Dimensions: 12" D x 8" W x 5" H Heating element: FeCrAl coil inserted inside the chamber Three sides heating: left, right & bottom. K type thermal couple with alumina protection sleeve Venting port of alumina on the top of the chamber
Power	4 kW AC 208V-240V single phase, 50/60 Hz Note: Power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement
Working Temperature	Max. 1050°C ≤ 2 hours 1000°C continuously Temperature Accuracy: +/- 1° C Heating Rate: ≤ 10°C / min
Temperature Controller	FA-YD518P-AG temperature controller is included Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default RS485 PC communication port Thermocouple: K Type
Laptop & software (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) . *Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. Note:* The software is only compatible with MTI’s Temperature Controller
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at an extra cost
Application Notes	For preserving the longevity of the furnace life, we recommend the heating rate not to exceed 10°C /minThe cooling rate shall also not exceed 10 °C /min Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

$2,998.00

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X—

$2,998.00

More Images

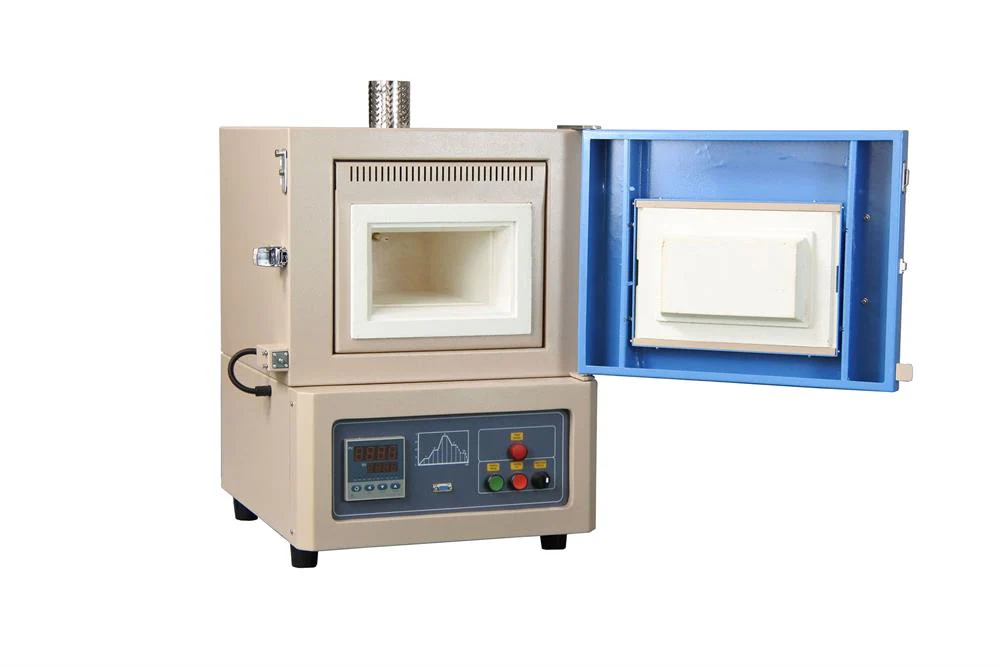

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X - Image 2

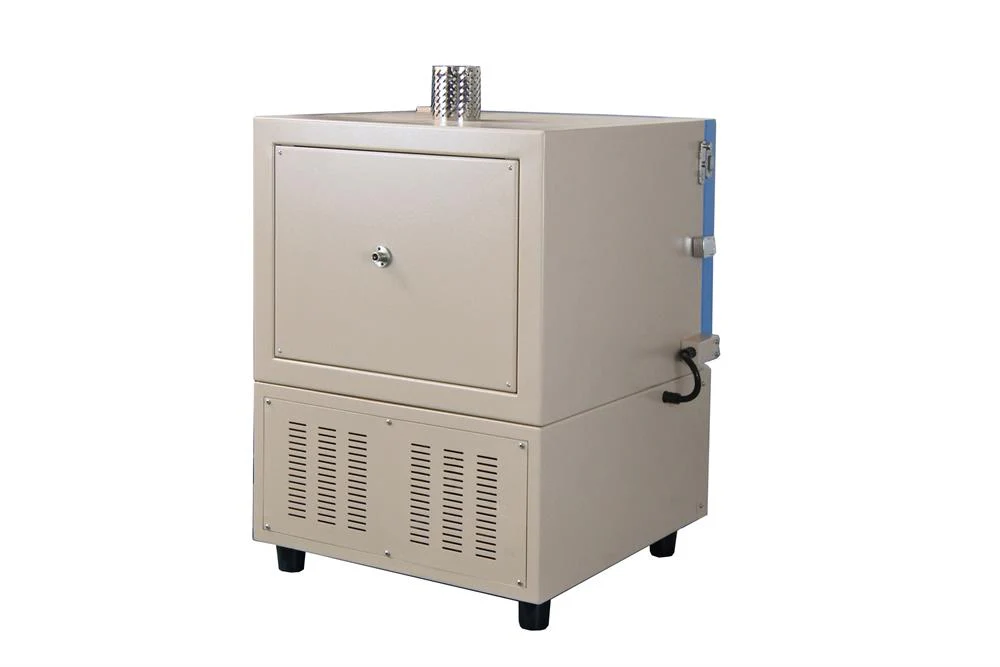

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X - Image 3

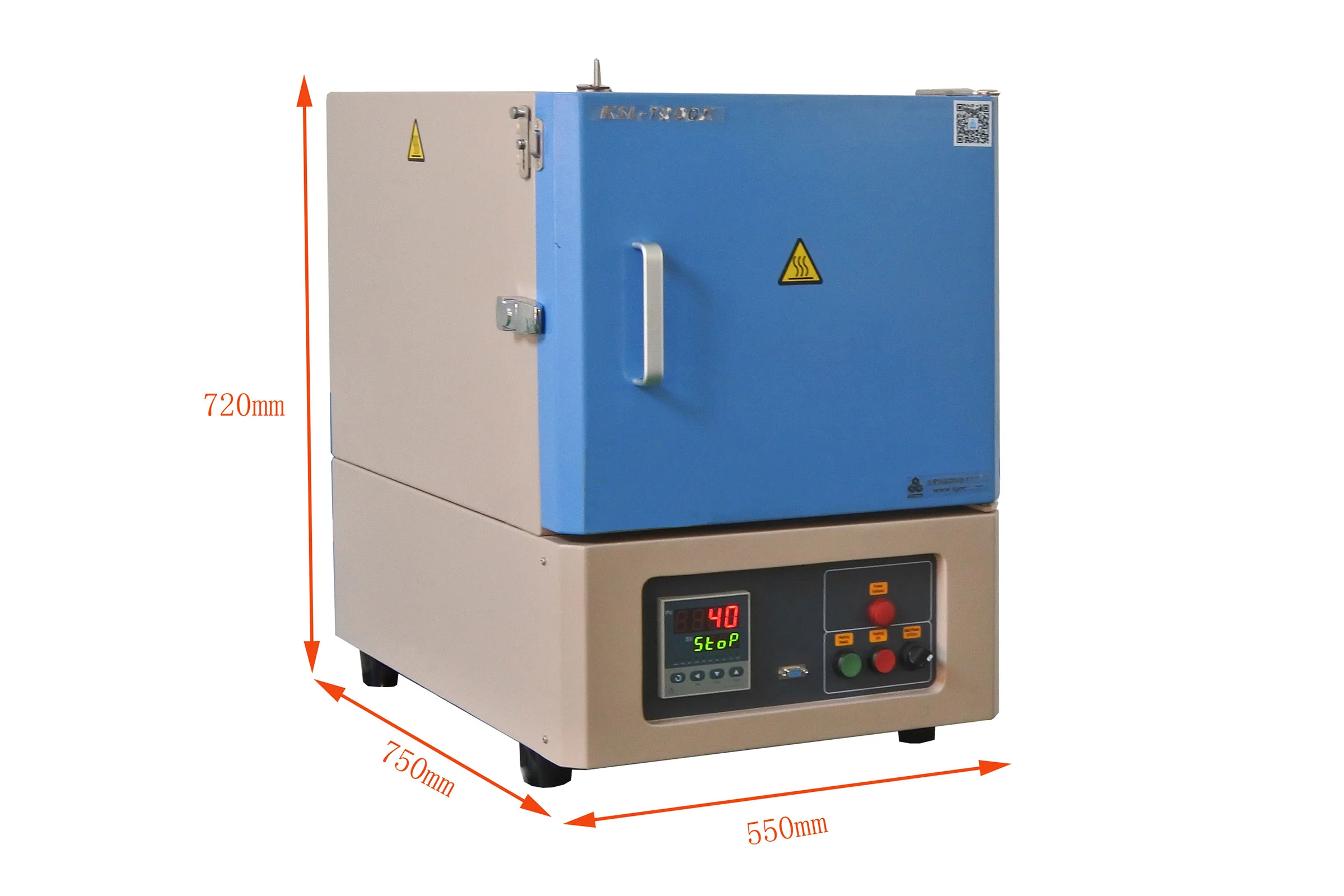

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X - Image 4

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL1000X

KSL-1000X is an anti-corrosive muffle furnace with a hidden heating coil inside the ceramic chamber, which is designed to calcine some corrosive materials, such as sulfides and chlorides, up to 1,050ºC. The venting port is built on the top of the furnace for exhausting gas.

SPECIFICATIONS:

Furnace Structure	Double-layer structure with a cooling fan to keep furnace exteriors safe to touch Heavy-duty heating corundum chamber where the heating coil is inserted inside One venting port is built on top of the furnace Can processing corrosive material
Heating Chamber	Material: sintered corundum Dimensions: 12" D x 8" W x 5" H Heating element: FeCrAl coil inserted inside the chamber Three sides heating: left, right & bottom. K type thermal couple with alumina protection sleeve Venting port of alumina on the top of the chamber
Power	4 kW AC 208V-240V single phase, 50/60 Hz Note: Power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement
Working Temperature	Max. 1050°C ≤ 2 hours 1000°C continuously Temperature Accuracy: +/- 1° C Heating Rate: ≤ 10°C / min
Temperature Controller	FA-YD518P-AG temperature controller is included Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default RS485 PC communication port Thermocouple: K Type
Laptop & software (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) . *Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. Note:* The software is only compatible with MTI’s Temperature Controller
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at an extra cost
Application Notes	For preserving the longevity of the furnace life, we recommend the heating rate not to exceed 10°C /minThe cooling rate shall also not exceed 10 °C /min Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Product Information

Shipping & Returns

Description

KSL-1000X is an anti-corrosive muffle furnace with a hidden heating coil inside the ceramic chamber, which is designed to calcine some corrosive materials, such as sulfides and chlorides, up to 1,050ºC. The venting port is built on the top of the furnace for exhausting gas.

SPECIFICATIONS:

Furnace Structure	Double-layer structure with a cooling fan to keep furnace exteriors safe to touch Heavy-duty heating corundum chamber where the heating coil is inserted inside One venting port is built on top of the furnace Can processing corrosive material
Heating Chamber	Material: sintered corundum Dimensions: 12" D x 8" W x 5" H Heating element: FeCrAl coil inserted inside the chamber Three sides heating: left, right & bottom. K type thermal couple with alumina protection sleeve Venting port of alumina on the top of the chamber
Power	4 kW AC 208V-240V single phase, 50/60 Hz Note: Power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement
Working Temperature	Max. 1050°C ≤ 2 hours 1000°C continuously Temperature Accuracy: +/- 1° C Heating Rate: ≤ 10°C / min
Temperature Controller	FA-YD518P-AG temperature controller is included Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default RS485 PC communication port Thermocouple: K Type
Laptop & software (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) . *Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. Note:* The software is only compatible with MTI’s Temperature Controller
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at an extra cost
Application Notes	For preserving the longevity of the furnace life, we recommend the heating rate not to exceed 10°C /minThe cooling rate shall also not exceed 10 °C /min Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
