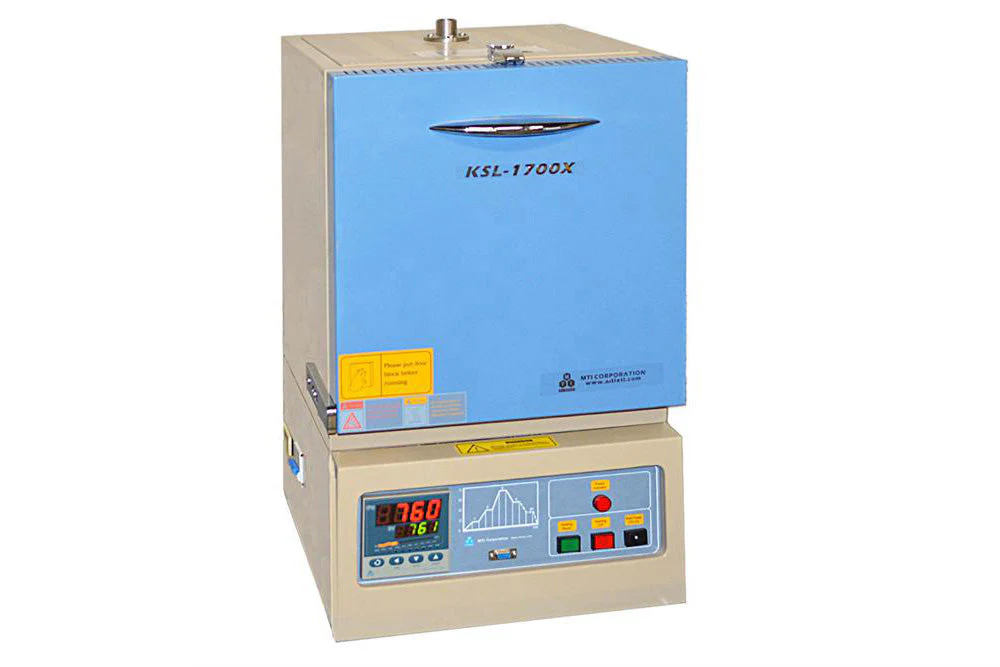

1750C Compact Muffle Furnace (4.7"x4.7"x4.7",1.7L) with Kanthal Super-1800 Heating Element - KSL-1700X-KS

Furnace Structure

• High purity alumina fiber chamber with ZrO2 coating to ensure continuous temperature at 1700°C (up to 1750°C Max)
• Double layer steel structure with air cooling fan to keep case temperature low
• Gas inlet and venting port are installed for using at riched oxygen or inert gas atmospheres ( Not Airtight sealed)
• Drop down door design for easy sample loading

Power

• 2.5 KW (Max)
• <1.5Kw if heating rate at 10°C/min

Voltage

Standard Working Temperature

1720^oC (continuous)

Maximum Working Temperature

Heating Rate

Temperature Accuracy

Temperature Uniformity

Heating Elements

Thermocouple

Temperature Controller

• YD518X3 temperature controller is included.
• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default DB9 PC communication port
• MET Certified

Optional Upgraded Temperature controller

• The furnace can be upgraded to Eurotherm 3004,  which is fully compatible with LabVIEW. This package includes a Eurotherm 3004 programmer, a communication cable (RS485-USB), and the software.

Optional Laptop, software & WiFi Control

• Brand new laptop with Microsoft Windows 11 for immediate use.
• LabVIEW-based temperature Control System (EQ-MTS01) enables the user to edit the temperature profile, manage heat-treatment recipes, record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.
• The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.

• 10 feet length 14-3 AWG heavy-duty UL-approved power cable is included
• The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link left (30A plug)

• CE Certified
• The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost. please click marks below to learn details )

• For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
• The cooling rate shall also not exceed 10 °C /min.
• This furnace lacks vacuum sealing; toxic or explosive gases are not recommended for use with this furnace without the necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please click here to learn how to DIY gas purging system.
• The refractory block must be inserted before closing the door.
