1200°C Max. 5-side Heating Muffle Furnace (20x20x20", 125L) w/ Optional Alloy Chamber - KSL-1200X-MAX
HomeStore

1200°C Max. 5-side Heating Muffle Furnace (20x20x20", 125L) w/ Optional Alloy Chamber - KSL-1200X-MAX

1200°C Max. 5-side Heating Muffle Furnace (20x20x20", 125L) w/ Optional Alloy Chamber - KSL-1200X-MAX

KSL-1200X-MAX is a 5-side heating muffle furnace (20x20x20") with a working temperature of up to 1200 degrees. The 5-side heating chamber with freestanding heating elements provides better temperature uniformity, a higher heating rate, and reduces the downtime of heating element replacement. It is a perfect instrument for sintering and annealing large quantities of metals and ceramics. The optional refractory alloy chamber provides an economical approach to anneal samples in a controlled atmosphere, limiting cross contaminations, and especially removing binders in ceramics without contamination.

SPECIFICATIONS

Power
  • Power: 12 kW, three-phase, 380 VAC (40 A power outlet is recommended)
  • Other voltage ratings are available upon request.
  • A power cord is included, but without power plug.

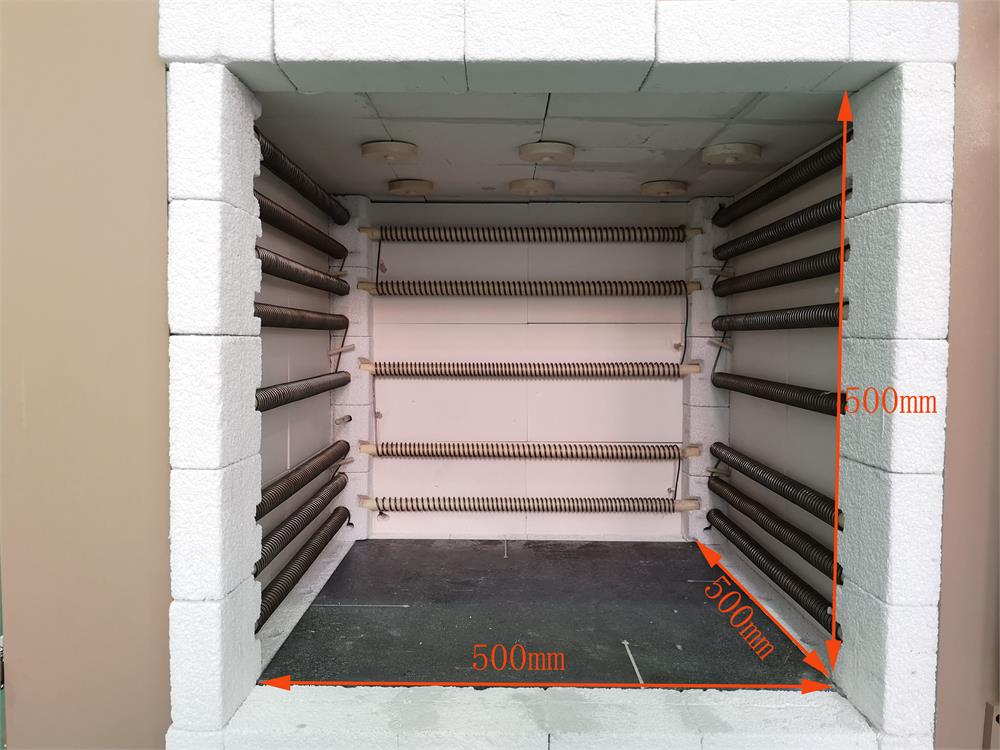

Heating Chamber
  • Size: 20" x 20" x 20" ( 500 x 500 x 500 mm)
  • Capacity: 125 liters
  • Uniform temperature zone: 200x200x200mm +/- 2ºC
  • Heating element: Freestanding Ni-Cr-Al wire
  • Thermocouple: K type
  • Double-sided alloy casing with cooling fans.
    The surface temperature of the furnace is less than 40°C @ 1000°C in the furnace.
Working Temperature
  •  Working Temperature:
    • 1200 °C continuously without an alloy chamber
    • 1000°C continuously with an alloy chamber
    Heating rate:
    • 10°C/min (recommended)
    Stability:
    •   ±1 °C

Temperature Controller
  • The FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default RS485 PC communication port
  • Eurotherm temperature controller with +/- 0.1 accuracies is available at the extra cost

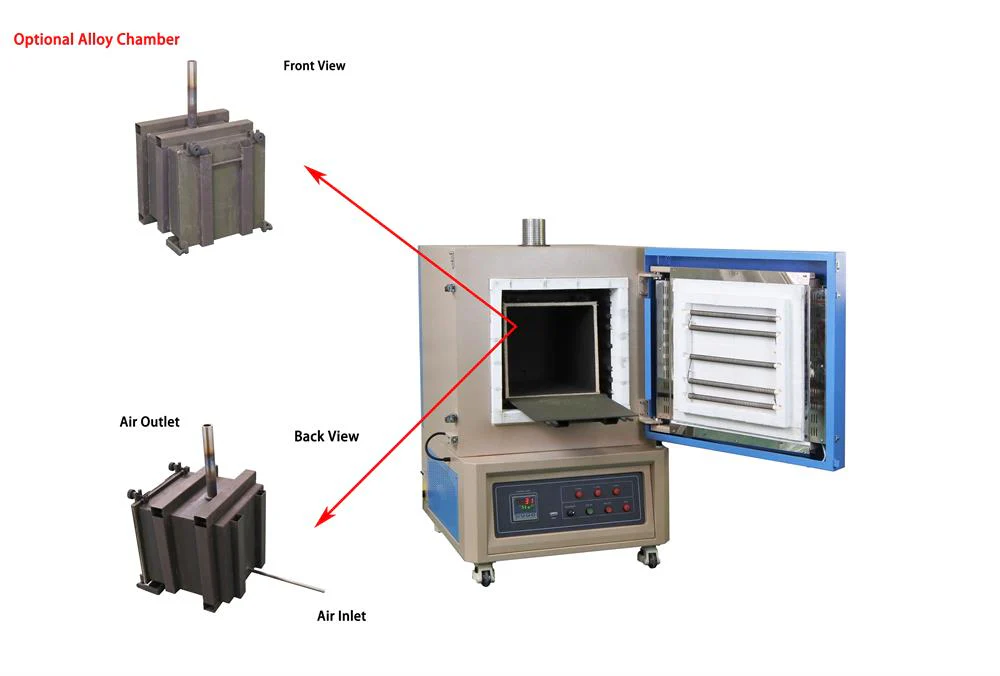

Refractory Alloy Chamber for Debinding (Optional)

  • 310SS alloy chamber with a hinged door
  • Size: 415 D × 372 L × 372 W (mm)
  • Capacity: 57.4 Liter
  • 12.7 mm OD gas inlet tube is at the back of the furnace
  • 30 mm ID (40 mm OD) gas outlet tube is connected to the top of the furnace
  • K-type thermal couple is inserted into the inside chamber for temperature control
  • Max. working Temperature: 1000°C
  • Alumina fiber packing is installed as the door sealant.
  • Note:
    • This is not an airtight chamber. However, it prevents the majority of vapors
    • For oxygen-sensitive material, suggest use 5%H2 + 95% Ar to keep the sample from oxidation
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.



Select Furnace
From $8,399.30

Original: $23,998.00

-65%
1200°C Max. 5-side Heating Muffle Furnace (20x20x20", 125L) w/ Optional Alloy Chamber - KSL-1200X-MAX—

$23,998.00

$8,399.30

More Images

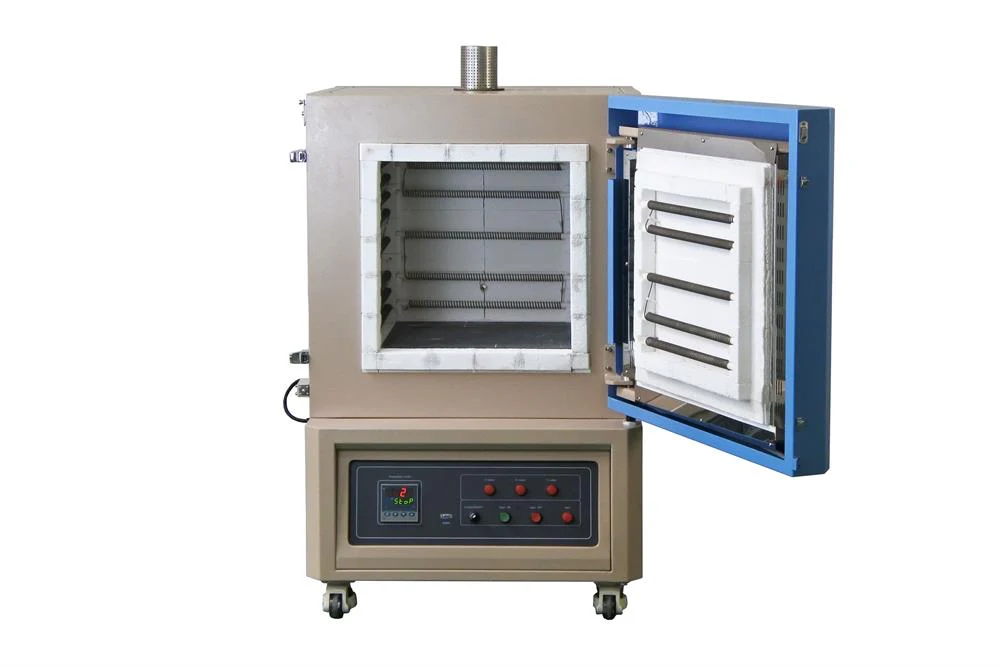

1200°C Max. 5-side Heating Muffle Furnace (20x20x20", 125L) w/ Optional Alloy Chamber - KSL-1200X-MAX - Image 2
