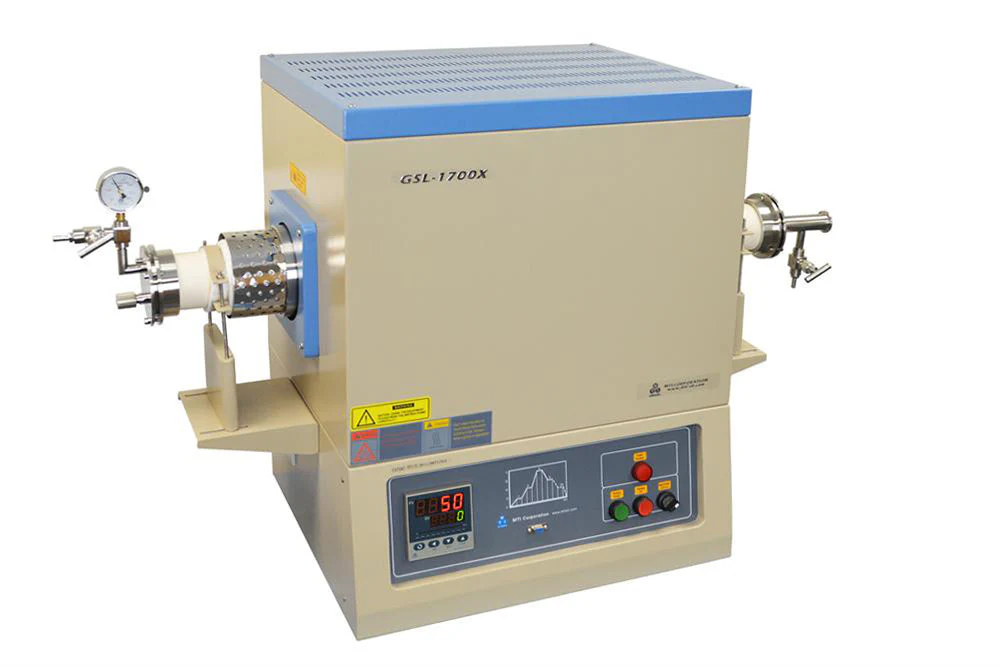

1700°C Tube Furnace w/ 18" heated Zone & 60 or 80 mm OD Alumina Tube and Flange - GSL1700X

• Double-layer steel casing with air cooling
• Two cooling fans inside to keep case temperature < 55ºC
• High purity Alumina refractory chamber
• One piece of High purity Alumina tube is included with optional dimension:
• 3.15" x 40" (80 OD x 74 ID x 1000 L) mm
• 2.38"x 40"L (60OD x 54ID x 1000L), mm
• The alumina tube is consumable and no warranty covered. Please click the picture to order spare

• PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired
• 30 programmable segments for precise control of heating rate, cooling rate and dwell time
• Please click here to learn why SCR is more accurate than SSC (Solid state relay)
• Built-in over-temperature alarm and protection allows for operation without the attendant
• +/- 1 ºC temperature accuracy
• RS485 Communication Port
• Optional:
  • 1 program, 24 segments programmed with ramping, cooling and dwelling steps
  • Temperature Accuracy: ± 0.1ºC
• The furnace may be operated by PC by installing a control module. Please order an MTS-02 control module at extra cost.
• If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer (laptop) from us to avoid software installation problems. For more information please click here.
• Eurotherm 3000 Series Programmable Temperature Controller is available at the extra cost with

• One pair of sealing flanges with double silicone high-temperature O-rings is included
• Two SS needle valves and one dial vacuum gauge are installed on flanges for immediate use

• Standard 1/4‘’ Barbed fittings with needle valves
• For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order
• Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order
• Optional: You may also consider using the parts in below to increase the vacuum efficiency
• Please click here to order digital vacuum gauge for precision vacuum control up to 10^-4 torr (see picture below and click to enlarge)
• You may click here to order flow-meter and install in tube flange (see picture below)
• KF25 Stainless steel Bellows
• KF25 Quick Clamps

• Limited by the vacuum pump
• 50 mtorr can be achieved by the mechanical pump
• 10^-5 torr can be reached by molecular pump
•
• The vacuum pump is not included, please order separately at the related products section

• 10 feet length 10-3 AWG heavy duty UL approved power cable is included. Extra length cable can be ordered by click the picture below-left
• The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
• Labview Based Temperature Control System (MTS01)enables the user to edit temperature profile, manage heat-treatment recipe, record, and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.
• The above features are available upon request at an extra cost (up to $1,000).

• CE Certified
• NRTL or CSA certification is available upon request at extra cost.

• In order to obtain accurate temperature inside the tube furnace, you need to perform a temperature calibration before use, please click here to learn how.
•  Vacuum pressures may only be safely used up to 1500°C
• The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 MPa (absolute pressure)
• Attention: it is necessary to install the gas pressure regulator to reduce the output pressure 3 PSI, avoid overpressurizing the furnace chamber, and ensure safe operation. Click here to learn the installation of a gas regulator.
• The flow rate for gases should be limited to < 200 ml/min) for reducing thermal shocks to the tube

Two fibrous ceramic tube blocks are included for blocking heat radiation from inside the tube (Ceramic blocks must be fully inserted into the furnace chamber before heating).
