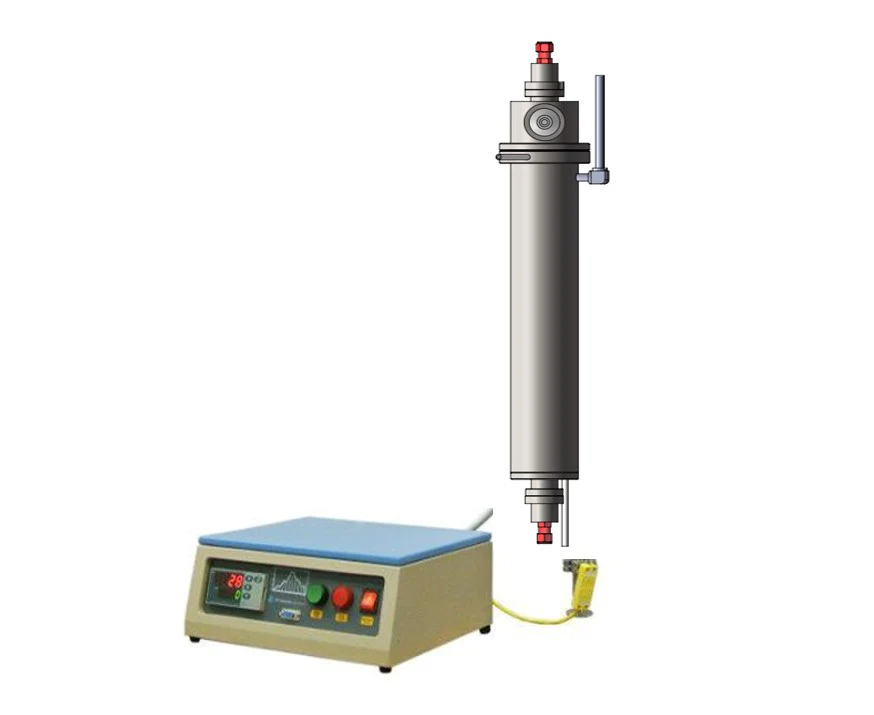

1100℃ Max. 100mm O.D / 25 mm I.D Tube Furnace for High Magnetic Field - GSL-1200X-MH100

• 208 - 240VAV or 480VAC, 3 ph, 50/60Hz,
• DC output
• 10 kW


 Working Temperature

• 1100 ℃, continuously


Heating Area

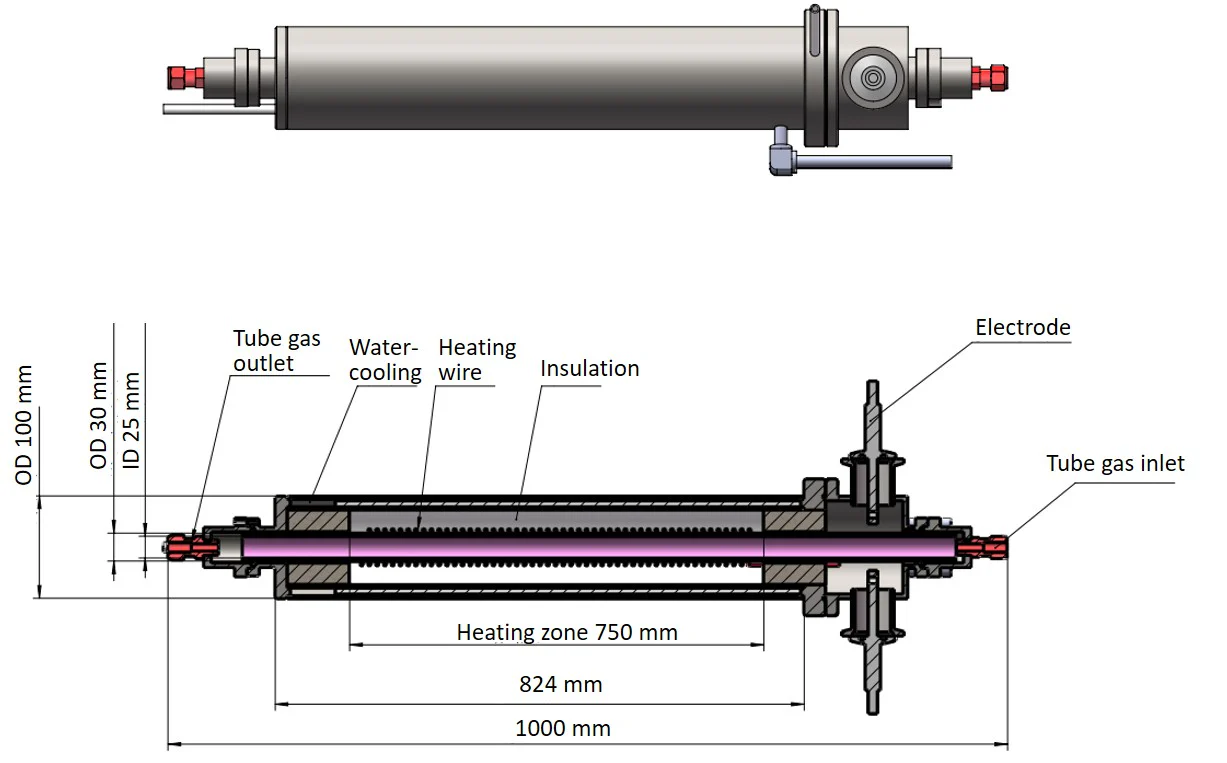

• 750 mm heating length
• 250 mm @ ±5 °C uniform heating zone

Heating Rate

• Heating rate: ≤ 10 ℃/min

Temperature Controller

• Eutothermo-3000 PID programmable temperature controller
• 50 programmable segments
• Overheating and TC failure alarm
• Temperature control accuracy: +/- 0.1 °C
• One temperature monitor is built to keep the tube surface temperature < 70 °C
• RS-485 remote communication interface


Thermocouple

• S-type thermocouple for temperature control of the processing tube
• T-type temperature sensor for monitoring tube surface temperature

 Heating elements

• Double coins made of Mo resistance wire

• Only use under an inert gas atmosphere!

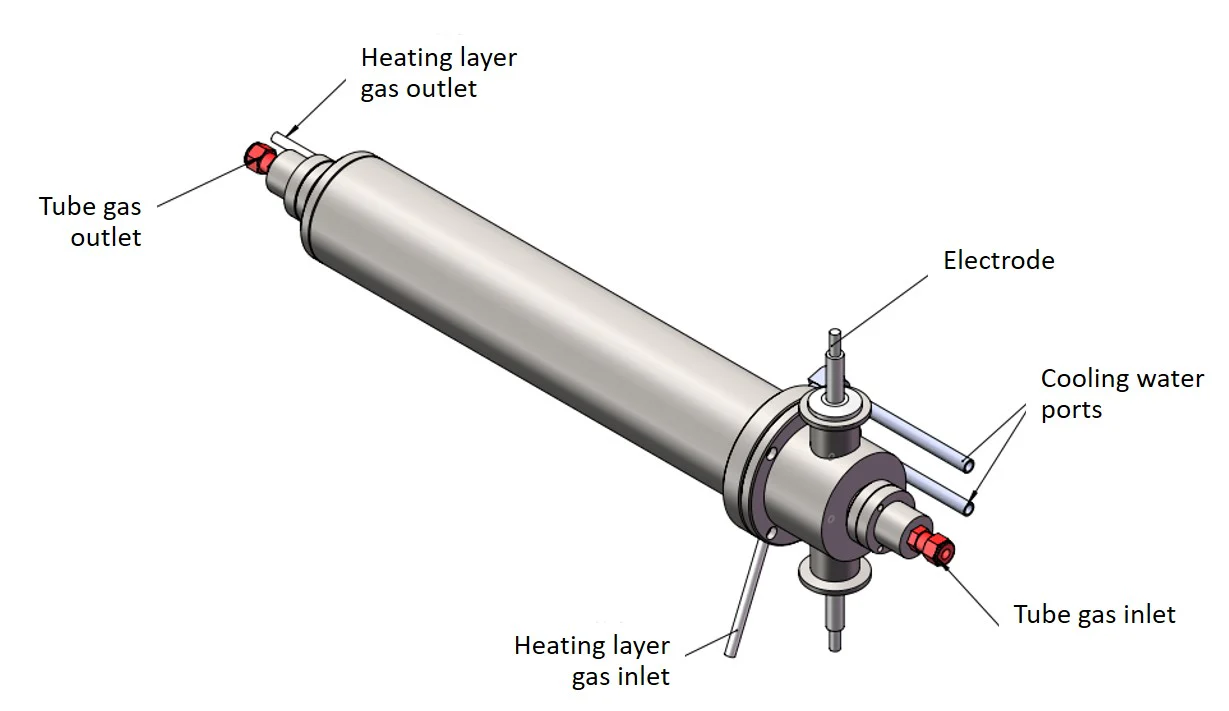

Processing Tube

• Ø30 × Ø25 × 1000 mm quartz tube

• A pair of SS316 flanges for hermetic operation.
• 1/4" compression tube fittings (SS316) for gas inlet and outlet


• < 3 psig

DC Power Supply

• 10 kW DC programmable power supply
• Regulated power output 0-24VDC

Chilled Water

• Water cooling is required to keep the furnace surface temperature <25°C
• MTI highly recommends getting a KJ5300 recirculating water chiller or equivalent

 Vacuum Pump

 (Optional)

• A vacuum pump is optional to quickly evacuate residual air in the processing tube.
• 50 mtorr can be achieved by a mechanical pump

 Gas Plumbing

• A schematic gas diagram is recommended as follows

•

• CE Certified
• NRTL certification is available upon request.

• One-year limited warranty
