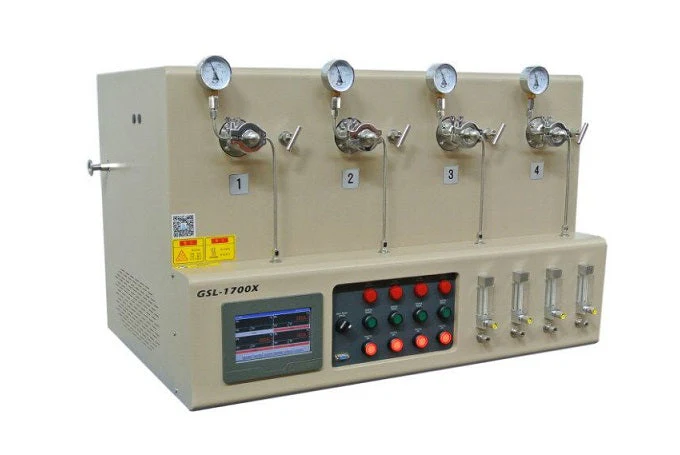

1700°C 4 Channel Tube Furnace (1" Alumina Tube) for Hi-Throughput Annealing - GSL-1700X-MGI-4

1700°C 4 Channel Tube Furnace (1" Alumina Tube) for Hi-Throughput Annealing - GSL-1700X-MGI-4

1700°C 4 Channel Tube Furnace (1" Alumina Tube) for Hi-Throughput Annealing - GSL-1700X-MGI-4

GSL-1700X-MGI-4 is an integrated four channels 25mm O.D. tube furnace for high throughput heat treatment research for alloy and ceramic materials up to 1700°C. Given the compact design, it save a lot of lab space.

SPECIFICATIONS

Furnace Structure	4 tube furnace modules with alumina tubes of 25 OD x 22 ID x 460 L (mm) Independent temperature control up to 1700°C for each module. Hermetic flanges, Pressure gauges, flow meter, and vacuum ports are all included ready for use. Compact size with a footprint of only 1000×650 mm.
Power	208 - 240VAC, 1 ph., 50/60Hz, 30 A, 6 kVA 10-foot power cord.
Working Pressure	< 3 psig
Working Temperatures	<1600°C, continuous @ ambient pressure <1700°C < 1 hr @ ambient pressure <1500°C under vacuum
Heating Length	150 mm
Uniform Temperature Zone	+/- 5°C @ 60 mm @ 1400°C
Heating Rate	< 10°C/min
Heating Elements	MoSi2 heating elements (40mm x147mm) 4 heating elements for each channel, a total of 16
Processing Tube	Alumina tubes, 25 OD x 22 ID x 460 L (mm)
Temperature Control	Touch screen panel 30-segement PID temperature controllers Interlocks for overheating and thermocouple failure Temperature stability < ±1°C
Thermocouple	B type, alumina sheath
Heating Rate	10 °C/ min Max.
PC Communication Remote Control	RS-485 serial port Complementary MTS-03 LabVIEW based temperature control software to edit temperature profiles, manage recipes, and data logging.
Vacuum	<5e-2 torr @ ambient temperature (Optional) 156 L/min rotary vane pump for all four channels.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.

$10,149.30

Original: $28,998.00

-65%

1700°C 4 Channel Tube Furnace (1" Alumina Tube) for Hi-Throughput Annealing - GSL-1700X-MGI-4—

$28,998.00

$10,149.30

More Images

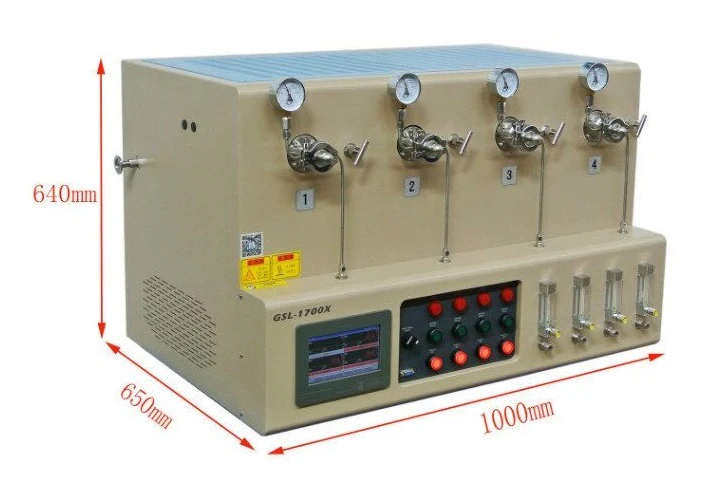

1700°C 4 Channel Tube Furnace (1" Alumina Tube) for Hi-Throughput Annealing - GSL-1700X-MGI-4 - Image 2
