1500C Max. Compact Tube Furnace (2" O.D ) with Complete Accessories - GSL1500X50
HomeStore

1500C Max. Compact Tube Furnace (2" O.D ) with Complete Accessories - GSL1500X50

1500C Max. Compact Tube Furnace (2" O.D ) with Complete Accessories - GSL1500X50

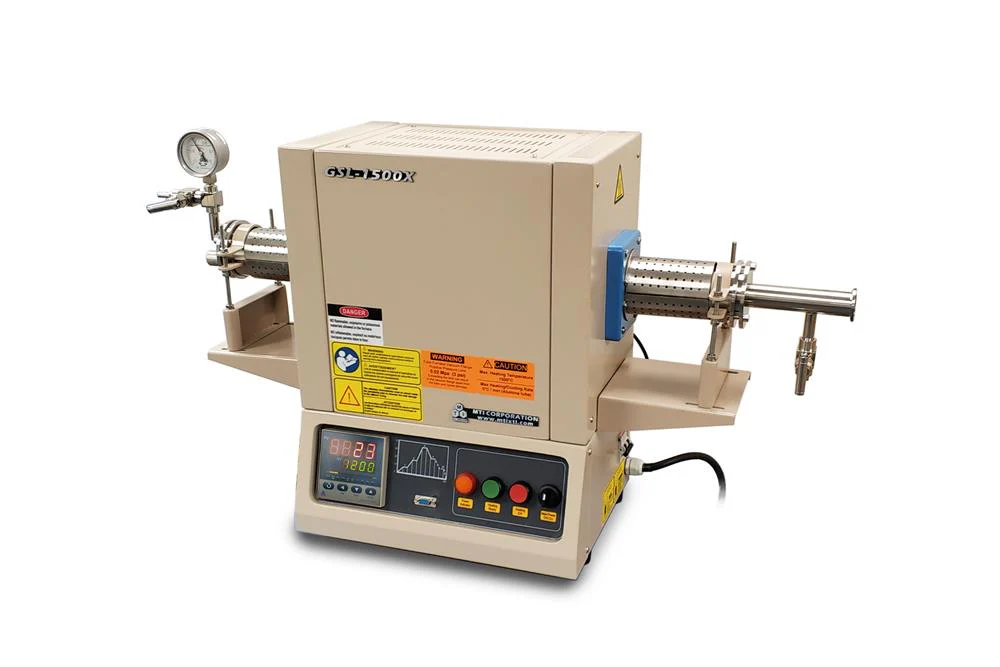

GSL-1500X-50-UL is a compact high-temperature 2" O.D. tube furnace using 99% High Purity processing tube and SiCĀ heating elements as heating elements. A Vacuum sealing assembly is included to connect with a 1/4" gas hose. The temperature of the GSL1500X tube furnace is controlled by a high-precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1Ā°C and 30 segments programmable up to 1500Ā°C.Ā

SPECIFICATIONS:

Furnace Structure
  • Double-layer steel casing with two air cooling fans.
  • High-purity fiber alumina board chamber for the best energy saving.
Power
  • Single Phase, 208 - 240V AC, 50/60 Hz.
  • 2.5 KW Max.(20A breaker required)
  • Power cable included, but no plugĀ

Alumina Process tube
  • 2" x 27" (50.8 OD x 42 ID x 700mm L) 99.5% High Purity Alumina processing tube.
  • Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube.
    (Ceramic blocks must be fully inserted into the furnace chamber before heating)

  • Alumina Foam Block: 62 mm Diameter (one pair) for MTI's 70mm Dia Tube Furnace - EQ-F-T-block-62 Ā  Ā  Ā  Ā  Ā  Ā

Vacuum Flange
&Ā
Optional parts
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring is Included
  • Two-needle valves with a 1/4" pipe adapter are installed with the flange
  • 2" defaultĀ flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portļ¼ˆclick bottom right pictureĀ to see details )
  • One Vacuum/Ā pressureĀ gauge is installed on one side of the flange
  • The angle valve is not included; please order it at an extra cost if needed.
  • The vacuum level can reach 10-2 torr by a quality mechanical vacuum pump and 10-5 torr by a molecular pump.
  • Ā  Ā  Ā  Ā  Ā  Ā

Pressure Measurement / Monitoring

Mechanical Vacuum Gauge (included ļ¼‰
This mechanical vacuum gauge measures within a pressure range of -0.1 to 0.15Mpa.

 Digital Pressure GaugeĀ (optional)
A gas-type independent (above 10 m-bar) digital vacuum gauge with a wide range between 3.8x10-5 to 1125 Torr.Ā

Working Temperature
  • 1500 Ā°C short time (less than 60 mins)
  • 1400 Ā°C Continuous

Temperature Controller
  • FA-YD518P-AGĀ temperature controller is included.
  • Proportionalā€“integralā€“derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ĀŗC temperature control accuracy

Recommended Heating Rate:
  • 10Ā°C / min (RT~1000Ā°C)
  • 5Ā°C / min (1000Ā°C~1500Ā°C)
Heating Zone
  • Heating Zone Length: 6" (152 mm)
  • Constant Temperature Zone: 60 mm (+/- 3Ā°C)
  • Temperature Accuracy: +/- 1.0Ā°C

Heating Element:
  • SiC rods, 4 pcs
  • The heating element is consumables. Please click the picture below for detailed specs and order spare.
  • For the SiC heating element, the Resistance change with life, please replace the aging rod properly.

Laptop, software & WiFi Control (Optional)

Ā
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (EQ-MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000).Ā

Compliance
  • CE Certified
  • NRTL(UL61010) orĀ CSAĀ certification is available at extra cost.
Attention Notes Performance degradation (i.e. furnace cannot reach the maximum temperature of 1500Ā°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements if the above symptoms were seen. Please order the replacements from the standard package list in below.

Warnings

Ā  Ā


Click here to learnĀ about the installation of a gas regulator.
  • The tube furnaces with alumina tubes are designed for use under vacuum and low pressure < 0.02 MPa
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.Ā Click here to learnĀ the installation of a gas regulator.
  • TheĀ flowĀ rateĀ forĀ gassesĀ shouldĀ beĀ limitedĀ to < 200Ā SCCMĀ ( orĀ 200ml/min )
  • Ā Vacuum pressures may only be safely used up to 1500Ā°C
STANDARD PACKAGE:
Part/No Descriptions Quantity Picture
GSL-34-01 1600Ā°C grade SiC rods4 pcs in the furnace 4 pcs
1500C SiC Electric Heating Element (413 mm L) - EQ-OTF1500-HEL-413
GSL-34-02 2-inch vacuum flange 1 set
GSL-34-03 Pt-Rh to Pt Thermal Couples (Ā S Type ) with Alumina Protective Tube 1 set
Thermal Couple: B type (Pt-Rh to Pt-Rh) 8.25" Length with Ceramic Sheath (Up to 1700C) - EQ-TC-B-SP-25TC
TA50D700 2" x 27" (50 OD x 42 ID x 700mm L) Alumina Ceramic Tube 1 pcs
2" x 27" (50 OD x 42 ID x 700mm L) Alumina Ceramic Tube - EQ-TA-50D-M700
GSL-34-05 Foam Al2O3 Tube Block 4 pcs
GSL-34-11 Stainless Steel Hook for moving the sample 1 pcs
