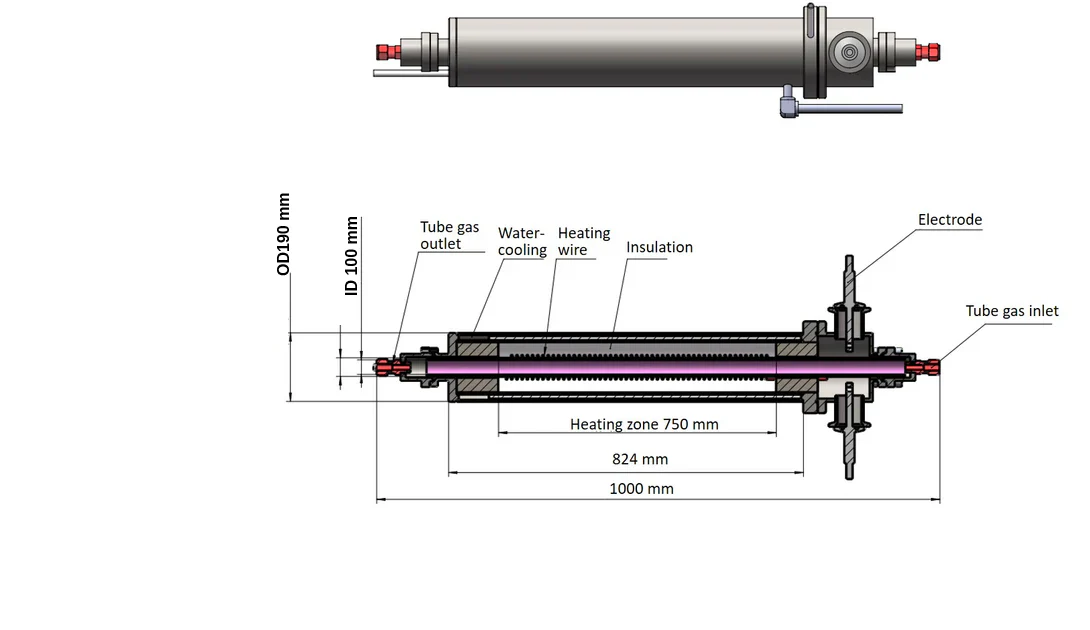

800℃ Max. 190mm O.D /100 mm I.D Tube Furnace for High Magnetic Field - GSL-800X-MH100

• 208 - 240VAV or 480VAC, 3 ph, 50/60Hz,

• 15KW
• 24V DC output

 Working Temperature

• 800 ℃, continuously


Heating Area

• 750 mm heating length
• 250 mm @ ±5 °C uniform heating zone

Heating Rate

• Heating rate: ≤ 10 ℃/min

Temperature Controller

• Eurithermo-3000 PID programmable temperature controller
• 50 programmable segments

• Temperature control accuracy: +/- 0.1 °C
• RS-485 remote communication interface

• One temperature monitor is built in to cut off power when the surface temperature of the processing tube is> 70 °C

Thermocouple

• S-type thermocouple for controlling the processing tube
• T-type thermal couple for monitoring the surface temperature of the tube

 Heating elements

• The dual spiral-wound heating coil is made of Mo resistance wire

• Only use under an inert gas atmosphere!

Processing Tube

• Quartz tube, Ø100 OD  × Ø90 ID  × 1000 mm

• A pair of SS316 flanges for hermetic operation.
• 1/4" compression tube fittings (SS316) for gas inlet and outlet


• < 3 psig

DC Power Supply

• 15 kW DC programmable power supply
• Regulated power output 0-24VDC

Chilled Water

• Water cooling is required to keep the furnace surface temperature <25°C
• MTI highly recommends getting a KJ5300 recirculating water chiller or equivalent

 Vacuum Pump

 (Optional)

• A vacuum pump is optional to quickly evacuate residual air in the processing tube.
• 50 mtorr can be achieved by a mechanical pump

 Gas Plumbing

(Optional)

• A schematic gas diagram is recommended as below
• Gas plumbing system is optional.
•

• CE Certified
• NRTL certification is available upon request.

• One-year limited warranty
• Extra warranty is available at a cost ( about 10% per year )

• A spare heating coil on quartz tube is available at an extra cost.
• The heating coil is easy to replace by the customer themselves
