300T Electric Cold Isostatic Pressing (CIP) with ID 80 mm Die and Programmable Control Panel up to 500 MPa - YLJCIP300
HomeStore

300T Electric Cold Isostatic Pressing (CIP) with ID 80 mm Die and Programmable Control Panel up to 500 MPa - YLJCIP300

300T Electric Cold Isostatic Pressing (CIP) with ID 80 mm Die and Programmable Control Panel up to 500 MPa - YLJCIP300

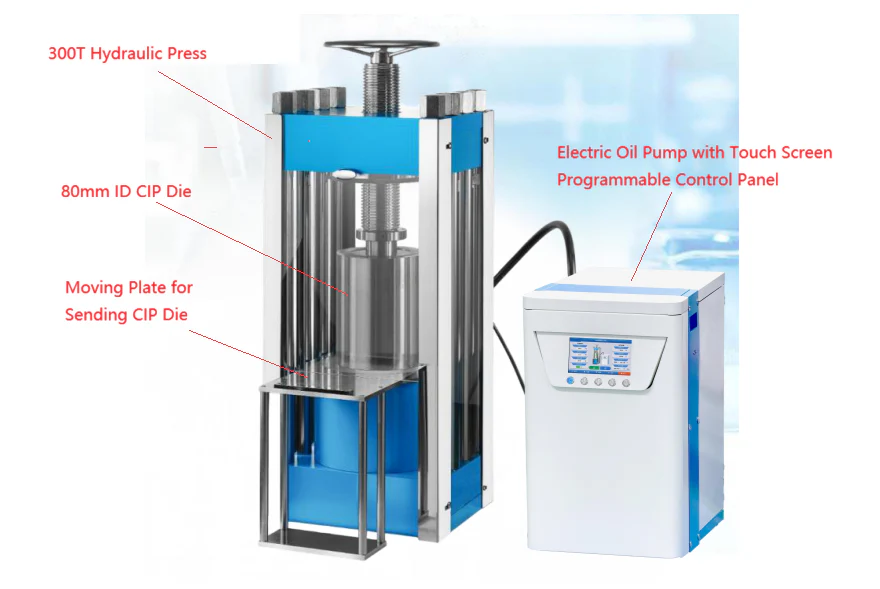

YLJ-CIP-300  is an electric cold isostatic pressing (CIP) machine with 80mm ID 50 Mpa pressure vessel CIP via a separated 300T electric hydraulic pump and touch screen panel.   It is an excellent tool for preparing many high-density ceramic rods, disks, or targets. compared to dry die pressing.

SPECIFICATIONS:

Hydraulic Press
  • Max. 300 Metric Tons
  • Digital pressure display (unit KN)
  • 10 - 300T adjusted by touch screen panel
  • Pressure accuracy:  0.01 T
  • The digital control panel can program multi-segment pressure, pressing speed, and dwell time
Electric Hydraulic Pump Station
  • An electric hydraulic pump station is in a separate box
  • Standard: 220V±10% AC (single phase, 50/60Hz)
  • 1500 W
  • Optional: 110V to 220V transformer for using under 110V

 CIP Vessel
  • Vessel is made of a strong alloy with an SS sleeve
  • Vessel I.D: 80 mm
  • Max pressure:  500 MPa
  • A heating jacket  with temperature controller for WIP is available up to 150 °C  at an extra cost
Pressure Controller

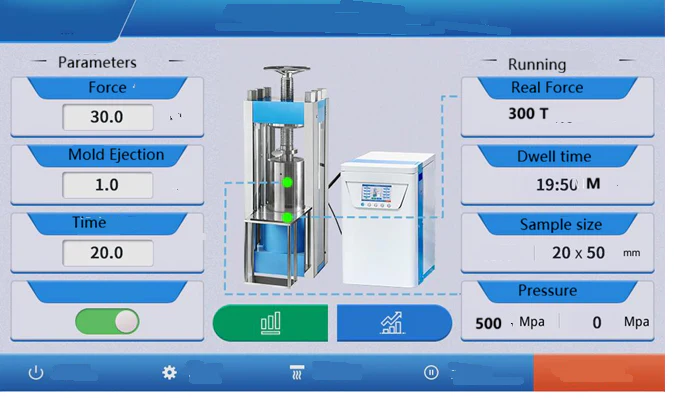

  • 7" touch screen control panel, which can program all parameters:
    • Pressing speed
    • pressure segments
    • Pressure dwell time
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 20 mm
  • Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height
  • 310 mm
Working Space
  • Top & Bottom working plate: 240 Lx 240 W x 300 H, mm
Moving Plate
  • The CIP vessel is to be placed on the plate.
  • The Vessel can be moved in or out of the pressing machine center by hand wheel ( please see video)
Press Cover
  • A metal door with a magnetic door latch
  • Note: For safety, please close the door before operating
 Dimension & Weight (net and packed)
  •  Pressing machine:  480 x 600 x 1200 (LXWXH) / 2480 kg / 2532 kg
  • Control unit: 350 x 460 x 480 mm (KXPXH) / 109 kg / 126 kg
Compliance
  • CE Certified
  • NRTL (UL or CSA) Certification is available upon request at an extra cost
Application Notes
  • Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • Pic. 1  Pic. 2  3



$66,998.00
