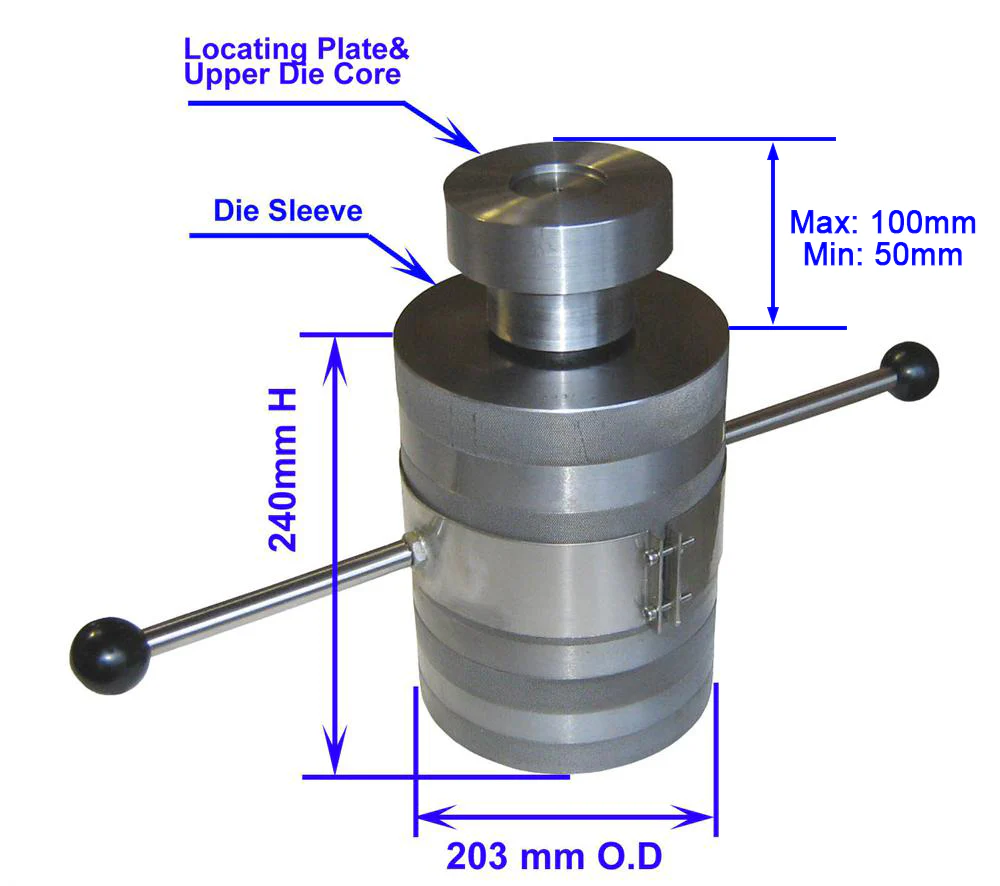

500 MPa CIP Die Set ( 30 or 50 mm ID.) for Cold Isostatic Press - CIP500-DIE

CIP500-DIE is 500 Mpa ultrahigh-pressure CIP Die Set. It is selectable for two kinds of chamber: size: 30mm ID x110mm or 50mm ID x150mm H. It can provide isostatic hydraulic pressure up to 500 MPa via a hydraulic press. It is an excellent tool for the material research lab to prepare high-density compound samples at ease.



Pressure Vessel Size	Two kinds of the chamber: (pressing die cavity) 30mm ID. x 110mm Height  51mm ID. x 150mm Height ( Effective depth ~70 mm ) ID tolerance : +/- 0.01 mm
Max. Hydraulic Pressure in Chamber	500 MPa
Material	Cr12MoV
Rubber O-ring	Special rubber O-ring is consumable 20 pcs O-ring is included for each die
Hydraulic Machine	37 T for 30 mm ID 98 T for 50 mm ID For safety reasons, the die only supply the customer who uses MTI CIP pressing machine
Operation Temperature	10 - 40°C
Maximum pressure holding time	5 minutes (The time starts from the press reaches the target pressure value and ends by releasing the pressure)
Application Notes	You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.  You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order) You may use the machine as a dry pressing to order pressing die (click Pic below right) Pic. 1  Pic. 2 Pic. 3
Warning	Never let the press hold the target pressure be longer than 8 minutes, It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period. Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing If you order the die only and use your own press machine, MTI is not responsible for the safety
