Complete CIP Die Set (110 mm ID, Max. 350 MPa Vessel) for Cold Isostatic Press - CIP110D350

Complete CIP Die Set (110 mm ID, Max. 350 MPa Vessel) for Cold Isostatic Press - CIP110D350

Complete CIP Die Set (110 mm ID, Max. 350 MPa Vessel) for Cold Isostatic Press - CIP110D350

EQ-CIP110-DIE is a Complete CIP Die Set (Max. 350 Mpa Vessel) for Cold Isostatic Press, which has a chamber of 110 mm ID x 80 mm effective depth a. It is an excellent tool for preparing Max. 4" dia. x 3" H sample with a much high-density.

Specifications:

CIP Vessel size

110 mm I.D. x 210 mm Deep.
Effective sample Deep: 80 mm Max.

Vessel Pressure

Material: 2Cr13 alloy
Pressure Range: 0 - 350 Mpa
Pressure Speed: Mpa / min
Pressure force required: 335 T ( Max)
O-ring is consumable
10 pcs O-rings are included

Note

Never let the press hold the target pressure be longer than 8 minutes
It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period
Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing
You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
You may use the machine as a dry pressing to order pressing die (click Pic below right)

Pic. 1

Pic. 2 Pic. 3

Packing List:

Name	Qty
1	CIP pressing die	1 set
2	Black Rubber Rings O.D 110 mm	10 pc
3	Holding bar (for carrying the CIP pressing die)	2 pc
4	Pressing oil	1 bottle
5	Hex-socket wrench (for the top pressing die and degassing)	1 pc

$6,649.30

Original: $18,998.00

-65%

Complete CIP Die Set (110 mm ID, Max. 350 MPa Vessel) for Cold Isostatic Press - CIP110D350—

$18,998.00

$6,649.30

More Images

Complete CIP Die Set (110 mm ID, Max. 350 MPa Vessel) for Cold Isostatic Press - CIP110D350 - Image 2

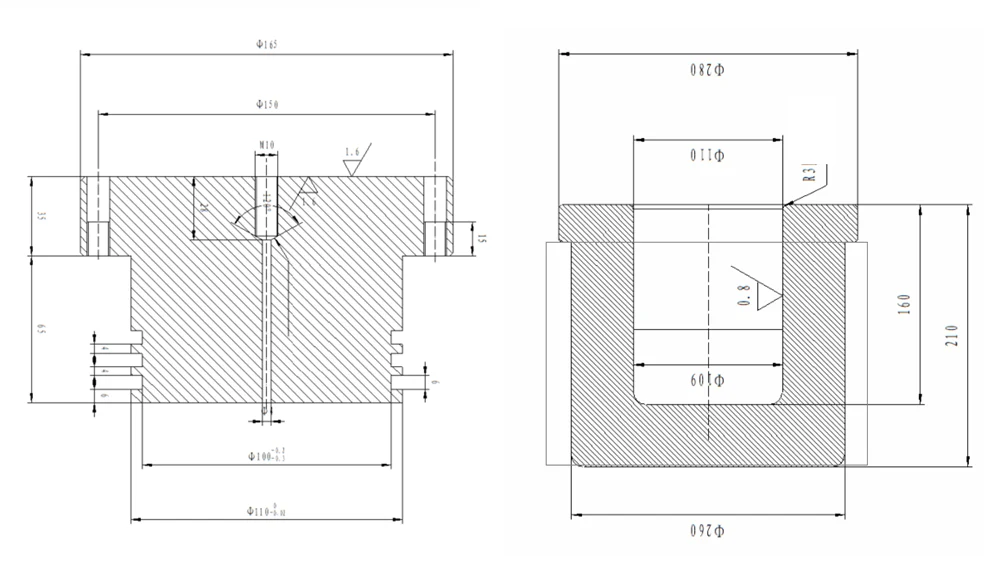

Complete CIP Die Set (110 mm ID, Max. 350 MPa Vessel) for Cold Isostatic Press - CIP110D350 - Image 3
