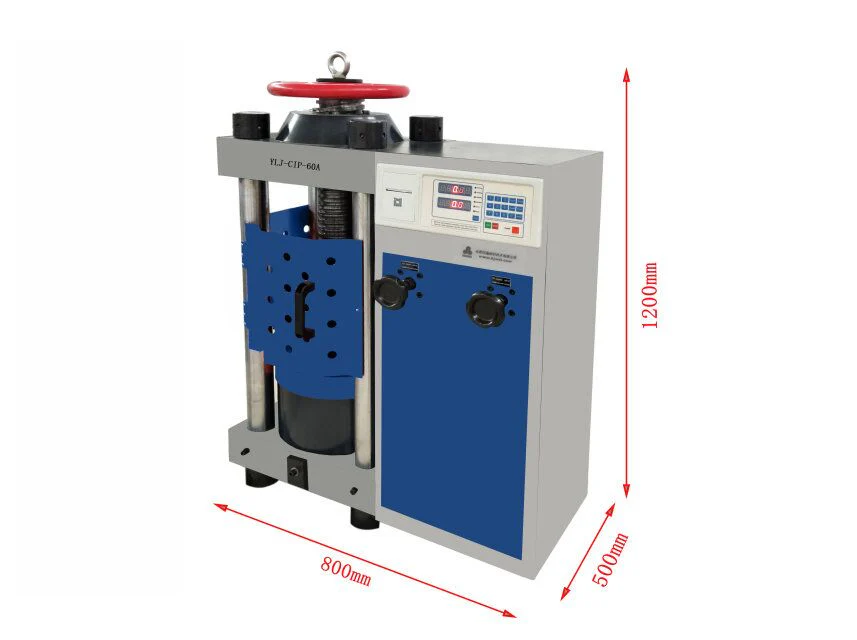

200T Electric Cold Isostatic Pressing (CIP) with ID 60/80 mm Vessel - YLJ-CIP-200

YLJ-CIP-AXX is an electric cold isostatic pressing (CIP) machine operated via a 200T electric hydraulic pump with optional 60 and 80mm ID CIP vessels It is an excellent tool for preparing many high-density ceramic rods, disks, or targets. compared to dry die pressing.

SPECIFICATIONS:

Hydraulic Press	Max. 200 Metric Tons Digital pressure display (unit KN) 10 - 200T adjusted by manual ON/OFF valve Display real pressure on the sample based on die size Pressure accuracy: +/- 1% by adjusting the hydraulic oil valve
Electric Hydraulic Pump	Standard: 220V±10% AC (single phase, 50/60hz) 750W AC motor Optional: 110V to 220V transformer for using under 110V
Pressure Controller	Digital control panel Built-in paper printer to print out strength data
Bottom Hydraulic Cylinder Travel Distance	0 - 20 mm Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height	310 mm
Working Space	Top & Bottom working plate: 240 Lx 240 W x 300 H, mm

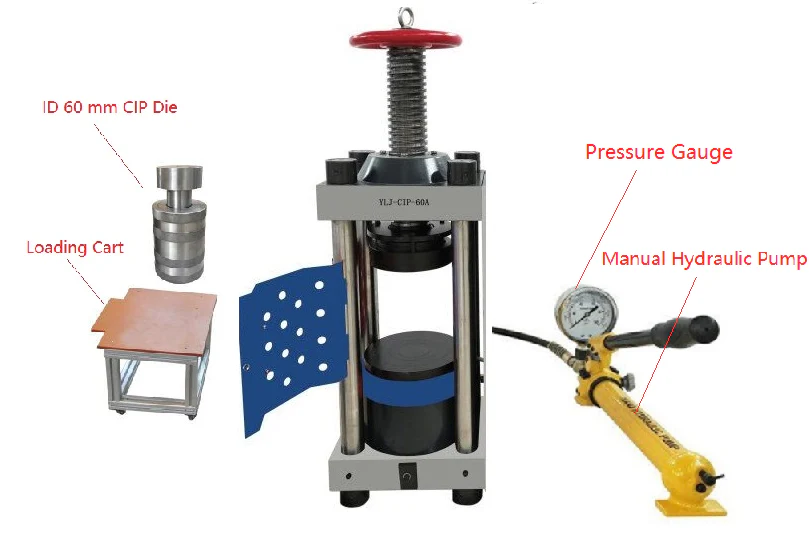

Moving Cart	The Cart for the CIP Die moving is included
Press Cover	A metal door with a magnetic door latch Note: For safety, please close the door before operating
Optional CIP Die	The optional die is available for this 200T hydraulic press The ID of CIP Die (mm) 60 80 Max. Pressure (MPa) 400 300 Max Force to apply ( T) 113.1 T 150.7 Click Pic to order
Compliance	CE Certified NRTL (UL or CSA) Certification is available upon request at an extra cost
Application Notes	You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.  You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order) You may use the machine as a dry pressing to order pressing die (click Pic below right) Pic. 1  Pic. 2 Pic. 3
