CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE
HomeStore

CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE

CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE

EQ-CIP80-DIE is a Complete CIP Die Set (Max. 300 MPa Vessel) for Cold Isostatic Press, which has an 80mm ID x 180mm depth chamber. It is an excellent tool for preparing a 2" - 3“ sample with a much higher density.
Specifications:
CIP Vessel size 80 I.D. x 135 Deep. mm
Vessel Pressure
  • 0 - 300 MPa
  • 1 MPa / 5 min
Actual Force Applied on the Hydraulic Cylinder (Ton)  100 150  200
CIP Die Pressure (MPa)   200 300  400




Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)
  • Pic. 1  Pic. 2 Pic. 3
Warning
  • Never let the press hold the target pressure be longer than 8 minutes
  • It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period
  • Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing

Die Sleeve, Upper Die Core
and two handles
 Die Cavity (80mm I.D)
filled with hydraulic oil
100-200 T Electric Hydraulic Press
Packing List:
Name Qty
1 CIP pressing die 1 set
2 Black Rubber Rings O.D 80 mm  10 pc
3 Holding bar (for carrying the CIP pressing die) 2 pc
4 Pressing oil 1 bottle
5 Hex-socket wrench (for top pressing die and degassing) 1 pc



$4,545.10

Original: $12,986.00

-65%
CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE—

$12,986.00

$4,545.10

More Images

CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE - Image 2

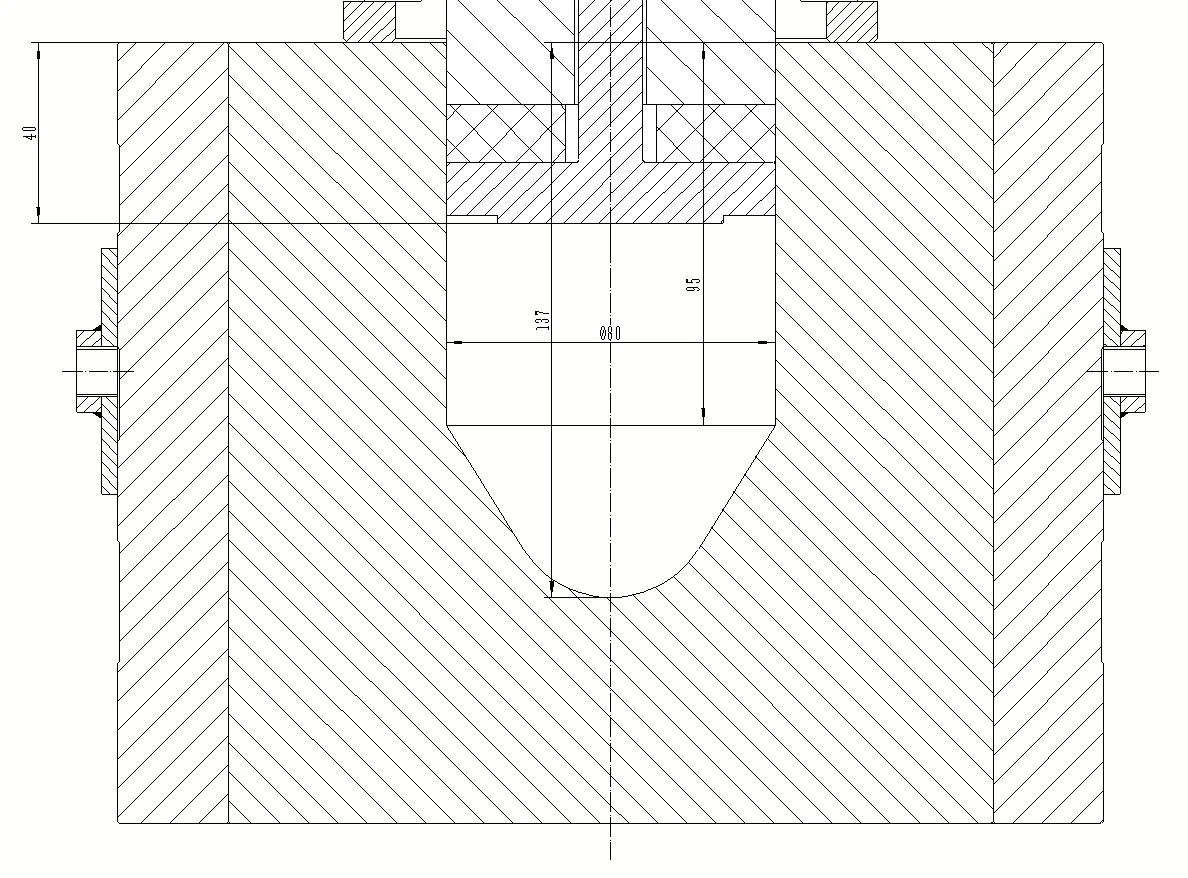

CIP Die Set (80 mm ID, Max. 300 MPa Vessel) for Cold Isostatic Press, - CIP80-DIE - Image 3
