Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS

Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS

IMCS-1700-MAS is a compact atomizer designed for the preparation of spherical particles in a small batch (200 g Al alloy). The 25 kW induction power supply can melt high-temperature alloy up to 1700°C, including Ni-based superalloy, high-entropy alloy, or even refractory elements. With an atomizing pressure of 1 Mpa, the particle size is usually less than 80 microns.
Due to its compact design, the equipment can fit in any lab without the hassle of building rearrangement.



SPECIFICATIONS:

Power
  • 208 - 240 VAC, 3 Phases, 25 kW, 50/60 Hz
  • 380, 400, 480 VAC is available upon request
Induction Power Supply
  • Max. output power: 25 KW
  • Frequency: 30 - 80 kHz, (non-adjustable)
  • Duty Cycle: 100%
  • Induction Coil: 170mm (ID) x 110 mm (H)
  • Water-cooled
  • Protection: water interlock, over-temperature, and overpower protection
Melting Chamber ( Top)
  • Chamber is made of SS304 with a water-cooling jacket to ensure surface temperature < 60ºC.
  • 0.2 MPa max. working pressure with a safety pressure-relief valve
  • Thermocouple fixture with a linear actuator.
  • Observation window with tempered glass
Casting Chamber ( Bottom )
  • The bottom chamber is made of SS304 with a KF 25 vacuum port
  • Vacuum level: 50 mTorr (with mechanical pump)
 Crucible with a special nozzle

  • One set of high purity graphite crucible and thermocouple sheath is included for max. 200 g capacity ( Fe based alloy)
  • OD 80 mm × ID 60 mm × H 160 mm
  • Max volume: 200 g (refer to iron)
  • A special design of nozzle at the bottom of the crucible to atomize the melt.
  • The crucible is sealed from the casting chamber to keep high pressure at the melting chamber.
  • Powder yield for < = 200 mesh is about 30% - 60% depending on the material's melting point. In order to increase powder yield, strongly suggest ordering a crusher (Pic1) and jet mill (Pic.2) to reduce large particle size and a vibrating sieve (Pic. 3) to screen particles fast. Pls, click the picture below to order.



Pic.1 Pic. 2 Pic. 3


Temperature Control
  • Precision temperature controller with 30 segments programmable
  • Automatic PID control with the protection of over-temperature and thermal couple failure.
  • Thermal couple: B type
  • Working temperature range: 500~1600, 1700 Max. (<1hour ).
  • Temperature stability : +/- 5
  • Manual temperature control for the fast heating
  • 4/second(1000-1200)
  • 3/second(1200~1500)
  • 1~2/second (1500~1700)
Cooling
  • > 116 L/minute cooling water is required to cool the induction coil.
  • May click the picture below to order a water circulator.

Particle Morphology
and Distribution
  • Particles shall be sieved after atomizing to get a uniform size and better distribution
  • Particle distribution is strongly dependent on processing parameters

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request.
Warning
  • This is high-pressure equipment! Must wear goggles when operating.
  •  Must use the pressure regulator to limit input gas pressure below 10 bars
Application Note MTI provides a full line of research equipment for 3D printing and thermal spraying materials using all quantity samples to save money and space: ( click pictures below to see details)

      Arc Melting          Atomizing         Hydrogen annealing       Powder surface Coating       HIP Treatment



$38,464.30

Original: $109,898.00

-65%
Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS—

$109,898.00

$38,464.30

More Images

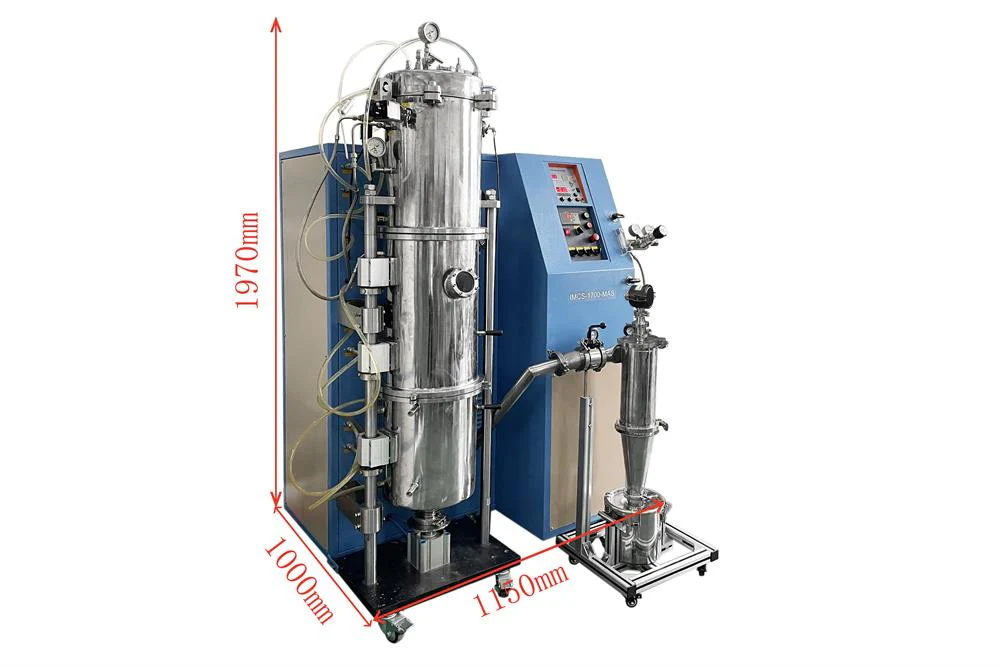

Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS - Image 2

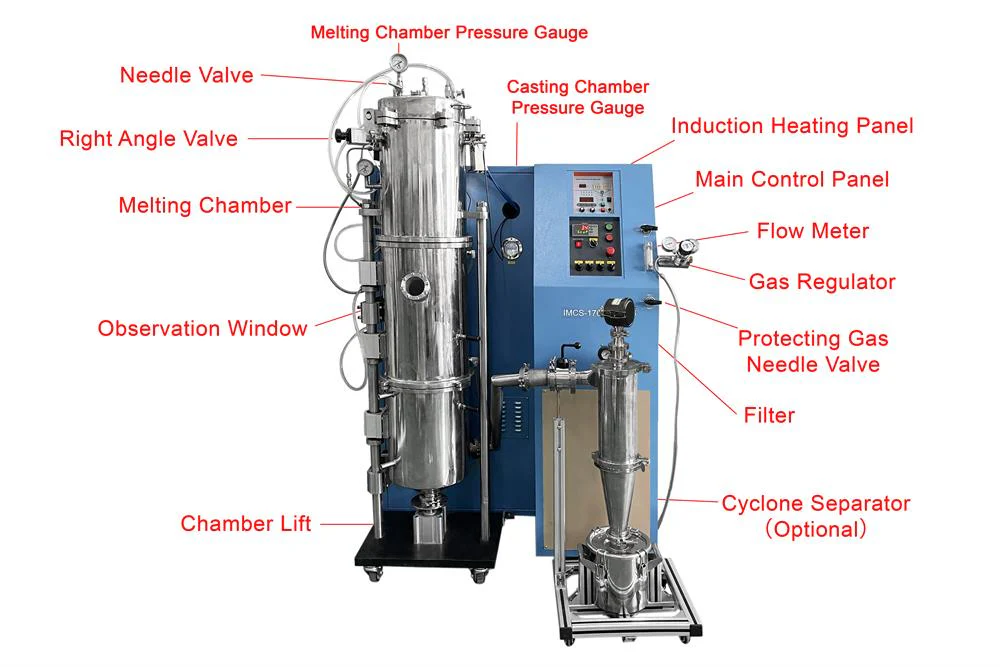

Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS - Image 3

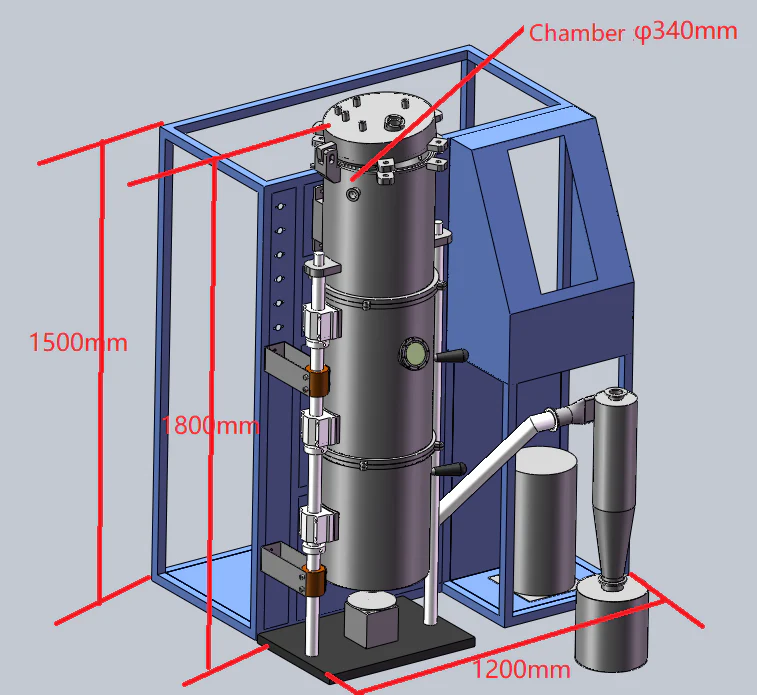

Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS - Image 4

Compact Induction Atomizer (1 MPa @ 1700C Max.) for 3D Printing - IMCS-1700-MAS

IMCS-1700-MAS is a compact atomizer designed for the preparation of spherical particles in a small batch (200 g Al alloy). The 25 kW induction power supply can melt high-temperature alloy up to 1700°C, including Ni-based superalloy, high-entropy alloy, or even refractory elements. With an atomizing pressure of 1 Mpa, the particle size is usually less than 80 microns.
Due to its compact design, the equipment can fit in any lab without the hassle of building rearrangement.



SPECIFICATIONS:

Power
  • 208 - 240 VAC, 3 Phases, 25 kW, 50/60 Hz
  • 380, 400, 480 VAC is available upon request
Induction Power Supply
  • Max. output power: 25 KW
  • Frequency: 30 - 80 kHz, (non-adjustable)
  • Duty Cycle: 100%
  • Induction Coil: 170mm (ID) x 110 mm (H)
  • Water-cooled
  • Protection: water interlock, over-temperature, and overpower protection
Melting Chamber ( Top)
  • Chamber is made of SS304 with a water-cooling jacket to ensure surface temperature < 60ºC.
  • 0.2 MPa max. working pressure with a safety pressure-relief valve
  • Thermocouple fixture with a linear actuator.
  • Observation window with tempered glass
Casting Chamber ( Bottom )
  • The bottom chamber is made of SS304 with a KF 25 vacuum port
  • Vacuum level: 50 mTorr (with mechanical pump)
 Crucible with a special nozzle

  • One set of high purity graphite crucible and thermocouple sheath is included for max. 200 g capacity ( Fe based alloy)
  • OD 80 mm × ID 60 mm × H 160 mm
  • Max volume: 200 g (refer to iron)
  • A special design of nozzle at the bottom of the crucible to atomize the melt.
  • The crucible is sealed from the casting chamber to keep high pressure at the melting chamber.
  • Powder yield for < = 200 mesh is about 30% - 60% depending on the material's melting point. In order to increase powder yield, strongly suggest ordering a crusher (Pic1) and jet mill (Pic.2) to reduce large particle size and a vibrating sieve (Pic. 3) to screen particles fast. Pls, click the picture below to order.



Pic.1 Pic. 2 Pic. 3


Temperature Control
  • Precision temperature controller with 30 segments programmable
  • Automatic PID control with the protection of over-temperature and thermal couple failure.
  • Thermal couple: B type
  • Working temperature range: 500~1600, 1700 Max. (<1hour ).
  • Temperature stability : +/- 5
  • Manual temperature control for the fast heating
  • 4/second(1000-1200)
  • 3/second(1200~1500)
  • 1~2/second (1500~1700)
Cooling
  • > 116 L/minute cooling water is required to cool the induction coil.
  • May click the picture below to order a water circulator.

Particle Morphology
and Distribution
  • Particles shall be sieved after atomizing to get a uniform size and better distribution
  • Particle distribution is strongly dependent on processing parameters

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request.
Warning
  • This is high-pressure equipment! Must wear goggles when operating.
  •  Must use the pressure regulator to limit input gas pressure below 10 bars
Application Note MTI provides a full line of research equipment for 3D printing and thermal spraying materials using all quantity samples to save money and space: ( click pictures below to see details)

      Arc Melting          Atomizing         Hydrogen annealing       Powder surface Coating       HIP Treatment
