1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL
HomeStore

1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL

1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL

The OTF-1200X-SL is a single-temperature zone rapid thermal processing electric sliding furnace. It has a maximum heating rate of 10/min and is equipped with a sliding rail at the bottom, which allows the furnace to slide from one side of the tube to the other for rapid heating and cooling. This furnace can also be used for the CVD growth of graphene and carbon nanotubes. It uses a touch screen and PLC control, which allows for adjustable speed.

SPECIFICATIONS

Power
  • AC 208-240V Single Phase, 50/60 Hz
  • 3 kW

Heating
  • Maximum:1200< 0.5 hrs
  • Continuous Working: 1100 or less
  • Recommended heating rate ≤10/min
  • Heating zone length: 400mm
Thermocouple
  •  K-type

Specs
  • Slide distance: 400mm (can be customized at extra cost)
  • Adjustable speed range: 10-100mm/s (can be customized at extra cost) and can also be set to move back and forth
  • The heating will automatically slide to the far right from the far left according to the temperature program after reaching a certain temperature
  • The maximum heating rate for the left sample area: 3/s
  • Rapid cooling rate for samples inside the furnace: 3/s (500-100), 0.7/s (500-200)

Temperature Controller
  • Two PID automatic controllers with 50 programmable segments for control of heating & cooling rate, and dwell time.
  • Built-in overheating & thermocouple broken protection.
  • +/- 1 ºC temperature accuracy.
  • DB9 PC Communications Port.
  • PC Control:
    • An MTS-02 control module is included for PC control on this furnace.
    • A laptop PC can be ordered for $500 together with the furnace. We recommend ordering a computer (laptop) from us to avoid software installation problems as we will perform installation and testing before shipping. For more information please click here.

Vacuum Flanges
  • One set of stainless steel sealed flanges
  • The flanges and quartz tube are sealed with O-rings, pressure rings, and O-rings, and tightened by threaded compression to ensure sealing
  • The left flange has a KF25 vacuum interface, needle valve, and barb venting port
  • The right flange has a needle valve, G1/4 air inlet, and mechanical pressure gauge.
Quartz Tube Options
  • 25 O.D x 19 I.D x 1400 L (mm)
  • 50 O.D x 44 I.D x 1400 L (mm)
  • 60 O.D x 55 I.D x 1400 L (mm)
  • 80 O.D x 75 I.D x 1400 L (mm)
  • 100 O.D x 95 I.D x 1400 L (mm)

Vacuum Level
  •  Limited by a vacuum pump
    • 10^-2 torr can be achieved by a mechanical pump
    • 10^-5 torr can be reached by a molecular pump
  •     The vacuum pump is not included, please order separately

Compliance
  • CE Certified
  • NRTL certification(UL61010) or CSA certification is available at extra cost.

Application Notes
  • Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.12 MPa
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  •  Vacuum pressures may only be safely used up to 1000°C



$6,999.30

Original: $19,998.00

-65%
1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL—

$19,998.00

$6,999.30

More Images

1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL - Image 2

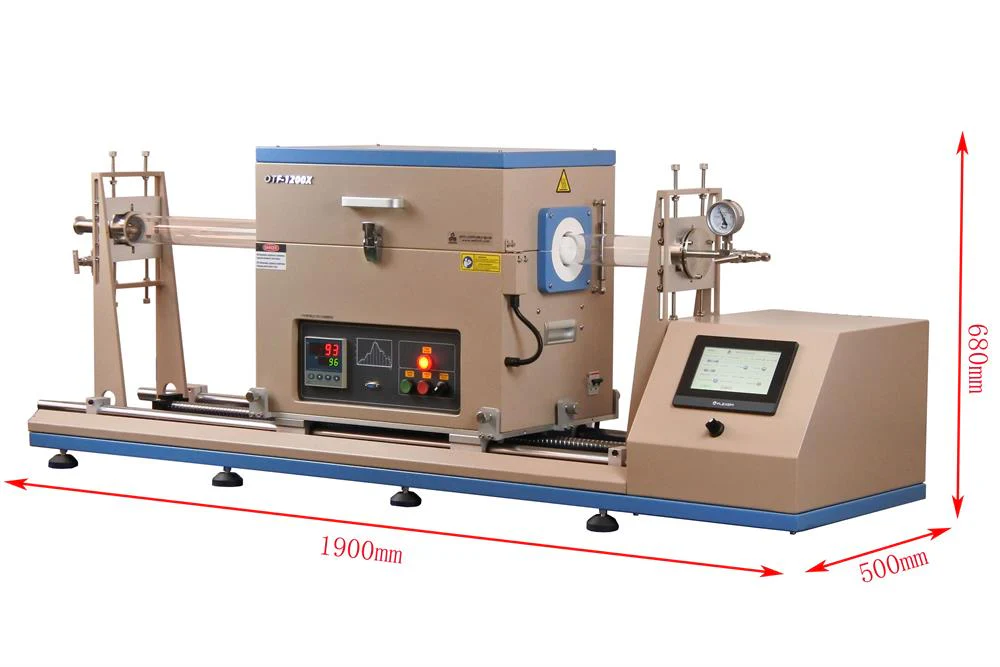

1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL - Image 3

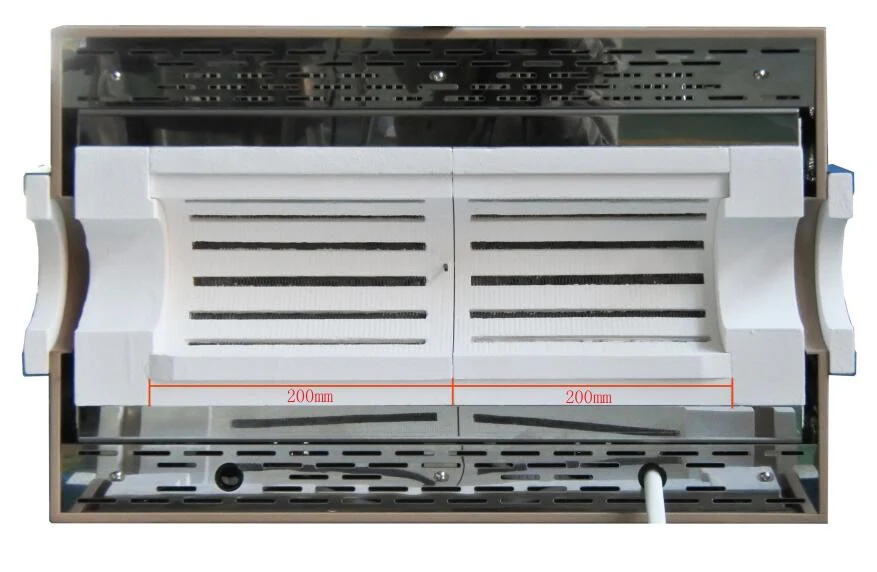

1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL - Image 4

1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL

The OTF-1200X-SL is a single-temperature zone rapid thermal processing electric sliding furnace. It has a maximum heating rate of 10/min and is equipped with a sliding rail at the bottom, which allows the furnace to slide from one side of the tube to the other for rapid heating and cooling. This furnace can also be used for the CVD growth of graphene and carbon nanotubes. It uses a touch screen and PLC control, which allows for adjustable speed.

SPECIFICATIONS

Power
  • AC 208-240V Single Phase, 50/60 Hz
  • 3 kW

Heating
  • Maximum:1200< 0.5 hrs
  • Continuous Working: 1100 or less
  • Recommended heating rate ≤10/min
  • Heating zone length: 400mm
Thermocouple
  •  K-type

Specs
  • Slide distance: 400mm (can be customized at extra cost)
  • Adjustable speed range: 10-100mm/s (can be customized at extra cost) and can also be set to move back and forth
  • The heating will automatically slide to the far right from the far left according to the temperature program after reaching a certain temperature
  • The maximum heating rate for the left sample area: 3/s
  • Rapid cooling rate for samples inside the furnace: 3/s (500-100), 0.7/s (500-200)

Temperature Controller
  • Two PID automatic controllers with 50 programmable segments for control of heating & cooling rate, and dwell time.
  • Built-in overheating & thermocouple broken protection.
  • +/- 1 ºC temperature accuracy.
  • DB9 PC Communications Port.
  • PC Control:
    • An MTS-02 control module is included for PC control on this furnace.
    • A laptop PC can be ordered for $500 together with the furnace. We recommend ordering a computer (laptop) from us to avoid software installation problems as we will perform installation and testing before shipping. For more information please click here.

Vacuum Flanges
  • One set of stainless steel sealed flanges
  • The flanges and quartz tube are sealed with O-rings, pressure rings, and O-rings, and tightened by threaded compression to ensure sealing
  • The left flange has a KF25 vacuum interface, needle valve, and barb venting port
  • The right flange has a needle valve, G1/4 air inlet, and mechanical pressure gauge.
Quartz Tube Options
  • 25 O.D x 19 I.D x 1400 L (mm)
  • 50 O.D x 44 I.D x 1400 L (mm)
  • 60 O.D x 55 I.D x 1400 L (mm)
  • 80 O.D x 75 I.D x 1400 L (mm)
  • 100 O.D x 95 I.D x 1400 L (mm)

Vacuum Level
  •  Limited by a vacuum pump
    • 10^-2 torr can be achieved by a mechanical pump
    • 10^-5 torr can be reached by a molecular pump
  •     The vacuum pump is not included, please order separately

Compliance
  • CE Certified
  • NRTL certification(UL61010) or CSA certification is available at extra cost.

Application Notes
  • Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.12 MPa
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  •  Vacuum pressures may only be safely used up to 1000°C
