1100°C Crucible Melting Furnace with Stirring Function for Glovebox - KSL1100XSVRM
HomeStore

1100°C Crucible Melting Furnace with Stirring Function for Glovebox - KSL1100XSVRM

1100°C Crucible Melting Furnace with Stirring Function for Glovebox - KSL1100XSVRM

KSL-1100X-SV-RM is a compact crucible melting furnace designed for melting Li, Mg, and air-sensitive alloys in gloveboxes up to 1100ºC Max. BN stirring blade and rotating mechanism with vertical movement are included to make uniform alloys.

Specifications:
Power
  • 120VAC (50/60Hz), 20 A
  • 1500 VA
  • Power cable and Plug is included
  • 208-240 VAC is also available upon request.
Temperature Controller
  • Precise 30-segment programmable temperature controller
  • PID and Autotune as well as overheating protection
  • +/- 1ºC accuracy
Working Temperature
  • Continuous: 1000 ºC
  • Max.: 1100 ºC < 1 hrs
Heating Chamber & Crucible size
  • Heating Chamber size: 58 mm ID x 158 mm H
  • One high-purity graphite crucible is included
  • 38mm ID x 125mm H
  • Please click the picture left for a detailed size
  • Quartz, BN, or Stainless steel crucibles are available upon request at extra cost
Stirring Mechanism
  • One rotating fixture is included with the melting furnace, which can be separated to be placed in a glovebox via the antechamber
  • A stirring rod made of Boron Nitrite is included to insert into the crucible by the movable rotary mechanism
    • Optional: SS316 stirring rod are available at extra cost. (please see the pic on the left)
  • A fibrous alumina plate is included on the top of the blade for thermal insulation
  • Rotation Speed: 0 - 500 rpm variable via a digital speed controller
  • Vertical moving distance: 5 - 200 mm manually adjustable
Dimension
dimensiondimension( click the picture to see the size )
Net Weight
  • 35 Lbs
Certificate
  • CE Certified
  • NRTL certificate is available at the extra cost



Select Voltage
From $7,998.00
1100°C Crucible Melting Furnace with Stirring Function for Glovebox - KSL1100XSVRM—
$7,998.00

More Images

1100°C Crucible Melting Furnace with Stirring Function for Glovebox - KSL1100XSVRM - Image 2

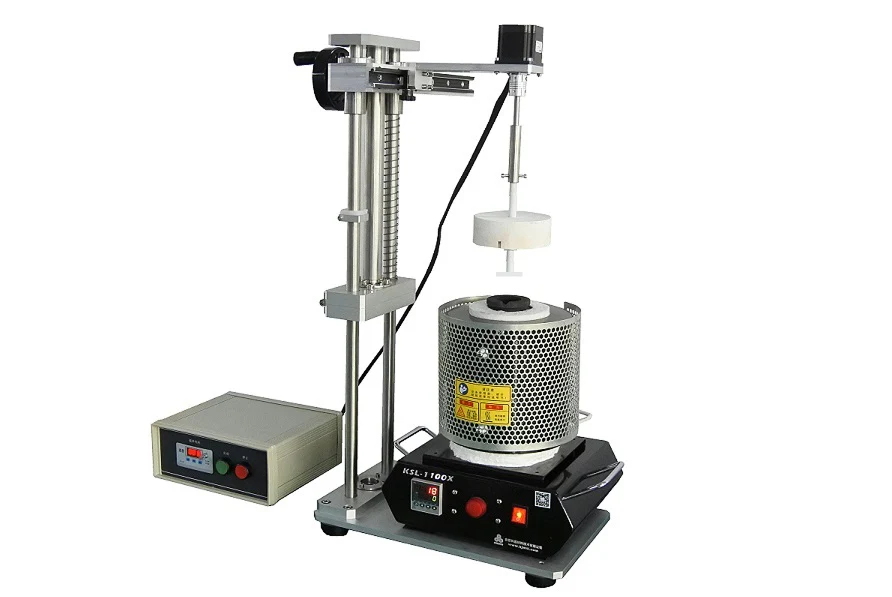

1100°C Crucible Melting Furnace with Stirring Function for Glovebox - KSL1100XSVRM - Image 3
