Economic Vacuum Melt Wire Spinning System with 15KW Induction Heating - VTC-W15

Economic Vacuum Melt Wire Spinning System with 15KW Induction Heating - VTC-W15

Economic Vacuum Melt Wire Spinning System with 15KW Induction Heating - VTC-W15

VTC-W200 is an economic vacuum wire melt spinning system for the research lab to prepare amorphous metallic wire < 20-micron diameter via induction heating and rapid quenching on a specially designed spinning copper wheel.

SPECIFICATIONS:

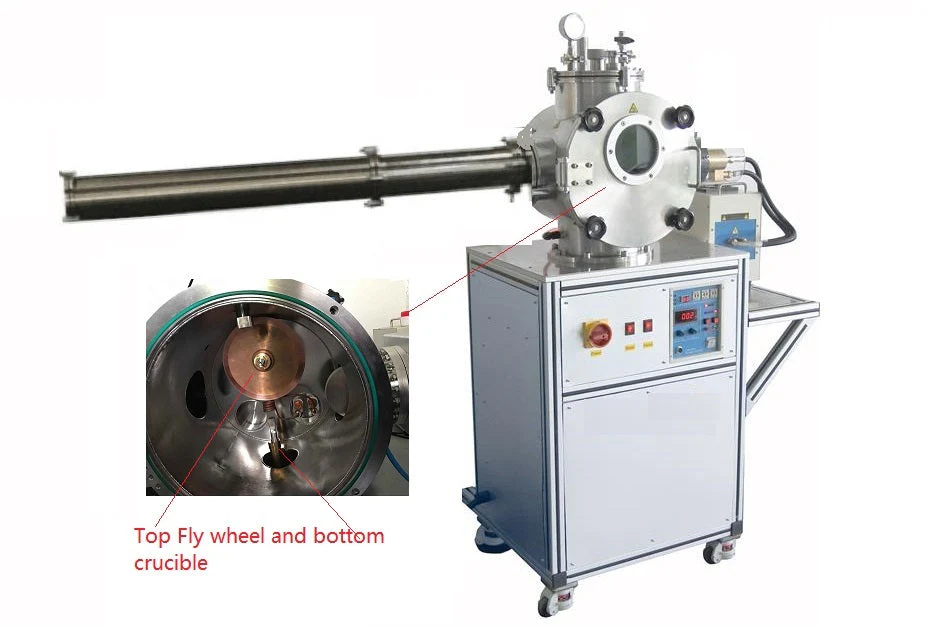

Features	The system consists of the vacuum chamber and induction heating with a spinning wheel with max. 70 meter /sec. spinning speed Can melt metallic sample around 10 - 50 g per batch. up to 2000oC. Customer can use own vacuum pump and water chiller to save cost
Power Requirements	Input Voltage: 208 - 240V AC, Three Phases Input Power: 20 KW ( 70A breaker required)
Vacuum Chamber & Vacuum pump	Vacuum chamber: 400 mm diameter x 350 mm L Hinged type door with quartz glass observation window KF40 port to connect to a vacuum pump Can achieve 5 x10 E-5 torrs by a turbopump A 2-meter long quench tube is included to receive spun wire
Induction Heater	Dual Station 15KW Induction Heater Frequency: 30 - 80 kHz Crucible: 15×50mm made of BN Max. sample load: around 2 - 5 g ( Fe)
Spinning wheel	Flying wheel made of Oxygen Free Copper Dimension φ220 × 30mm 0 - 70 meter / second adjustable
Wire ( silk) diameter	Wire (silk) diameter is dependable on material and dipping depth For Fe base alloy usually can achieve < 100-micron diameter FeSiBNbCu alloy *amorphous* wire in about 50-micron diameter
Optional Facility	Water chiller > 58 L/min is required ( click Pic. 1 to order or use your own ) A vacuum pump is required. ( click Pic. 2 and 3 to order or using your own pump with KF 40 Port ) Pic. 1 Pic. 2Pic. 3
Compliance	CE Certified NRTL certification is available upon request at an extra cost

$20,999.30

Original: $59,998.00

-65%

Economic Vacuum Melt Wire Spinning System with 15KW Induction Heating - VTC-W15—

$59,998.00

$20,999.30

More Images

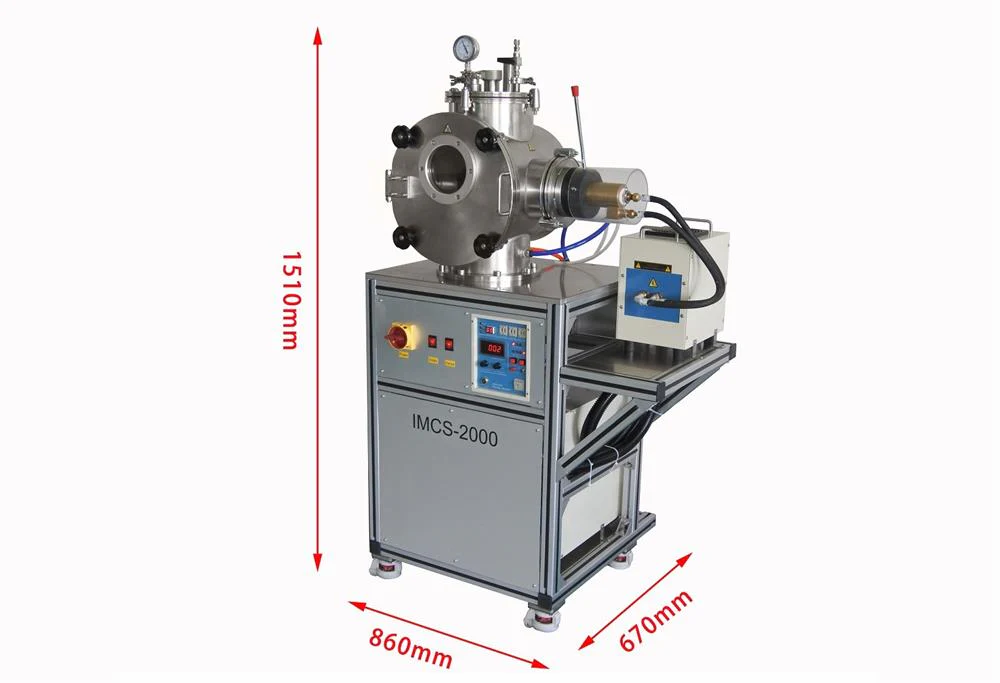

Economic Vacuum Melt Wire Spinning System with 15KW Induction Heating - VTC-W15 - Image 2

Economic Vacuum Melt Wire Spinning System with 15KW Induction Heating - VTC-W15

VTC-W200 is an economic vacuum wire melt spinning system for the research lab to prepare amorphous metallic wire < 20-micron diameter via induction heating and rapid quenching on a specially designed spinning copper wheel.

SPECIFICATIONS:

Features	The system consists of the vacuum chamber and induction heating with a spinning wheel with max. 70 meter /sec. spinning speed Can melt metallic sample around 10 - 50 g per batch. up to 2000oC. Customer can use own vacuum pump and water chiller to save cost
Power Requirements	Input Voltage: 208 - 240V AC, Three Phases Input Power: 20 KW ( 70A breaker required)
Vacuum Chamber & Vacuum pump	Vacuum chamber: 400 mm diameter x 350 mm L Hinged type door with quartz glass observation window KF40 port to connect to a vacuum pump Can achieve 5 x10 E-5 torrs by a turbopump A 2-meter long quench tube is included to receive spun wire
Induction Heater	Dual Station 15KW Induction Heater Frequency: 30 - 80 kHz Crucible: 15×50mm made of BN Max. sample load: around 2 - 5 g ( Fe)
Spinning wheel	Flying wheel made of Oxygen Free Copper Dimension φ220 × 30mm 0 - 70 meter / second adjustable
Wire ( silk) diameter	Wire (silk) diameter is dependable on material and dipping depth For Fe base alloy usually can achieve < 100-micron diameter FeSiBNbCu alloy *amorphous* wire in about 50-micron diameter
Optional Facility	Water chiller > 58 L/min is required ( click Pic. 1 to order or use your own ) A vacuum pump is required. ( click Pic. 2 and 3 to order or using your own pump with KF 40 Port ) Pic. 1 Pic. 2Pic. 3
Compliance	CE Certified NRTL certification is available upon request at an extra cost

Product Information

Shipping & Returns

Description

VTC-W200 is an economic vacuum wire melt spinning system for the research lab to prepare amorphous metallic wire < 20-micron diameter via induction heating and rapid quenching on a specially designed spinning copper wheel.

SPECIFICATIONS:

Features	The system consists of the vacuum chamber and induction heating with a spinning wheel with max. 70 meter /sec. spinning speed Can melt metallic sample around 10 - 50 g per batch. up to 2000oC. Customer can use own vacuum pump and water chiller to save cost
Power Requirements	Input Voltage: 208 - 240V AC, Three Phases Input Power: 20 KW ( 70A breaker required)
Vacuum Chamber & Vacuum pump	Vacuum chamber: 400 mm diameter x 350 mm L Hinged type door with quartz glass observation window KF40 port to connect to a vacuum pump Can achieve 5 x10 E-5 torrs by a turbopump A 2-meter long quench tube is included to receive spun wire
Induction Heater	Dual Station 15KW Induction Heater Frequency: 30 - 80 kHz Crucible: 15×50mm made of BN Max. sample load: around 2 - 5 g ( Fe)
Spinning wheel	Flying wheel made of Oxygen Free Copper Dimension φ220 × 30mm 0 - 70 meter / second adjustable
Wire ( silk) diameter	Wire (silk) diameter is dependable on material and dipping depth For Fe base alloy usually can achieve < 100-micron diameter FeSiBNbCu alloy *amorphous* wire in about 50-micron diameter
Optional Facility	Water chiller > 58 L/min is required ( click Pic. 1 to order or use your own ) A vacuum pump is required. ( click Pic. 2 and 3 to order or using your own pump with KF 40 Port ) Pic. 1 Pic. 2Pic. 3
Compliance	CE Certified NRTL certification is available upon request at an extra cost
