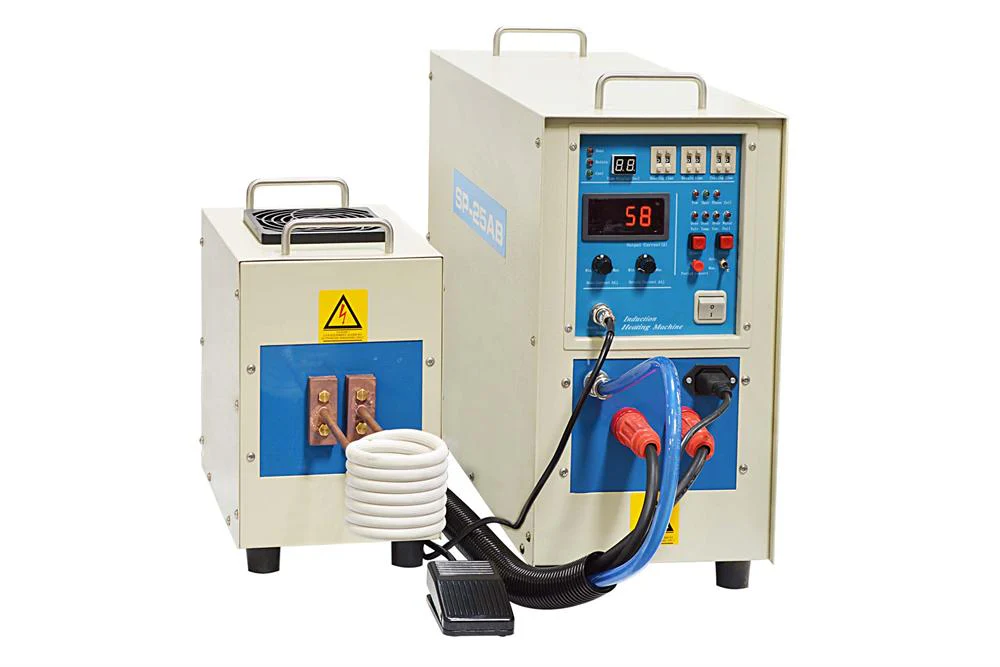

15 KVA (30-80KHz) Desktop Induction Heater w/ Timer Control - SP-25AB

15 KVA (30-80KHz) Desktop Induction Heater w/ Timer Control - SP-25AB

SP-25AB is a high-frequency induction power supply. It is designed for the material research lab to quickly melt and perform heat treating to metallic materials up to 2kg.

SPECIFICATIONS:
Power
  • 208-240V AC, 50/60 Hz, three phases, 50 A
  • 400V or 480V, three Phases are available upon request)
  • 15 kVA
  • Power cable is included without a plug.
Output Frequency
  • 30-80 kHz
Heating Current
  • 200-800 A
Max. Input Power
  • 15 KVA
Duty Cycle
  • 80%
Max. Sample Weight
  • 2 kg


Timer Control
  • Automatic timer control or Manual control selectable
    • Manual Control: by Foot Pedal
    • Automatic Heating Time: 1-99 Seconds
    • Automatic Dwell Time: 1-99 Seconds
    • Automatic Cooling Time: 1-99 Seconds
Temperature Control (Optional)
  • In order to control temperature control by thermocouple for this induction unit, please order the temperature controller MTC-808
  • You may also to consider order the complete system SP7TC from us




Water Cooling
  • Flowrate: >10 L/Min
  • Pressure: ≥0.2 MPa (29 Psi)
  • Tap water is acceptable, but using a recirculating water chiller is highly recommended. Please click here to order separately
  • Protection: Overpressure and over-temperature switch

Induction Coil
  • 2 pcs Induction Coil total,
  • 82mm(OD) x 65mm(ID) x 65mm(H)
  • 82mm(OD) x 65mm(ID) x 80mm(H)
Display
  • The digital display shows output power and current

Application Notes
Melting
Sintering
Annealing
Heat treatment
Quenching

  • Melting time and temperature are related to materials, the crucible, refractory insulation, etc.
  • For induction heating in the glove box, please contact MTI for the design below.



STANDARD PACKAGE:

Item Description Qty
1 Induction Heating Unit 1
2 Power Supply Cable (Plug is not included) 1
3 Foot Pedal with Cable 1
4 Coil: 82mm(OD) x 65mm(ID) x 65mm(H) 1
5 Coil: 82mm(OD) x 65mm(ID) x 80mm(H) 1
