Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB

The OTF2-VBF-GB system consists of three tube furnaces connected to a glovebox equipped with a water and oxygen purification system, achieving H₂O and O₂ levels below 1 PPM. Heat-treated samples can be transferred directly into the glovebox for further processing.

SPECIFICATIONS

Voltage	Single-phase 208-240VAC, 50/60 Hz
Max. Power Consumption	Glovebox Power: 1500W Total Power of High-Temperature Furnaces: 8.5KW
Furnaces	One 1200°C single-zone tube furnace on each side Max Temperature: 1200°C, Continuous Operating Temperature: 1100°C Tube Dimensions: 100mm OD × 96mm ID × 1000mm L A vertical furnace at the bottom of the glovebox Max Temperature: 1100°C, Continuous Operating Temperature: 1000°C Single-end sealed Φ200 × 340mm quartz tube
Circulating Water Chiller	Equipped with a Recirculating Water Chiller for Bottom Flange Sealing of the Vertical Tube Furnace Model: KJ-5300 Operating Voltage: AC 220V 50Hz Operating Current: 0.7–8 A Cooling Capacity: 6,274 Btu/h Compressor Power: 600 W Reservoir Capacity: 10 L Maximum Flow Rate: 16 L/min Net Weight: 45 kg
Certification	All electrical components (with input voltage ≤ 24V) are UL or CSA certified.

$125,000.00

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB—

$125,000.00

More Images

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB - Image 2

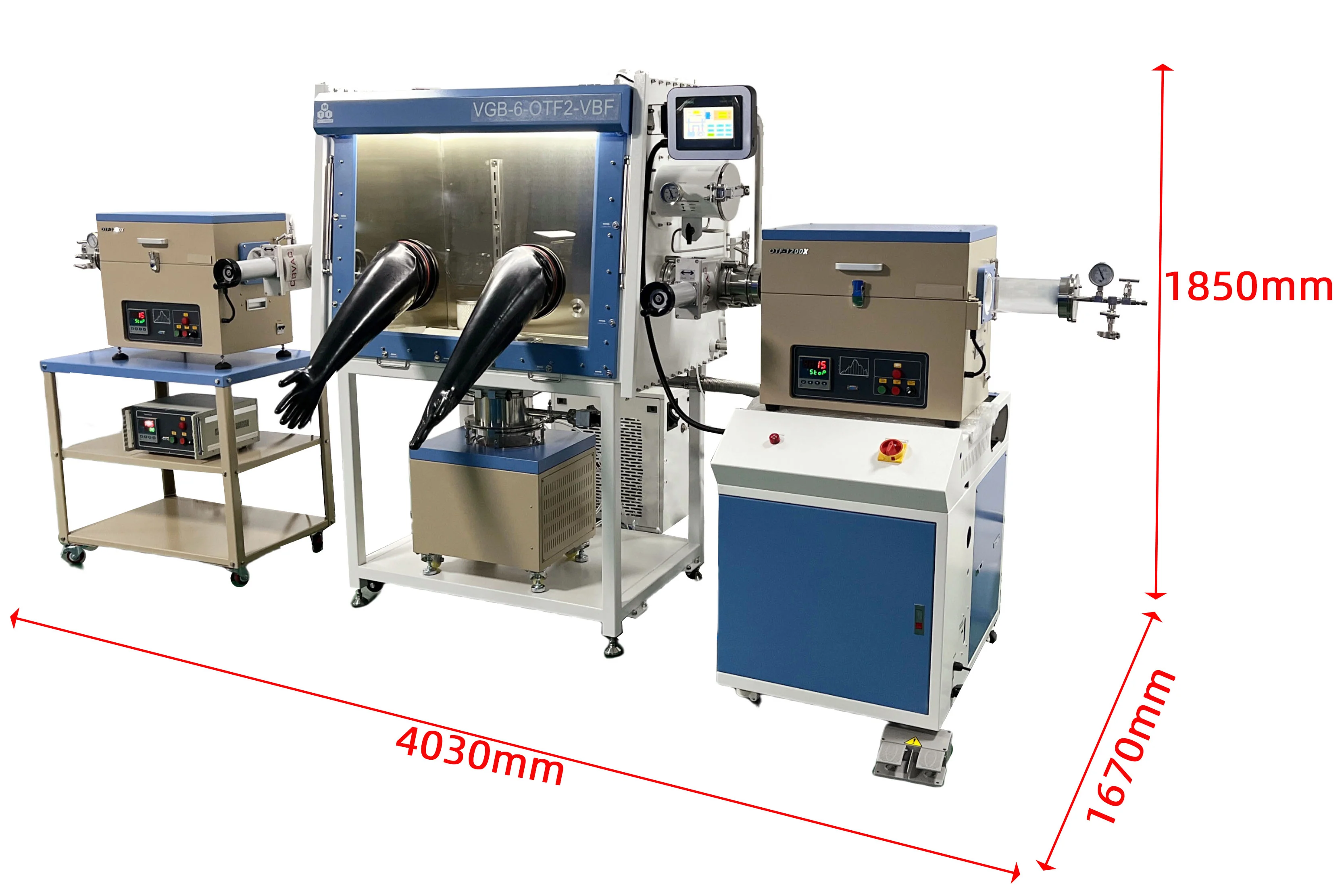

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB - Image 3

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB - Image 4

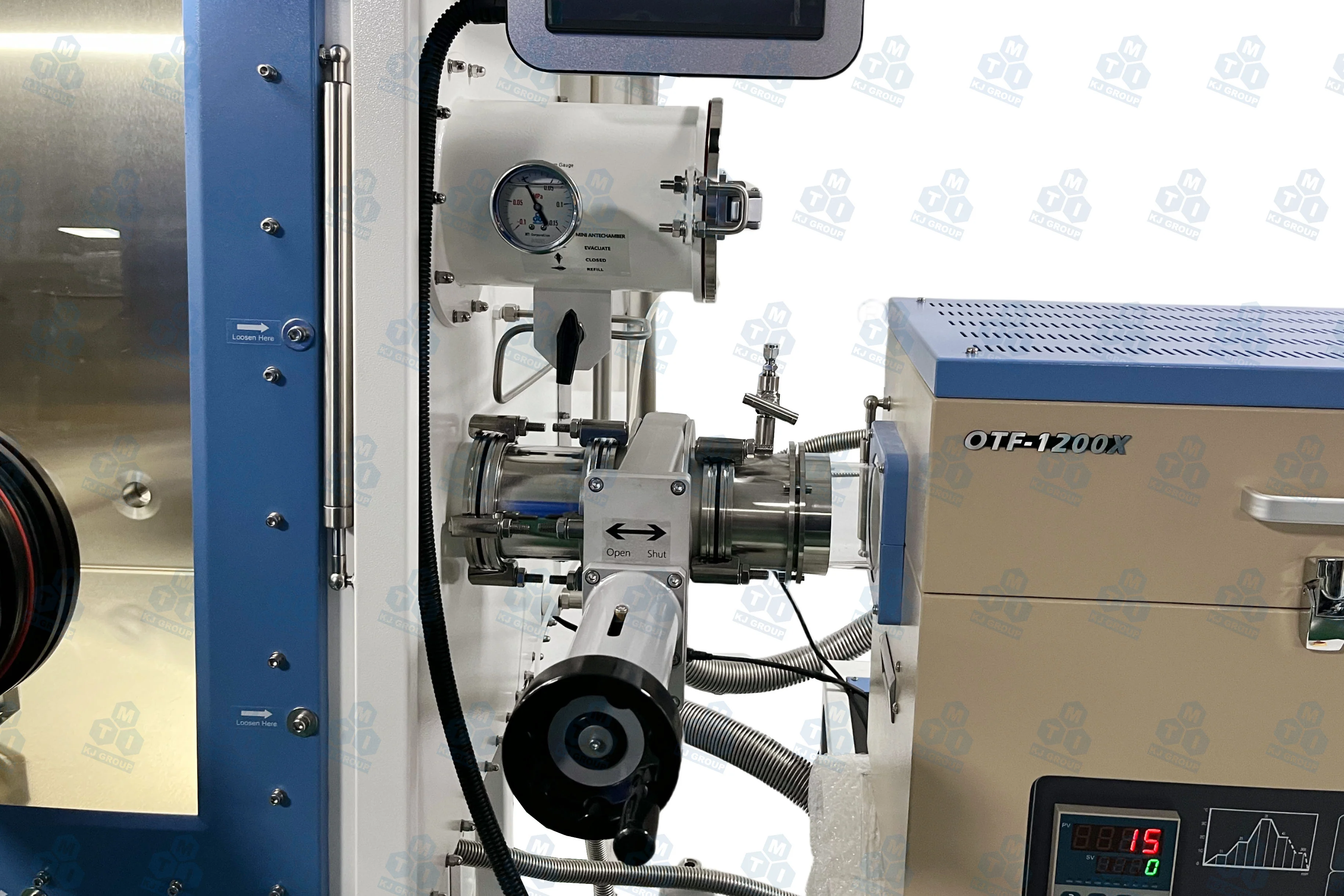

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB - Image 5

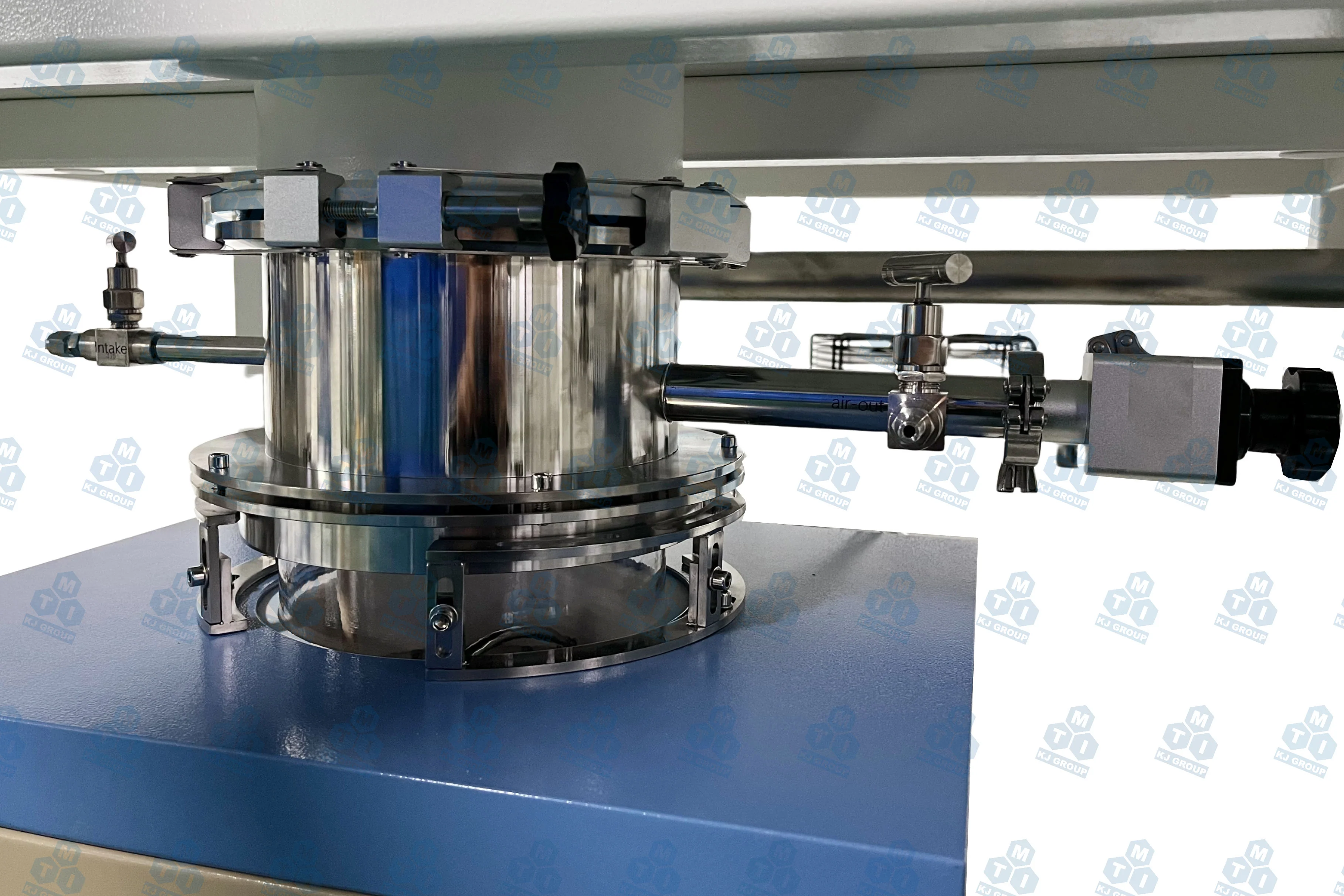

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB - Image 6

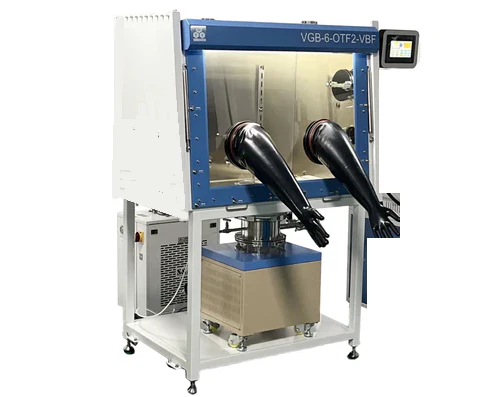

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB - Image 7

Glovebox with 1 PPM purification and Three 1200°C Max. Tube Furnaces - OTF2-VBF-GB

The OTF2-VBF-GB system consists of three tube furnaces connected to a glovebox equipped with a water and oxygen purification system, achieving H₂O and O₂ levels below 1 PPM. Heat-treated samples can be transferred directly into the glovebox for further processing.

SPECIFICATIONS

Voltage	Single-phase 208-240VAC, 50/60 Hz
Max. Power Consumption	Glovebox Power: 1500W Total Power of High-Temperature Furnaces: 8.5KW
Furnaces	One 1200°C single-zone tube furnace on each side Max Temperature: 1200°C, Continuous Operating Temperature: 1100°C Tube Dimensions: 100mm OD × 96mm ID × 1000mm L A vertical furnace at the bottom of the glovebox Max Temperature: 1100°C, Continuous Operating Temperature: 1000°C Single-end sealed Φ200 × 340mm quartz tube
Circulating Water Chiller	Equipped with a Recirculating Water Chiller for Bottom Flange Sealing of the Vertical Tube Furnace Model: KJ-5300 Operating Voltage: AC 220V 50Hz Operating Current: 0.7–8 A Cooling Capacity: 6,274 Btu/h Compressor Power: 600 W Reservoir Capacity: 10 L Maximum Flow Rate: 16 L/min Net Weight: 45 kg
Certification	All electrical components (with input voltage ≤ 24V) are UL or CSA certified.

Product Information

Shipping & Returns

Description

The OTF2-VBF-GB system consists of three tube furnaces connected to a glovebox equipped with a water and oxygen purification system, achieving H₂O and O₂ levels below 1 PPM. Heat-treated samples can be transferred directly into the glovebox for further processing.

SPECIFICATIONS

Voltage	Single-phase 208-240VAC, 50/60 Hz
Max. Power Consumption	Glovebox Power: 1500W Total Power of High-Temperature Furnaces: 8.5KW
Furnaces	One 1200°C single-zone tube furnace on each side Max Temperature: 1200°C, Continuous Operating Temperature: 1100°C Tube Dimensions: 100mm OD × 96mm ID × 1000mm L A vertical furnace at the bottom of the glovebox Max Temperature: 1100°C, Continuous Operating Temperature: 1000°C Single-end sealed Φ200 × 340mm quartz tube
Circulating Water Chiller	Equipped with a Recirculating Water Chiller for Bottom Flange Sealing of the Vertical Tube Furnace Model: KJ-5300 Operating Voltage: AC 220V 50Hz Operating Current: 0.7–8 A Cooling Capacity: 6,274 Btu/h Compressor Power: 600 W Reservoir Capacity: 10 L Maximum Flow Rate: 16 L/min Net Weight: 45 kg
Certification	All electrical components (with input voltage ≤ 24V) are UL or CSA certified.
