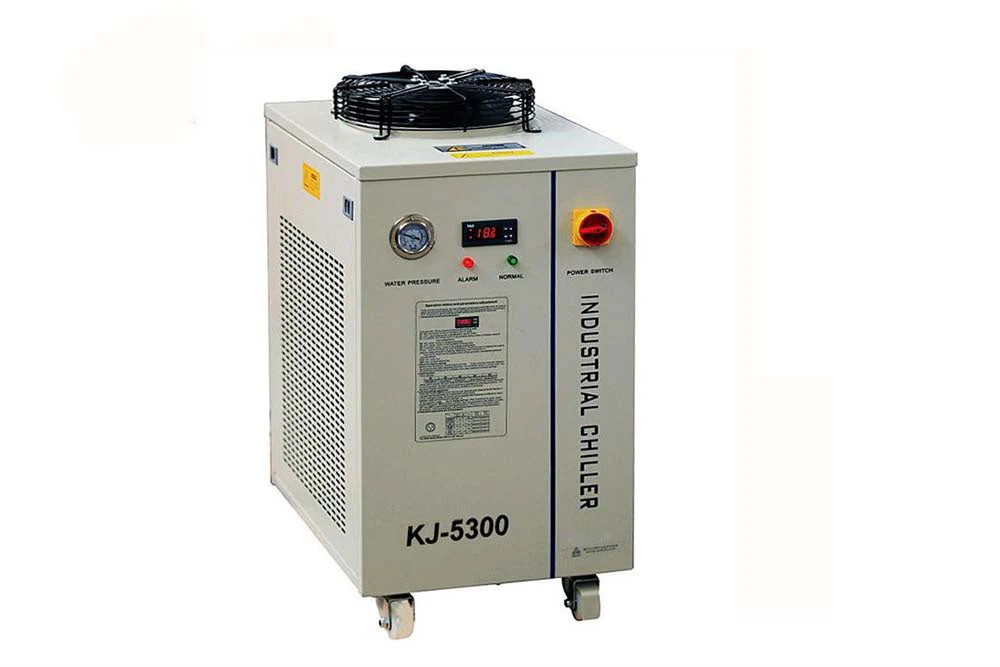

Middle Size Digital Temperature Controlled Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300
HomeStore

Middle Size Digital Temperature Controlled Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300

Middle Size Digital Temperature Controlled Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300

EQ-KJ5300 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy transport. The temperature range can be adjusted from 5 to 35°C. It is suitable for MTI larger tube furnaces and high power induction heaters.

SPECIFICATIONS
Power Supply
  • AC 110V or AC 220V, 50/60Hz ( please select in the options bar ).
Working Current
  • 220V: 0.8~4.5A
  • 110V: 1~6.5A
  • 1200W
Compressor Power
  • 0.6 KW (0.8HP)
Cooling Capacity
  • 1800W (6274Btu/hour)
Refrigerant
  • R410-a (650g)
Temperature Control
  • 5~30 °C
Temperature Accuracy
  • ± 0.3 °C
Heating Exchanger
  • Stainless steel
Water Pump Power
  • 0.1KW
Water Flow Rate (Head Pressure)
  • 16 Liters/ minute (35psi )
Water Tank & Water
  • 12 Liters made of stainless steel
  • Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
  • Distilled water is required as the coolant.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Pipe Connectors
  • Φ12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included

Water Filter
  • One water filter is included for immediate use.
  • Replace the water filter every 3 to 6 months based on water quality and usage. Please click the pic below to order

Protection
  • Protected from over-temperature and Min 2 L/min water flow
Noise Level
  • With compressor OFF and pump ON:    44 dB @ 1 m distance, 40 dB @ 200 mm distance
  • With compressor ON and pump ON:      69 dB @ 1 m distance, 63 dB @ 200 mm distance
  • Background noise level:                         45 dB
Compliance
  • CE approval
  • NRTL or CSA Certification (UL 1450) is available upon request at extra cost,
  • For II0Version, One UL certified transformer must be added to pass UL certification
Warranty
  • One year limited warranty with lifetime support
Application Notes
  • Use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction











Select by Voltage
From $1,399.30

Original: $3,998.00

-65%
Middle Size Digital Temperature Controlled Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300—

$3,998.00

$1,399.30

Middle Size Digital Temperature Controlled Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300

EQ-KJ5300 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy transport. The temperature range can be adjusted from 5 to 35°C. It is suitable for MTI larger tube furnaces and high power induction heaters.

SPECIFICATIONS
Power Supply
  • AC 110V or AC 220V, 50/60Hz ( please select in the options bar ).
Working Current
  • 220V: 0.8~4.5A
  • 110V: 1~6.5A
  • 1200W
Compressor Power
  • 0.6 KW (0.8HP)
Cooling Capacity
  • 1800W (6274Btu/hour)
Refrigerant
  • R410-a (650g)
Temperature Control
  • 5~30 °C
Temperature Accuracy
  • ± 0.3 °C
Heating Exchanger
  • Stainless steel
Water Pump Power
  • 0.1KW
Water Flow Rate (Head Pressure)
  • 16 Liters/ minute (35psi )
Water Tank & Water
  • 12 Liters made of stainless steel
  • Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
  • Distilled water is required as the coolant.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Pipe Connectors
  • Φ12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included

Water Filter
  • One water filter is included for immediate use.
  • Replace the water filter every 3 to 6 months based on water quality and usage. Please click the pic below to order

Protection
  • Protected from over-temperature and Min 2 L/min water flow
Noise Level
  • With compressor OFF and pump ON:    44 dB @ 1 m distance, 40 dB @ 200 mm distance
  • With compressor ON and pump ON:      69 dB @ 1 m distance, 63 dB @ 200 mm distance
  • Background noise level:                         45 dB
Compliance
  • CE approval
  • NRTL or CSA Certification (UL 1450) is available upon request at extra cost,
  • For II0Version, One UL certified transformer must be added to pass UL certification
Warranty
  • One year limited warranty with lifetime support
Application Notes
  • Use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction











Product Information

Shipping & Returns

Description

EQ-KJ5300 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy transport. The temperature range can be adjusted from 5 to 35°C. It is suitable for MTI larger tube furnaces and high power induction heaters.

SPECIFICATIONS
Power Supply
  • AC 110V or AC 220V, 50/60Hz ( please select in the options bar ).
Working Current
  • 220V: 0.8~4.5A
  • 110V: 1~6.5A
  • 1200W
Compressor Power
  • 0.6 KW (0.8HP)
Cooling Capacity
  • 1800W (6274Btu/hour)
Refrigerant
  • R410-a (650g)
Temperature Control
  • 5~30 °C
Temperature Accuracy
  • ± 0.3 °C
Heating Exchanger
  • Stainless steel
Water Pump Power
  • 0.1KW
Water Flow Rate (Head Pressure)
  • 16 Liters/ minute (35psi )
Water Tank & Water
  • 12 Liters made of stainless steel
  • Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
  • Distilled water is required as the coolant.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Pipe Connectors
  • Φ12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included

Water Filter
  • One water filter is included for immediate use.
  • Replace the water filter every 3 to 6 months based on water quality and usage. Please click the pic below to order

Protection
  • Protected from over-temperature and Min 2 L/min water flow
Noise Level
  • With compressor OFF and pump ON:    44 dB @ 1 m distance, 40 dB @ 200 mm distance
  • With compressor ON and pump ON:      69 dB @ 1 m distance, 63 dB @ 200 mm distance
  • Background noise level:                         45 dB
Compliance
  • CE approval
  • NRTL or CSA Certification (UL 1450) is available upon request at extra cost,
  • For II0Version, One UL certified transformer must be added to pass UL certification
Warranty
  • One year limited warranty with lifetime support
Application Notes
  • Use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction
