1300oC or 1700°C Molten Salt Electrolytic Furnace with 8" Cubic Atmosphere Controlled Heating Chamber - VEF1700

1300oC or 1700°C Molten Salt Electrolytic Furnace with 8" Cubic Atmosphere Controlled Heating Chamber - VEF1700

1300oC or 1700°C Molten Salt Electrolytic Furnace with 8" Cubic Atmosphere Controlled Heating Chamber - VEF1700

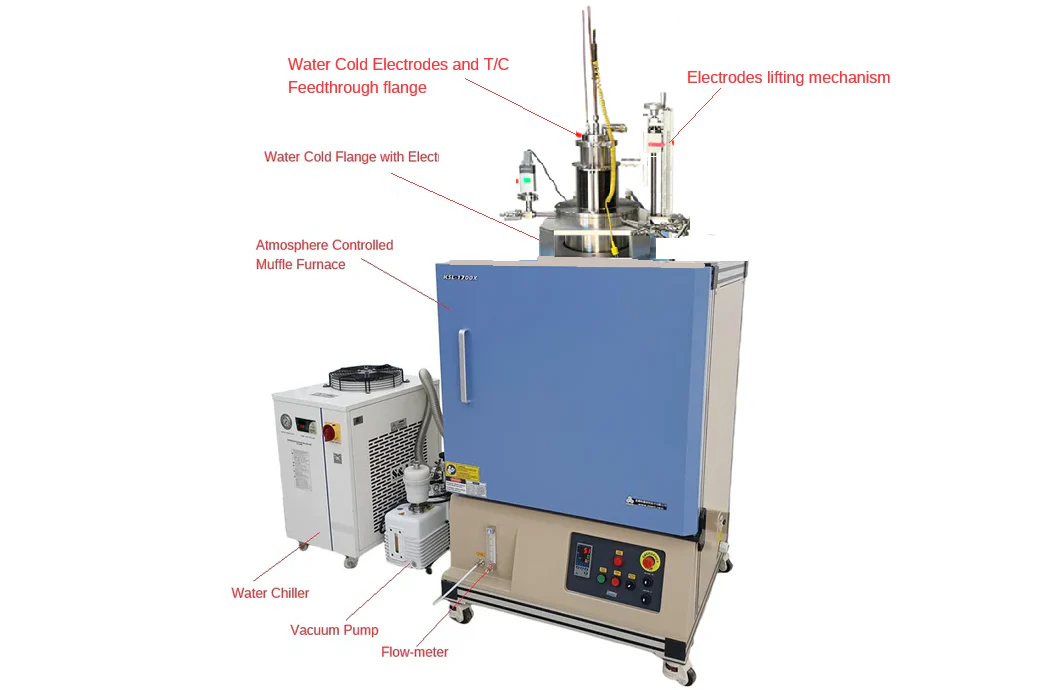

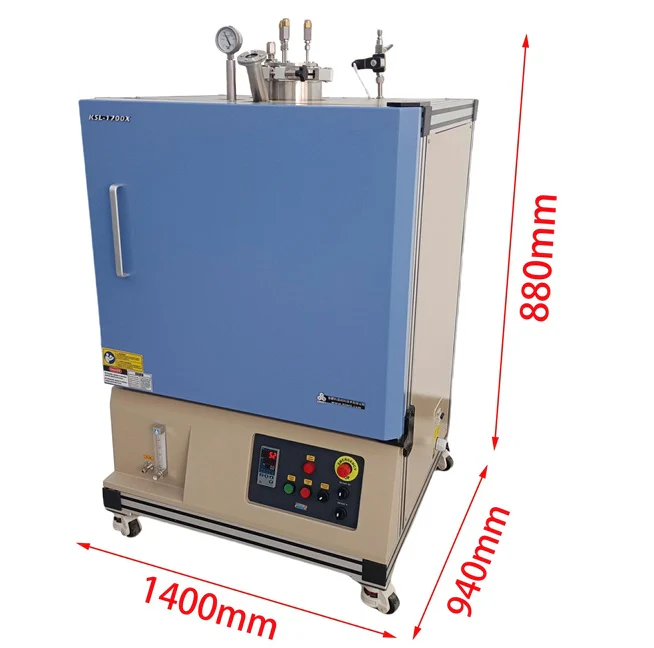

EF1700L is a 1300oC or 1700 °C Max electrolytic molten salt furnace with two electrodes that can accept a maximum DC power of up to 30VDC and 2000A. The furnace features a 200x200x200 mm air-tight heating chamber designed for the placement of a graphite or reactor. It is an excellent tool for refining noble or rare earth metals from molten salt under a controlled atmosphere.

SPECIFICATION:

Power	Power：208 - 240VAC, single phase, 50/60Hz, 6 KW Max.

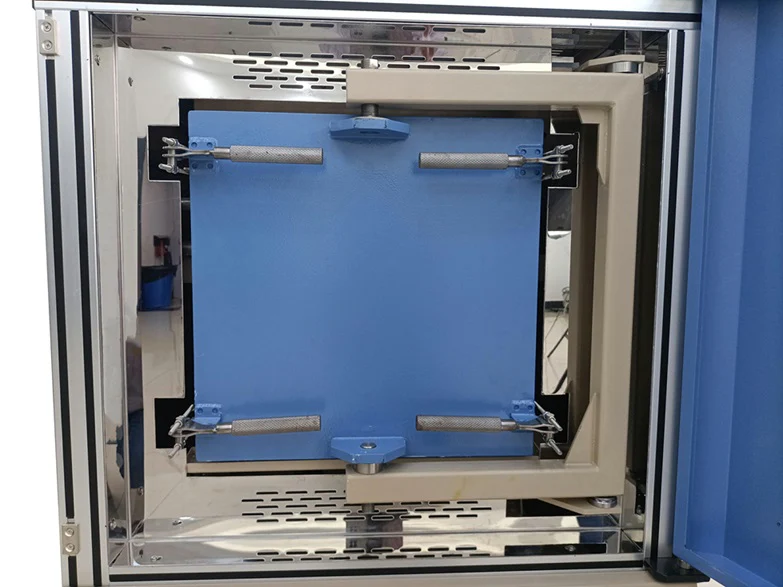

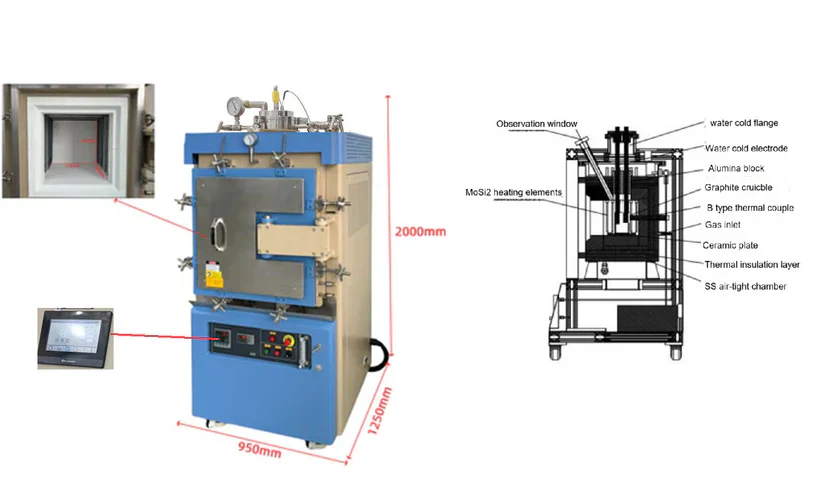

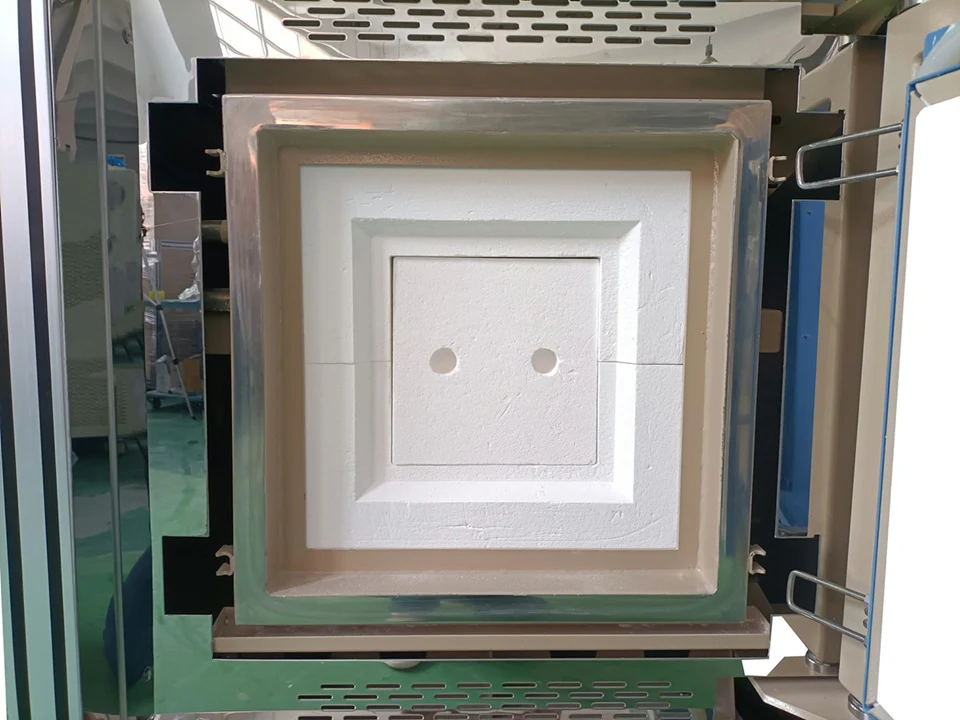

Atmosphere-controlled heating chamber	Chamber size: 200 x 200 x 200 mm (about 8" × 8" × 8"), 8 Liter Atmosphere-controlled steel chamber for oxygen, inert gas, and vacuum conditions. MoSi2 heating elements Max. working temperature: two options 1300 °C heated by SiC 1700 °C neated by MoSi2 Eurothermo temperature controller with +/- 0.5 °C accuracy is available upon request at an extra cost

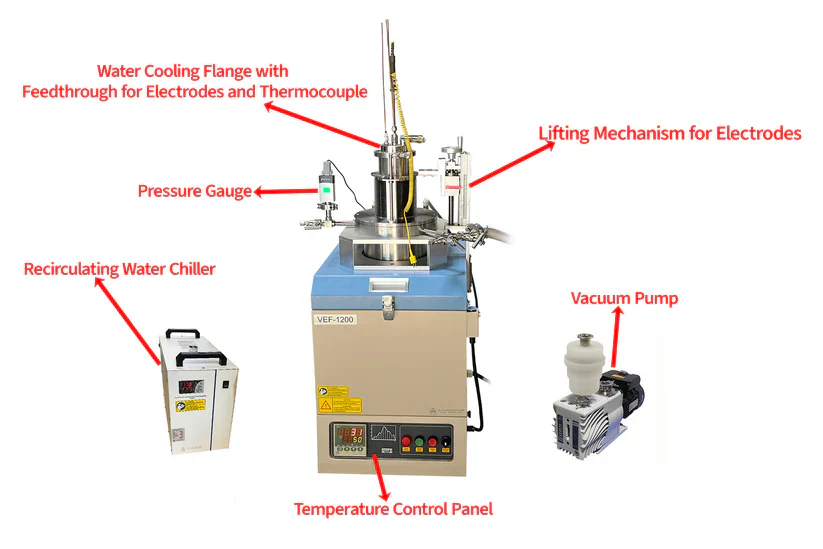

Air Tight Flange	One set of water cold flanges is built on top of the furnace with a quick clamp Three feedthroughs are built on the flange to connect 6 mm dia. electrodes, which are inserted into a graphite crucible 30 mm diameter quartz window is installed on the flange to observe electrolytic processing Optional: the flange can be lifted by an electric motor to replace the electrode easily at an extra cost

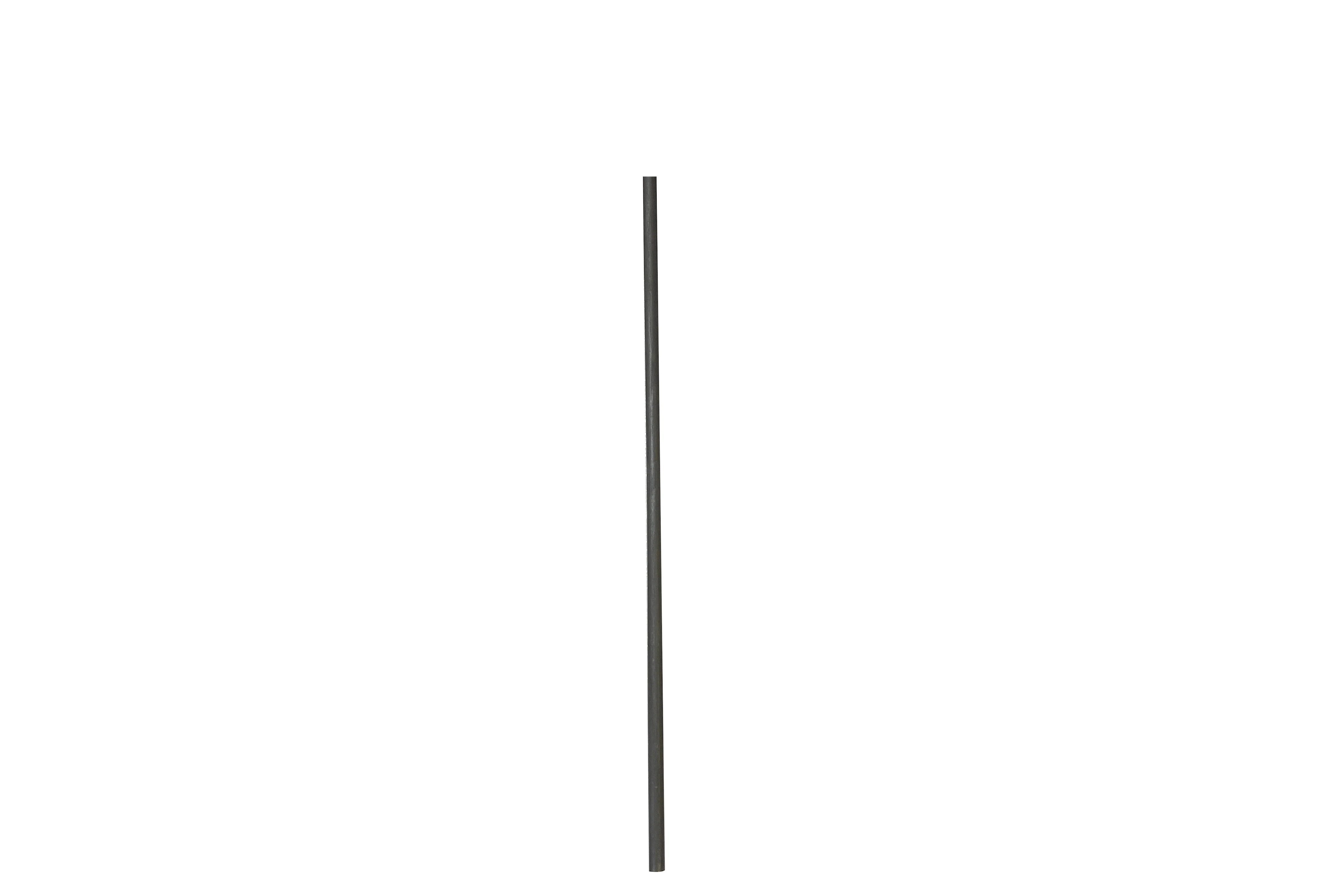

Eletrolyte Electrodes and Crucible	Three graphite electrodes (6 mm diameter) are inserted into an electrolytic crucible through the air-tight water-cooled flange. Electrolytic crucible made of graphite is available upon request, up to 150 mm diameter x 160 mm H The electrode lift fixture is built in the to flange One recirculating water chiller with 16L/minute flow is included for cooling the electrodes One vacuum pump with a 156L/minute speed is included to remove oxygen before operation
DC Power Supply (optional)	Digital DC power supply is optional Voltage: 0- 30VDC adjustable. Current: 0 - 70A adjustable. A higher current DC power supply is available up to 2000A at extra cost
Compliance	CE certification NRTL certification is available upon request at an extra cost
Data Sheet

Select Max Temperature

From $18,544.75

Original: $52,985.00

-65%

1300oC or 1700°C Molten Salt Electrolytic Furnace with 8" Cubic Atmosphere Controlled Heating Chamber - VEF1700—

$52,985.00

$18,544.75
