Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS
HomeStore

Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS

Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS

VBF-MS series is a desktop molten salt reactor with a choice of reactors made in stainless steel or titanium. The system comes with a top flange with multiple feedthroughs to accommodate three electrodes, a K-type thermocouple for in-situ temperature reading, and a gas inlet and outlet. Such a design allows studies for molten salt electrolysis or battery on a lab scale.

Features

  • Choice of reactor vessel: SS 316, SS310, Nickel-based superalloy
  • Three-electrode system
  • Gas inlet and gas outlet
  • Up to 600°C
  • Vessel size  Ø76 × Ø70 × 300 mm

SPECIFICATION:

Power
  • Choice of working voltage
    • AC 110-120V, Single Phase, 50/60Hz, 20A, 1.5KVA
    • AC 208-240V, Single Phase, 50/60Hz, 15A, 1.8KVA

Heating Area
  • Ø120 ID × 200 H mm

Heating Rate
  • <10 °C/min

Max. Heating Rate
  • <20 °C /min

Temperature controller
  • Digital temperature controller
    •  PID automatic control and auto-tune function.
    • 30 programmable segments for precise process
    • Built-in protection for overheating and broken thermocouples.
    • Temperature stability ± 1°C
  • One Temperature reader for in-situ temperature measurement
  • Two Omega K-type thermocouples included
    • One for furnace temperature control
    • One for in-situ temperature monitoring inside the vessel.
  • RS485 port is included for the remote control by MTS03 LabVIEW software

Choice of Reaction Vessel
  • Choice of materials for the reaction vessel
    • Stainless steel 316 (<600°C)
    • Stainless steel 310 (<900°C) with a water-cooling flange, only for the 208-240 VAC version
    • Nickel-based superalloy (<1100°C) with a water-cooling flange, only for the 208-240 VAC version
    • Vessel dimension: Ø 76 x Ø 70 x D 290 mm
  • DN80ISO-K flange with six 1/4" compression tube ports for 6 mm OD tube
    • Three ports are reserved for electrodes
    • Two ports are reserved for the gas inlet and gas outlet
    • One port is reserved for in-site temperature measurement
  • Pressure < 3 psig

Temperature controller
  • One digital temperature controller is built in with an accuracy of ±1°C
    • PID automatic control and auto-tune function.
    • 30 programmable segments for precise process
    • Built-in protection for overheating and broken thermocouples.
  • Two Omega K-type thermocouples included
    • One for furnace temperature control
    • One for temperature monitoring inside the vessel.
  • RS485 port is included for the remote control.

 Dimension
  • Control Unit: 340mm L x 300mm W x 145mm H
  • Furnace: 350mm L x 265mm W x 540mm H

 Shipping package size
  • 40" x 23" x 31"

 Shipping weight
  •  109 lbs
Compliance
  • CE Certified
  • NRTL Certification is available upon request; additional charges will apply
Options
  • Click here to see more Molten salt furnaces
Select Choice of Reactor
Select Choice of Voltage
From $10,598.00
Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS—
$10,598.00

More Images

Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS - Image 2

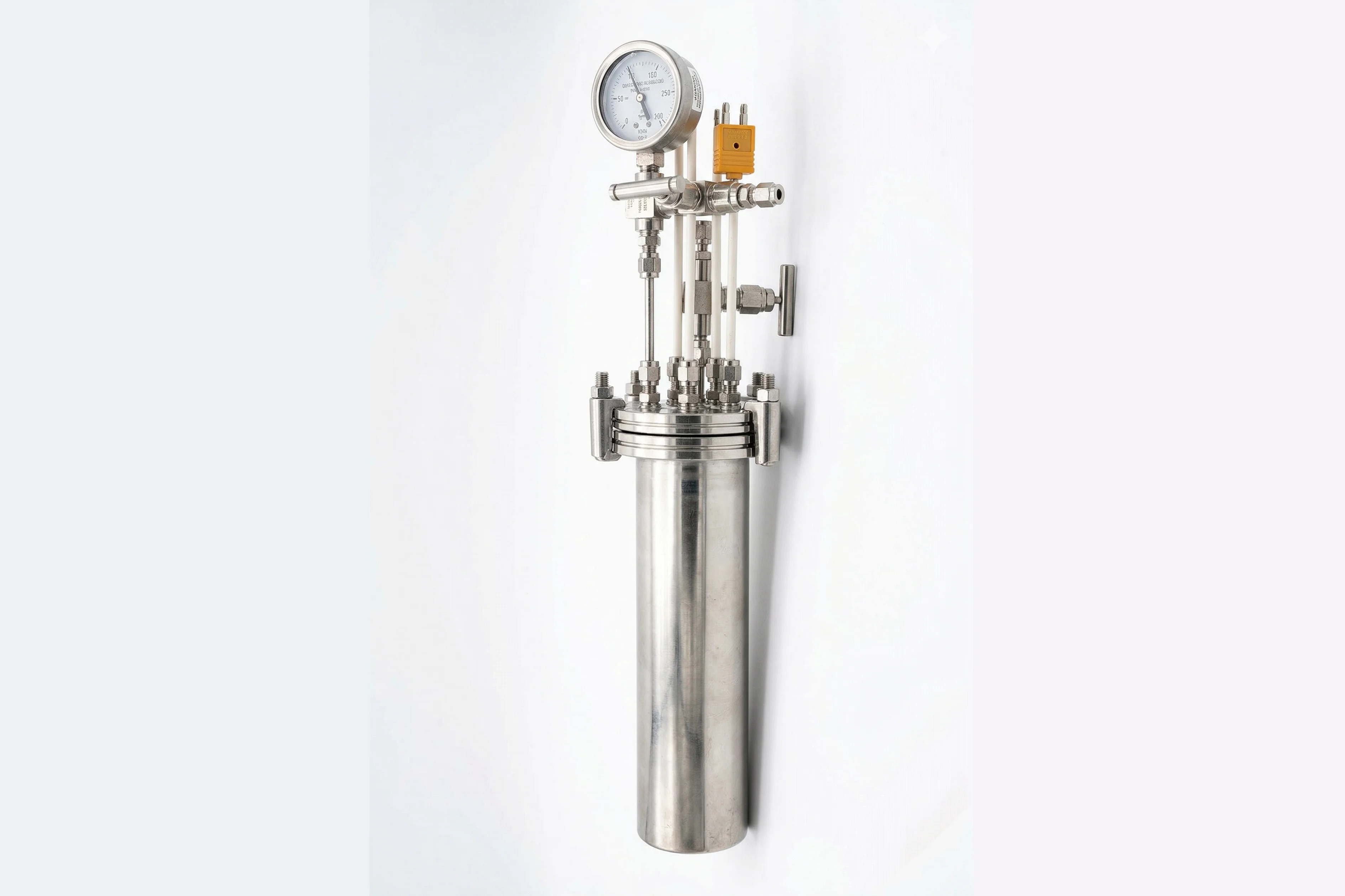

Three-electrode Molten Salt Reactor with a 3" stainless steel vessel - VBF-MS - Image 3
