10 Crucibles Automatic Induction Melting and Casting System with Stirring Function up to 2000ºC- SPG50K25AB-GB

• 80KHz, 15KW, 208- 240VAC, 50/60 Hz, three-phase, for max working temperature of 2000ºC

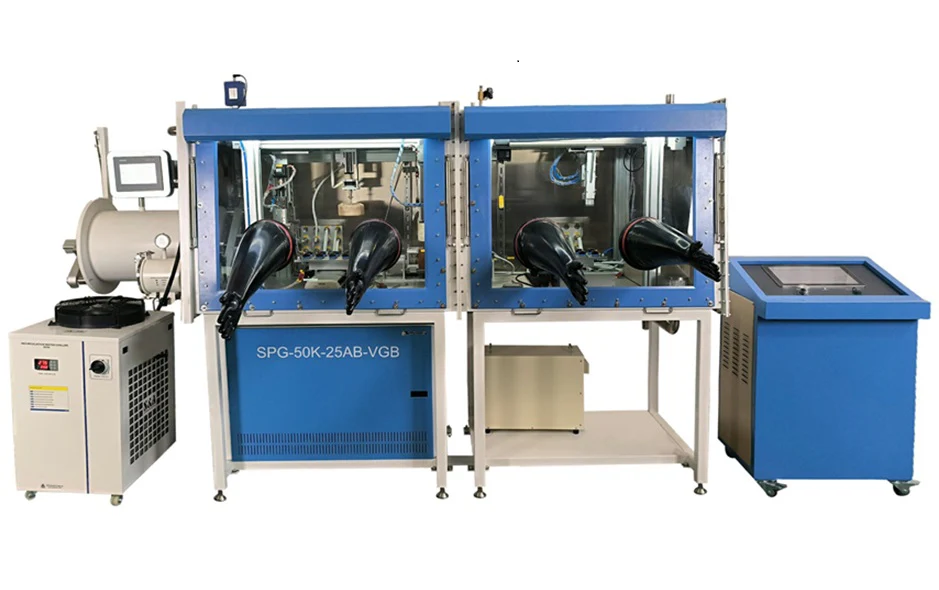

Glovebox

• The dual chamber glovebox is made of stainless steel 304
• Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)
• Openable front window panel (tempered glass, 8 mm thick)
• Antechamber doors can be opened and closed automatically as programmed in the control panel
• Gas purification system with automatic purging and regeneration function
• Gas purification: O2 < 1 ppm and H2O < 1 ppm
• Click the pic in the left to see the detailed specification.

Induction Heater

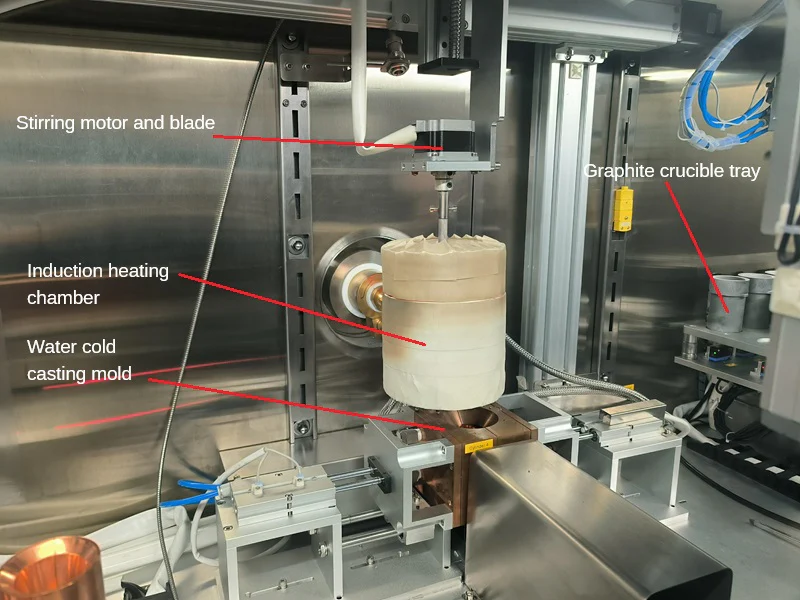

• A water-cooled Induction coil with thermal insulation and a liftable cover is placed inside the glovebox.
• One rotary blade is built to string melt

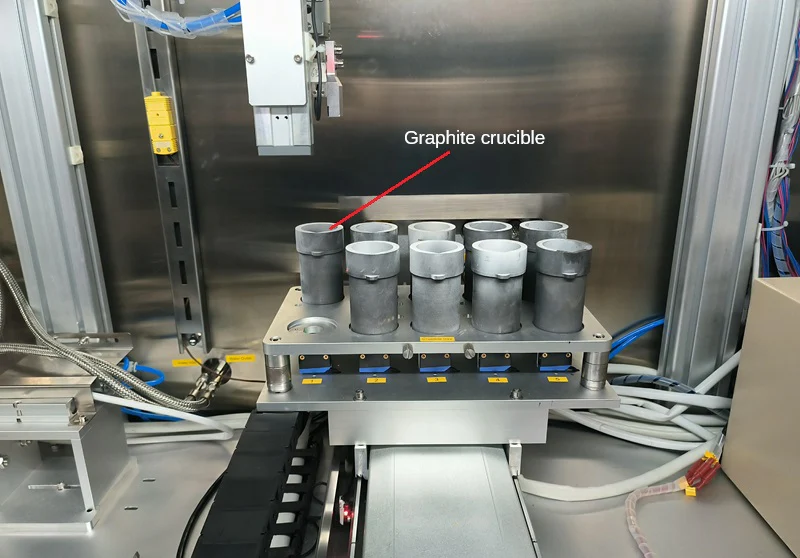

• 10 graphite crucibles are included in a tray
• 10 copper casting molds are included in a water-cooled station

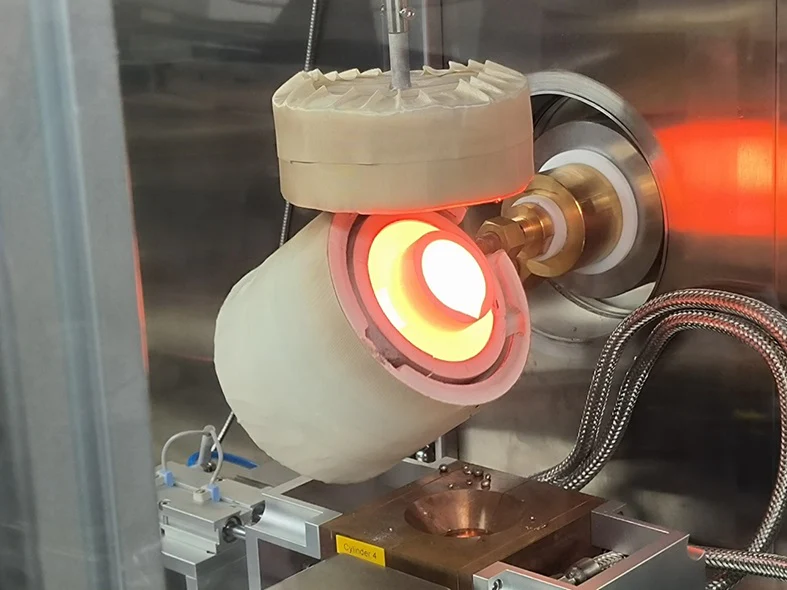

• The Induction heater is tiltable for casting melt into a water-cooled copper crucible.

Cucible and Casting mold

• 10 melting crucibles are made of graphite
• 10 casting mold is made of copper with water cooling.
• Crucible and mold size can be made upon request

• Precision digital temperature controller with Automatic PID tuning
• 30 segments programmable for controlling heating and cooling rate as well as dwell time
• Overheating & thermocouple failure protection
• +/- 2 ºC temperature accuracy
• The thermal couple is included, and the T/C type is dependent on the maximum. melting temperature

The processing procedure is controlled by a computer as follows:

1.  The outside door of the antechamber opens
2. Put the crucible and casting mold in the antechamber manually or AGV
3. After vacuum and inert gas purging, the robotic arm put crucible tray in a station
4. Put a crucible into the induction coil, and start heating and stirring after melting
5. After melting, open the heater cover, tilt the crucible, let melt cast into a water-cooled mold
6. Put the mold back in the tray station, then repeat the melting cost
7. Roughly need 50 minutes to finish one sample

• Temperature range: 5 - 30°C
• Water Flow Rate: 58 L/min
• Water Tank: 15 Liters made of stainless steel

• NRTL or CSA Certification is available upon request at an extra cost
