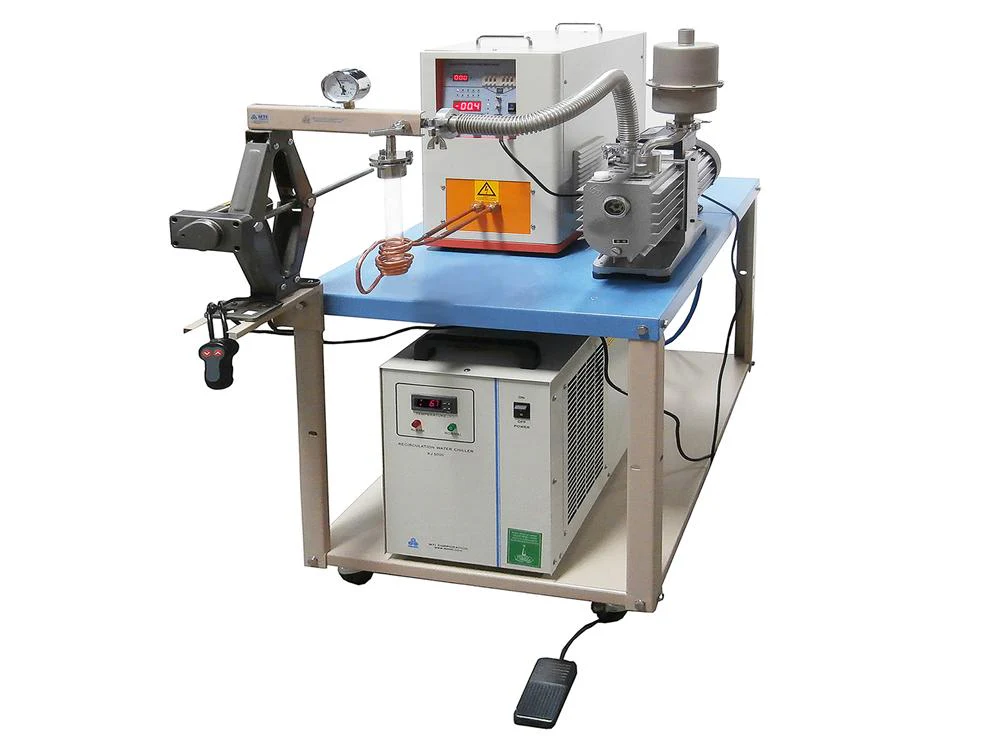

Compact 1" Levitation Melting System - SPG-6VMS

• Working Voltage: 208 - 240 V AC (Single Phases), 50/60Hz (50A air breaker is required)
• Input Current: 5 - 30 A Adjustable

• Output Frequency: 100 - 500 kHz Adjustable

• Max. Output Power: 6 KW
• Required Water Flow Rate: > 3 L/min
• Required Water Pressure: >=0.2 MPa (29 psi)
• Please click the picture on the left to see the detailed structure

• A multi-turn helical conical heating coil is used to balance the three-dimensional force
• Can successfully levitate electrically conductive material up to 10g

• Single End Opened Quartz tube: 25mm(OD) x 22mm(ID) x 180mm(L)
• Vacuum Sealing Flange for 1'' O.D tube with double high-temperature silicone O-rings
• 1/4'' barbed hose fitting, KF25 vacuum port, mechanical pressure gauge, and two needle valves are built-in on the supporting frame
•

• Cooling Capacity: 722 kCal/h (2866 Btu/h)
• Max. Water Flow Rate: 16 L/min
• Temperature range to control: 2 - 35°C
• Please click the picture left for more details

• One 156L/m Rotary Vane Vacuum Pump with Exhaust Filter is included
• Three KF25 quick clamps and one bellows are included for immediate use
• Max. Vacuum Pressure:
  • 10^-2 torr by the mechanical pump
  • 10^-5 torr by molecular pump

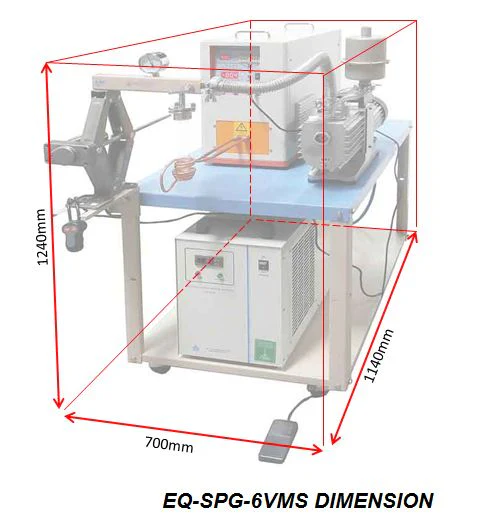

• The induction heater, water chiller, and vacuum pump are integrated on a heavy-duty mobile steel cart: 600mm(L) x 800mm(W) x 600mm(H)
• Motor-driven manipulator provides rigid support and easy height adjustment

• NRTL or CSA Certification is available upon request at extra cost, please contact our sales representatives for a price quote. Certify standards include: 1) Induction heater: UL61010-1 & UL499; 2) Vacuum Pump: UL1450; 3) Water Chiller: UL61010 & UL1995

Warning

Click here to learn more about the installation of a gas regulator.

• This system is suitable for Al, Mg, Copper, and its alloy with weight <10g
• Please click here to learn how to set up the crucible for melting
• Attention: A pressure regulator must be installed on your input gas tank ( click picture below to review ) and have the output gas pressure set below 3 PSI at all times. Gas pressure exceeding over 3 PSI may cause irreversible damage to the furnace chamber.
• Never heat the furnace without flowing gas. Please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages. The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min )

• For customization inquiries, please complete the "Customize Induction Heating System Form" and return it to [email protected]
