7 KW (30-80Khz) Bench Top Induction Heater with Timer Control - SP-15AB
HomeStore

7 KW (30-80Khz) Bench Top Induction Heater with Timer Control - SP-15AB

7 KW (30-80Khz) Bench Top Induction Heater with Timer Control - SP-15AB

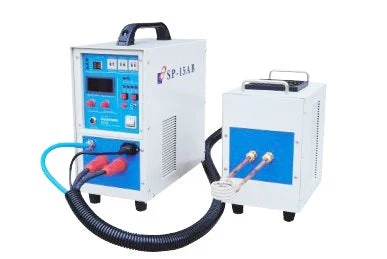

SP-15AB Dual Station 15KW Induction Heater is designed for a material research lab to quickly melt and perform heat treating to metallic materials up to 1kg. The 2m long power cable allows the heating station and the control station to be located up to 2m from each other for operation safety.

SPECIFICATIONS:
Working Voltage
208-240V AC, 50/60 Hz, Single Phase
Max. Input Current
  • 34 Amp (Min. 40A breaker required)
  • Power cable included (It is suggested to use NEMA L6-50P twist-lock plug with 10AWG power cable)
Output Frequency 30-80 kHz
Heating Current 200-600 Amp
Max. Input Power 7 KW
Duty Cycle 80%
Max. Distance Between Heater and Controller 2m
Max. Sample Weight 1 kg
Control Panel
  • Automatic timer control or Manual control selectable
    • Manual Control: by Foot Pedal
    • Automatic Heating Time: 1-99 Seconds
    • Automatic Dwell Time: 1-99 Seconds
    • Automatic Colling Time: 1-99 Seconds
Air Cooling Rear Fan
Water Cooling
  • Temperature range: 5 - 30°C
  • Water Flow Rate: 58 L/min
  • Water Tank: 15 Liters made of stainless steel
  • Note: It is recommended to use a specific coolant to get the best performance. It is normal to wait a couple of minutes for cooling down after several trials of heating
  • Note: the input voltage for the water chiller is 220V

Induction Coil & Accessories


  • Two coils with the following dimensions are included:
    • Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H)
    • Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H)
  • Foot Pedal with Cable and water connector are included
Display The digital display shows output power and current
Compliance
  • NRTL or CSA certification is available upon request at extra cost, please contact our sales representatives for a quote











Application Notes
  • Applications: Applications: please click here to learn the Fundamentals of Induction Heating
Melting
Sintering
Annealing
Heat treatment
Quenching
  • The heater will shut down if over output occurs. Pls reduce coil cycle number to keep the heater operating under Max power
  • Melting time and temperature are related to materials, the crucible, refractory insulation, etc.
  • You may melt metal samples in a vacuum using a 60mm dia half-open quartz tube with a vacuum flange/valve. Please click the picture below for details on how to set up the vacuum tube
  • For induction heating in the air or under the glove box, please contact MTI for the design below.

Temperature Controller (Options)
  • One temperature control port built-in back
  • In order to control temperature control by thermocouple for this induction unit, please order the temperature controller MTC-808
  • You may also to consider order the complete system  SP7TC  from us
  •

STANDARD PACKAGE:

Item Description Qty Pictures
1 Heating Station 1
2 Control Station 1
3 Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H) 1
4 Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H) 1
5 Cable for connecting Heating Station and Control Station 1
6 Foot Pedal with Cable 1
7 Water Cooling Fitting and clamp (Pipe is not included) 1
8 Fuses 4
