Larger Digital Temperature Controlled Recirculating Water Chiller with 58L / min Flow, 17K BTU/hr - KJ6200
Larger Digital Temperature Controlled Recirculating Water Chiller with 58L / min Flow, 17K BTU/hr - KJ6200

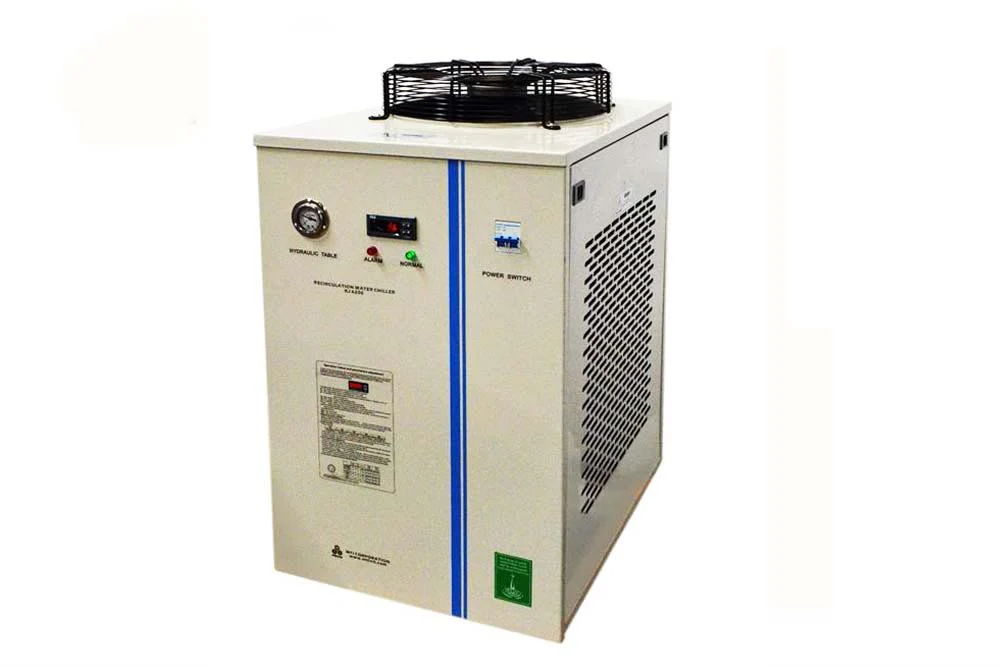

KJ6200 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 58L/min ( 15 G/min ). It eliminates scale buildup, sewerage cost, and tap water cooling expenses.
This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy moving. The temperature range can be adjusted from 5 to 35°C. It is suitable for MTI CZ crystal growing, larger tube furnaces, high power induction heaters
This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy moving. The temperature range can be adjusted from 5 to 35°C. It is suitable for MTI CZ crystal growing, larger tube furnaces, high power induction heaters
SPECIFICATIONS
| Power Supply | AC 208 -240V, single-phase, 2.12 kW Both 50 Hz and 60 Hz are available. |
| Cooling Capacity | 5004W (17500Btu/hour) |
| Compressor | Rotary Compressor (1.68 KW) |
| Refrigerant | R410a, 1.2 kg |
| Temperature Control | 5~30 °C |
| Temperature Accuracy | ± 0.3 °C |
| Heating Exchanger | Stainless steel |
| Water Flow Rate (Head Pressure) |
58 Liter / minute ( 28 meters high, 40psi )
|
|
Water Tank
|
|
|
Pipe Connection
|
|
| Water Filter |

|
| Noise |
80dBA at 0.25 m away.
|
| Protection |
Protected from over-temperature and Min 2 L/min water flow
|
| Operation Instructions |
 |
| Compliance |
|
Application Notes
|
|
STANDARD PACKAGE
| No. | Description | Qty | Picture (Click to enlarge) |
| 2 | Water pipe | 3 |  |
| 3 | Alarm connecter | 1 | |
| 4 | Outfall washer | 2 | |
| 5 | Sealing tape | 1 | |
| 6 | Fixing screw and washer | 4 | |
| 7 | Tighten wrench | 1 |
