Mini Induction Heating Furnace up to 1600°C - IH-1600

Mini Induction Heating Furnace up to 1600°C - IH-1600

Mini Induction Heating Furnace up to 1600°C - IH-1600

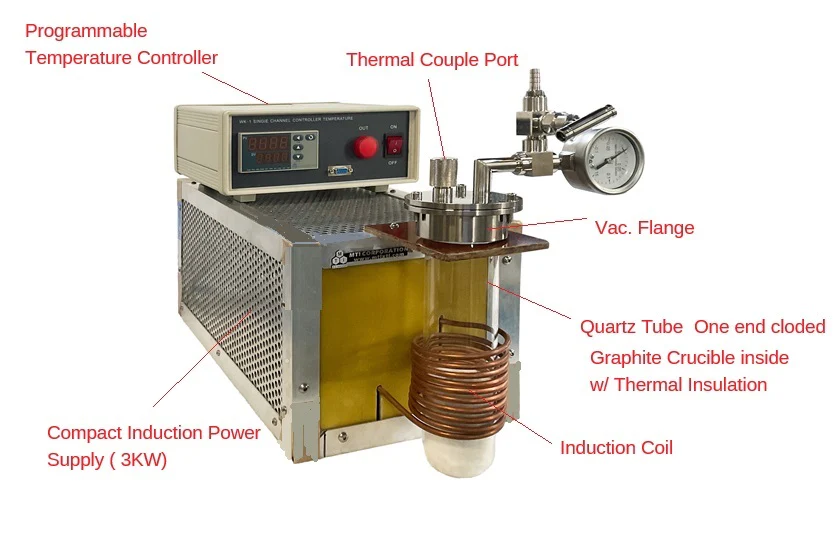

IH-1600 is a mini induction heater up to 1600 °C, which can be placed inside a standard globebox through an antechamber. Also, a 2" quartz tube and flange can be chosen to operate sample heating under vacuum and controlled atmosphere outside the glovebox. It is an economic furnace for heating or melting a small amount of materials

SPECIFICATIONS

Power Supply	208 - 240VAC 50/60Hz, single phase 3 kW
Heating and temperature control	Induction heating with an induction coil A programmable temperature controller is included which is separated from the induction power supply B-type thermocouple included Max working temperature 1700 °C Max. heating rate: > 100 °C / minute
Crucible	One graphite crucible, 25 ID × 40 mm Depth, is included Fibrous alumina felt is used as thermal insulation
Quartz tube & Vacuum flange & Vacuum Pump (Optional)	If you need to heat a sample under vacuum or inert gas, please choose a one-end closed quartz tube of 60 mm OD （Pic. 1) and a flange (Pic. 2) at extra cost Max. Vacuum: 10- 2 torr by mechanical pump ( optional Pic. 3)) Pic. 1 Pic.2 Pic.3
Operation Environment	Ambient temperature 30% – 93% RH
Water Cooling	16 L/m water cooling is required. KJ5000 water chiller is optional at an extra cost.
Compliance	CE certified NRTL certification is not available

Select Upgrade options

From $1,748.25

Original: $4,995.00

-65%

Mini Induction Heating Furnace up to 1600°C - IH-1600—

$4,995.00

$1,748.25

Mini Induction Heating Furnace up to 1600°C - IH-1600

IH-1600 is a mini induction heater up to 1600 °C, which can be placed inside a standard globebox through an antechamber. Also, a 2" quartz tube and flange can be chosen to operate sample heating under vacuum and controlled atmosphere outside the glovebox. It is an economic furnace for heating or melting a small amount of materials

SPECIFICATIONS

Power Supply	208 - 240VAC 50/60Hz, single phase 3 kW
Heating and temperature control	Induction heating with an induction coil A programmable temperature controller is included which is separated from the induction power supply B-type thermocouple included Max working temperature 1700 °C Max. heating rate: > 100 °C / minute
Crucible	One graphite crucible, 25 ID × 40 mm Depth, is included Fibrous alumina felt is used as thermal insulation
Quartz tube & Vacuum flange & Vacuum Pump (Optional)	If you need to heat a sample under vacuum or inert gas, please choose a one-end closed quartz tube of 60 mm OD （Pic. 1) and a flange (Pic. 2) at extra cost Max. Vacuum: 10- 2 torr by mechanical pump ( optional Pic. 3)) Pic. 1 Pic.2 Pic.3
Operation Environment	Ambient temperature 30% – 93% RH
Water Cooling	16 L/m water cooling is required. KJ5000 water chiller is optional at an extra cost.
Compliance	CE certified NRTL certification is not available

Product Information

Shipping & Returns

Description

IH-1600 is a mini induction heater up to 1600 °C, which can be placed inside a standard globebox through an antechamber. Also, a 2" quartz tube and flange can be chosen to operate sample heating under vacuum and controlled atmosphere outside the glovebox. It is an economic furnace for heating or melting a small amount of materials

SPECIFICATIONS

Power Supply	208 - 240VAC 50/60Hz, single phase 3 kW
Heating and temperature control	Induction heating with an induction coil A programmable temperature controller is included which is separated from the induction power supply B-type thermocouple included Max working temperature 1700 °C Max. heating rate: > 100 °C / minute
Crucible	One graphite crucible, 25 ID × 40 mm Depth, is included Fibrous alumina felt is used as thermal insulation
Quartz tube & Vacuum flange & Vacuum Pump (Optional)	If you need to heat a sample under vacuum or inert gas, please choose a one-end closed quartz tube of 60 mm OD （Pic. 1) and a flange (Pic. 2) at extra cost Max. Vacuum: 10- 2 torr by mechanical pump ( optional Pic. 3)) Pic. 1 Pic.2 Pic.3
Operation Environment	Ambient temperature 30% – 93% RH
Water Cooling	16 L/m water cooling is required. KJ5000 water chiller is optional at an extra cost.
Compliance	CE certified NRTL certification is not available
