Desktop Induction Melting Furnace w/ Automatic Rotary Casting Function up to 1700°C @ 100 g - IMCS-2000-S
HomeStore

Desktop Induction Melting Furnace w/ Automatic Rotary Casting Function up to 1700°C @ 100 g - IMCS-2000-S

Desktop Induction Melting Furnace w/ Automatic Rotary Casting Function up to 1700°C @ 100 g - IMCS-2000-S

IMCS-2000-S is a desktop Melting & Casting furnace for operation at ambient or slightly positive pressure The automatic rotary chamber with an induction heater can melt up to 100 g material (use Fe as reference) up to 1700°C under inert gases. It is an excellent tool to explore new-generation alloys.

SPECIFICATIONS

Power Supply
  • 208 - 240VAC 50/60Hz, single phase
  • 5 kW
Heating and temperature control
  • Induction heating and casting in a closed chamber.
  • Single-point temperature control
  • Temperature control via a B-type thermocouple
  • Adjustable heating power.
  • Up to 1700 degrees Celsius.
Melting and Casting
  • The automatic tilting function allows the melt is cast into the mold immediately.
    • One graphite crucible 32 ID × 60 mm Depth ) (about 100 g Fe)
    • One quartz insulation for graphite crucible (39 ID × 60 mm Depth)
    • One quartz-casting lip
    • One graphite casting mold ( 36 ID × 60 mm Depth)
  • Note:
    • Graphite crucible and quartz ceramic insulation are consumable。  Spare is available upon request..
    • Customized melting crucibles are available upon request to avoid  some material reacts with graphite, such as  Alumina and BN
Vacuum and Atmosphere
  • Max. Vacuum~5 torr (via an external mechanical pump); ~200 torr (via the internal pump).
  • Atmosphere: 800 - 900 torr under Ar gas.
  • Max pressure: 1100 torr
  • One internal mechanical pump is included.
  • One built-in Ar gas venting port.
  • Note: Ar gas cannot continuously flow through the chamber during melt-casting.
  • Note: The furnace is designed to work under positive Ar gas instead of a high vacuum. For high-vacuum melting, please consider IMCS-2000.
Control Panel
  • Touch Screen and PLC digital control
Operation Environment
  • Ambient temperature
  • 30% – 93% RH
Cooling
  • 16 L/m water cooling is required.
  • KJ5000 water chiller is optional at an extra cost.

Air compressor

(Optional)
  • One air compressor is required for better vacuum, but not included. You may click the link below to order
Compliance
  • CE certified
  • NRTL certification is not available



Select Upgrade options
From $39,989.00
Desktop Induction Melting Furnace w/ Automatic Rotary Casting Function up to 1700°C @ 100 g - IMCS-2000-S—
$39,989.00

More Images

Desktop Induction Melting Furnace w/ Automatic Rotary Casting Function up to 1700°C @ 100 g - IMCS-2000-S - Image 2

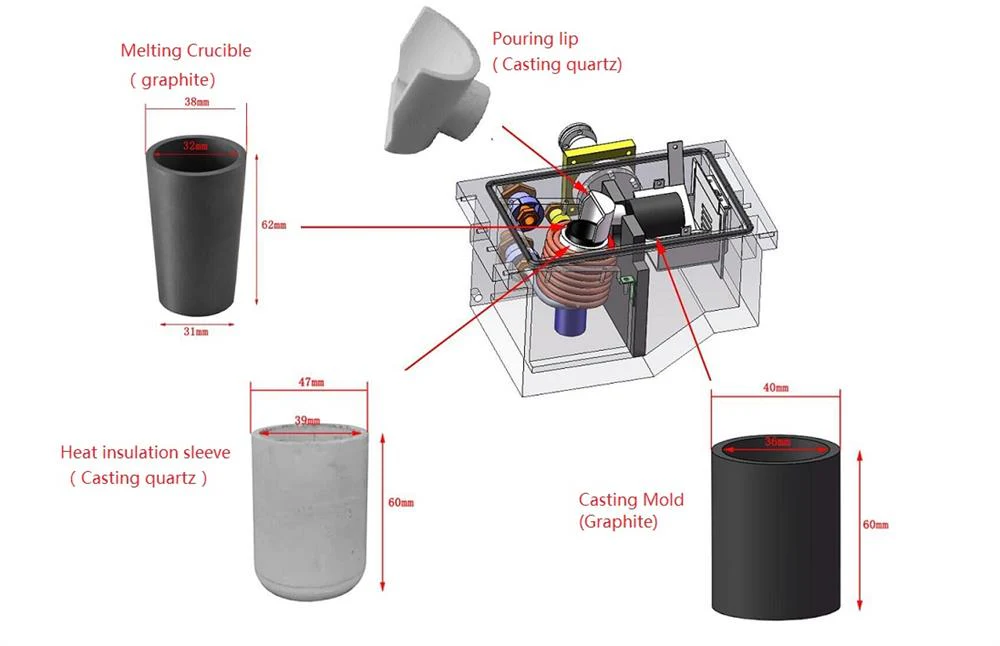

Desktop Induction Melting Furnace w/ Automatic Rotary Casting Function up to 1700°C @ 100 g - IMCS-2000-S - Image 3
