Three Zone Alumina Tube Furnace with Vacuum* Flanges (60, 80 or 100mm OD. 1700C Max.) - GSL-1700X-III

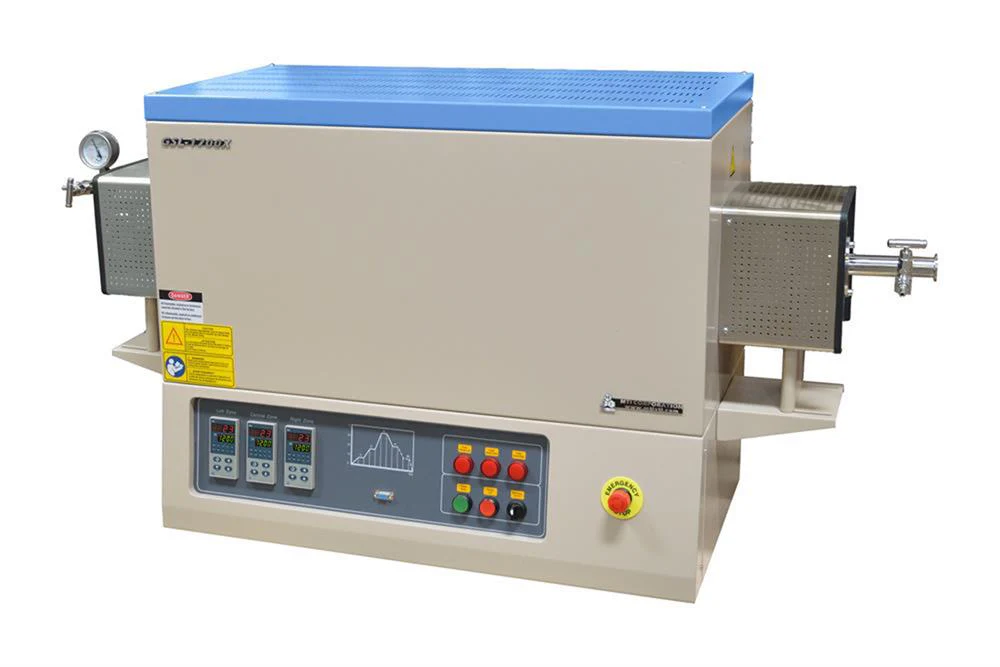

GSL-1700X-III is a three-zone tube furnace with a complete vacuum sealing flange. Each heating zone is 12" in length and controlled by three precision 30-segment digital temperature controllers independently. One zone (center zone) is heated by Super-1800 MoSi2 elements up to 1700°C, and another two zones are heated by SiC elements up to 1400°C. The tube furnace can create various thermal gradients by adjusting three zones. It is an excellent furnace to prepare functional materials under thermal gradient, and can also be used for epitaxial film growth by CVD.

SPECIFICATIONS

Furnace Structure	Double-layer steel case with two cooling fans, which ensure low surface temperature High purity fibrous alumina insulation for energy saving
Power	10KW (75A air breaker required )
Voltage	AC 208-240 Single Phase, 50/60 Hz
Max. Temperature	Zone one: 1400 °C (1500 °C<1hour), Zone two: 1700 °C Zone Three: 1400°C (1500 °C<1hour)
Max. Heating Rate	<=10 °C /min
Normal Heating/cooling Rate	5°C /min
Thermal Block Placement	Two thermal blacks are included. Please picture below to learn how to place them inside the tube You may order flange support to avoid the tube rotating ( click Pic below right )
Heating Zone Length	Three zones: total 25" (630 mm) heating zone (including two refractory separators) Zone 1: 7.5" (190 mm) heated by 4 pcs U-type SiC(30x300 mm) Working temperature 400 - 1400°C (1500 °C<1hour) Heating rate: 10°C/min Zone 2: 10" (250 mm) heated by 6 pcs U type MoSi2(30x300 mm) working temperature 800 - 1700°C Max. Heating rate: 5°C/min Zone 3: 7.5" (190 mm) heated by 4 pcs U type SiC(30x300 mm) Working temperature 400 - 1400°C (1500 °C<1hour) Max. Heating rate: 10°C/min Constant Temperature Zone Length ( 3 controllers at the same temperature): 400mm with/- 1C)
Tube Size and Flange	99.8% purity Alumina Tube 2-3/8" ( 60mm) O.D.x 2-1/8"I.D. (54mm) x 48" (1200mm) Length 60 mm stainless steel vacuum sealing flange with valve and meter is included Two porous ceramic blocks are included to protect flange from heating radiation Vacuum pressure can reach 10^-4 torr with the turbo vacuum pump
Fitting Ports	In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter. Please click the underline to order. For supplying high-pressure gas, you may replace the standard barbed hose fitting with the Swagelok Tube Fitting. Please click the underline to order
Temperature Controllers	Three digital controllers with microprocessor-based PID control and self-tuning Each has 30 segments programmable with protection for overheated and broken thermocouples Temperature Accuracy: +/- 1ºC Thermal Couple: One B type(210mm long TC for the central zone), two S type (210mm long TC for side zones)
European Temperature Controllers (optional upgrade)	1 heating channel 1 program of 8 or 24 segments Alarm Relay: Form 'A' and Form ‘C’ built-in Digital Communications: RS-485 Temperature Accuracy: ± 0.1ºC Recipes: Using a PC tool, recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Power Cable & Plug	10 feet length 8-3 AWG heavy-duty UL-approved power cable is included An extra length cable can be ordered by clicking the picture left The plug is not included. You can order from the local hardware store according to the female plug in your lab
Laptop, software & WiFi Control (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) *LabVIEW-based Temperature Control System (MTS01)*enables the user to edit the temperature profile, manage heat-treatment recipes, record and plot data for MTI furnaces.
Compliance	CE Certified NRTL or CSA Certification is available upon request; additional charges will apply
Application Notes	How to set up the ceramic tube and vacuum flange for the MTI Tube furnace. How to use and maintain the Alumina tube in the MTI high-temperature tube furnace. In order to obtain accurate temperature inside the tube furnace, you need to calibrate the temperature before use. Please click here to learn how.
Optional Parts	Please click here to order a spare alumina tube 60 mm O.D. x 1200 mm L Please click here to order spare 1800oC grade MoSi2 heating elements(6pcs) Please click here to order a heavy-duty mobile cart for carrying the furnace Please click here to order a digital vacuum gauge for precision vacuum control up to 10^-4 torr
Warnings Please click here to learn the installation of a gas regulator.	The tube furnaces with alumina tubes are designed for use under vacuum and low pressure < 0.02 Mpa / 0.2 Bar/ 3 PSI Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator. The gas flow rate should be limited to < 200 SCCM ( or 200ml/min ) Vacuum limit definition for all alumina tube furnaces: * Vacuum pressures may only be safely used up to 1500°C
