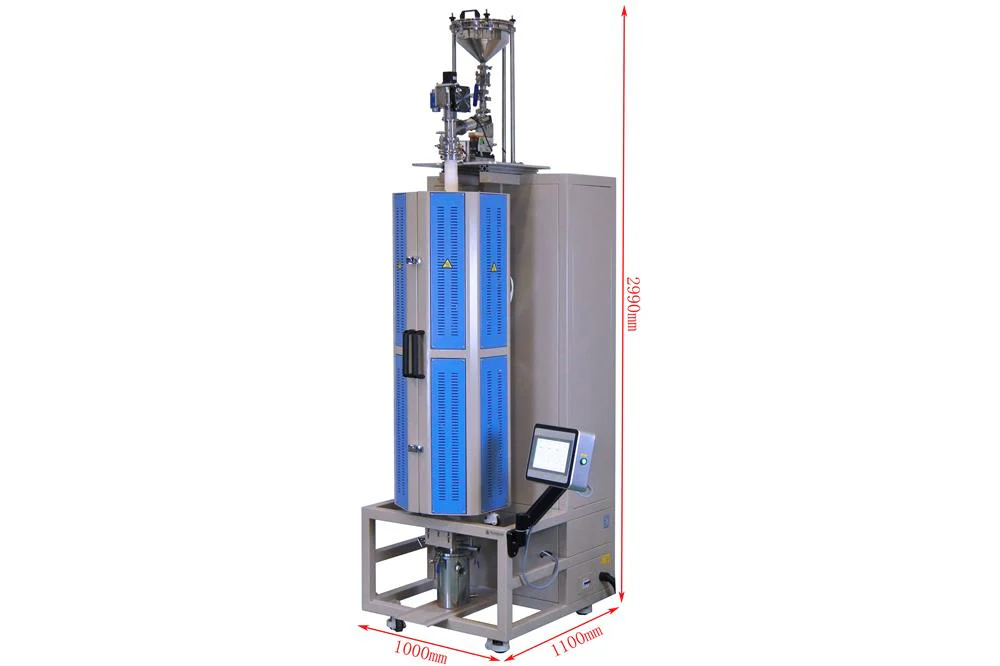

1700 Vertical 3-Zone Spheroidizing Furnace OTF-1700X--VT-AF

• Three temperature zones can form a temperature gradient
• Double shell structure with air cooling system
• Equipped a speed-adjustable vibration feeder
• Equipped a vertical three-temperature zone tube furnace
• Equipped a water-cooling collection tan

Specifications

• Power supply: Tthree-phase AC380V 50/60HZ (≥63A Aar circuit breaker needed)
• Power: 30KW Max.
• Continuous Working Temperature: 1600 .
• TType B Thermocouple
• Heating Zone: 400mm + 400mm + 400mm, .
• Heating rate: Below 1400 ≤ 10 / min; 1400 to 1600 ≤ 5 / min.
• Tube size: φ 60*1800mm

Vibration Feeder

• SS Chamber Volume: 5L
• Vacuum10-2torr ( mechanical pump), 10-4Torr (molecular pump).
• Feeding Rate: 20ml~90ml/min
• Outlet Interface: KF25
• Sample Diameter: ≤ 5mm

Collection Tank

• Connected with the upper flange by quick connection.
• A 30mm diameter observation window for easy observation of samples

• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default DB9 PC communication port
• MET Certified

Laptop, software & WiFi Control(Optional)

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
• Labview Based Temperature Control System (MTS01) enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.
• The above features are available upon request at an extra cost (up to $1,000)

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at extra cost.
