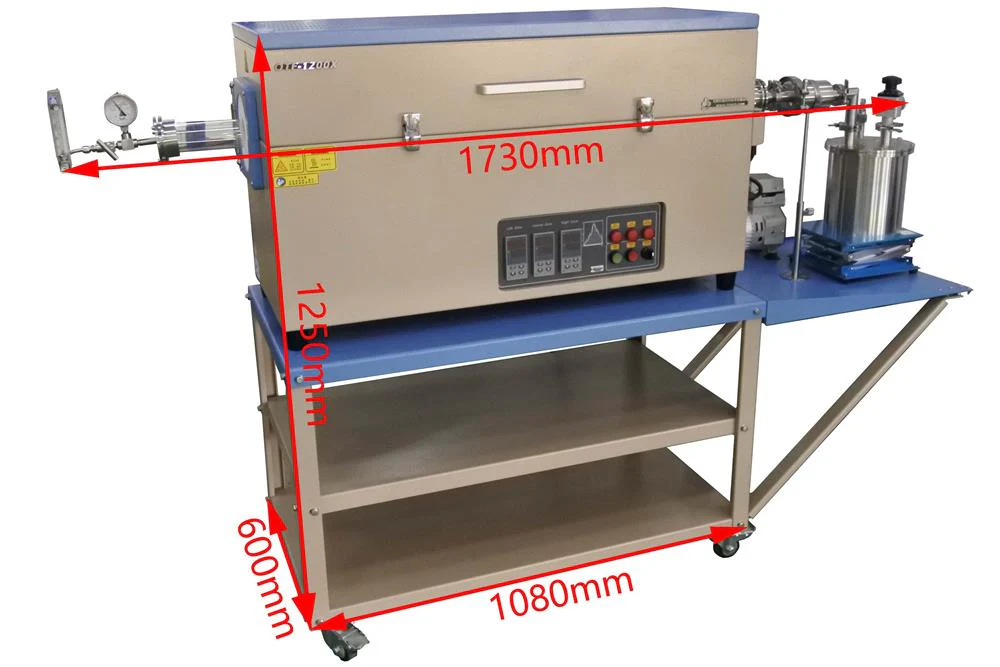

1200°C 3-Zone Ash Collection Tube Furnace - OTF-1200X-III-AFT
OTF-1200X-III-AFT is a 3-zone Ash collection Tube Furnace equipped with a filtering and vacuuming system and a double-layer steel case with a high-purity alumina chamber. It is suitable for collecting ashes from burning research samples and tail gas treatment.
SPECIFICATIONS:
| Rated voltage | 220VAC±10%, Single Phase, 50Hz | ||
| Power consumption | 7.5 KW | ||
| Heating zone Length | Three zones: 900 mm in total, 300mm each | ||
| Quartz Tube | Φ60×1400mm | ||
| Heating temperature | • Max. Heating Temperature: 1200°C(≤30min) • Continuous Heating Temperature: 1100°C • Max. Heating Rate: 20°C/min |
||
| Temperature Controllers |
• Three stand-alone MTE certified Temperature controllers with 30 programmable segments
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection. • Over temperature protection and alarm allow for operation without the attendant. • +/- 1 ºC temperature accuracy. • Three K-type thermocouples (one for each zone). • DB9 PC Communications Port. |
||
| Sealing Flange Collection/Filtering System  |
Left Flange Right Flange: |
||
| Laptop, software & WiFi Control(Optional) |
• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use.
• Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. • A wireless remote control provides up to 300 meters of operating range. • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. Note: The software is only compatible with MTI’s Yudian Temperature Controller
|
||
| Vacuum (optional) |
• Vacuum level can reach 10E-2 torr by the quality mechanical vacuum pump and 10E-5 torr by the turbo pump • Optional: You may order digital molecular pump for faster and better vacuum |
||
