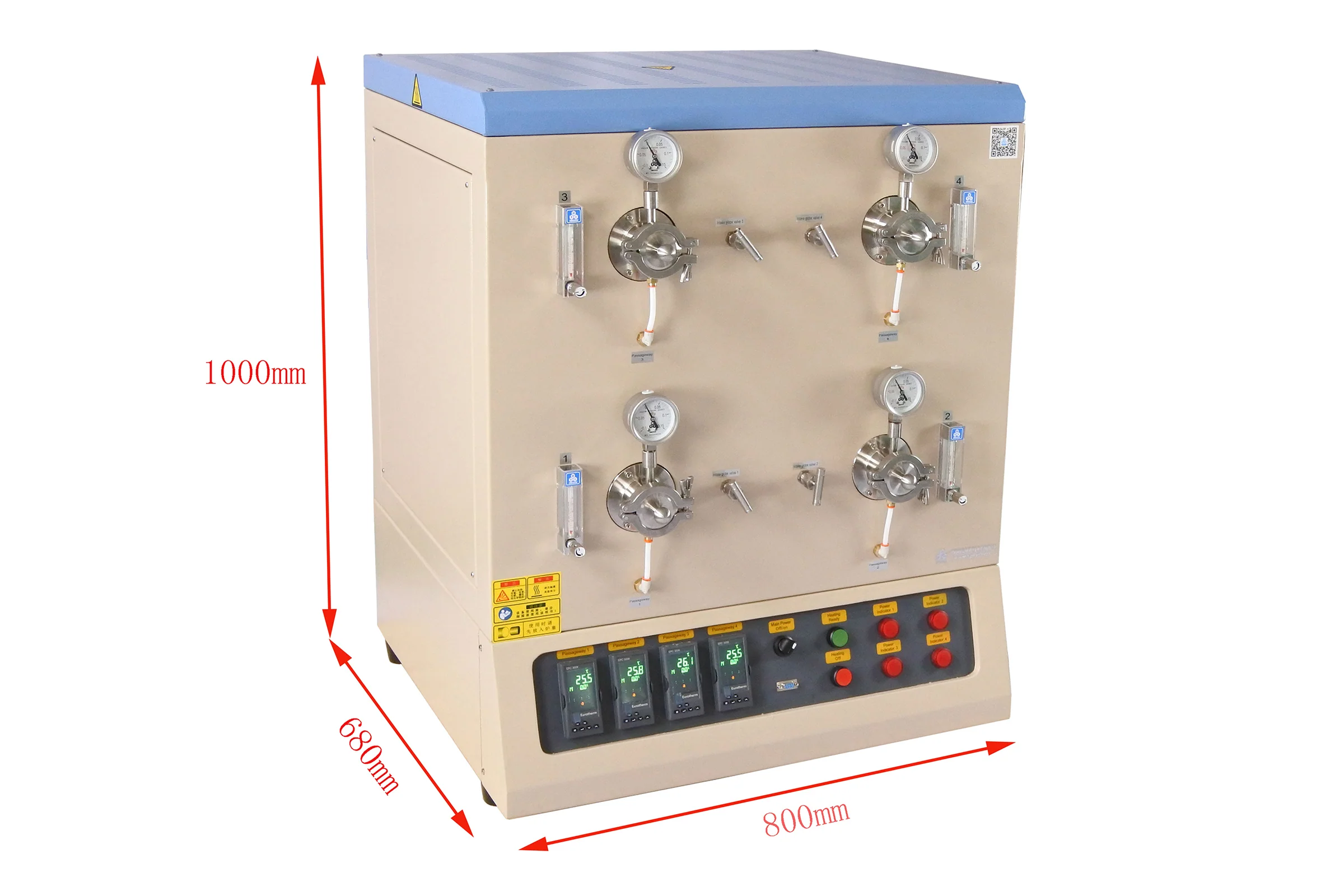

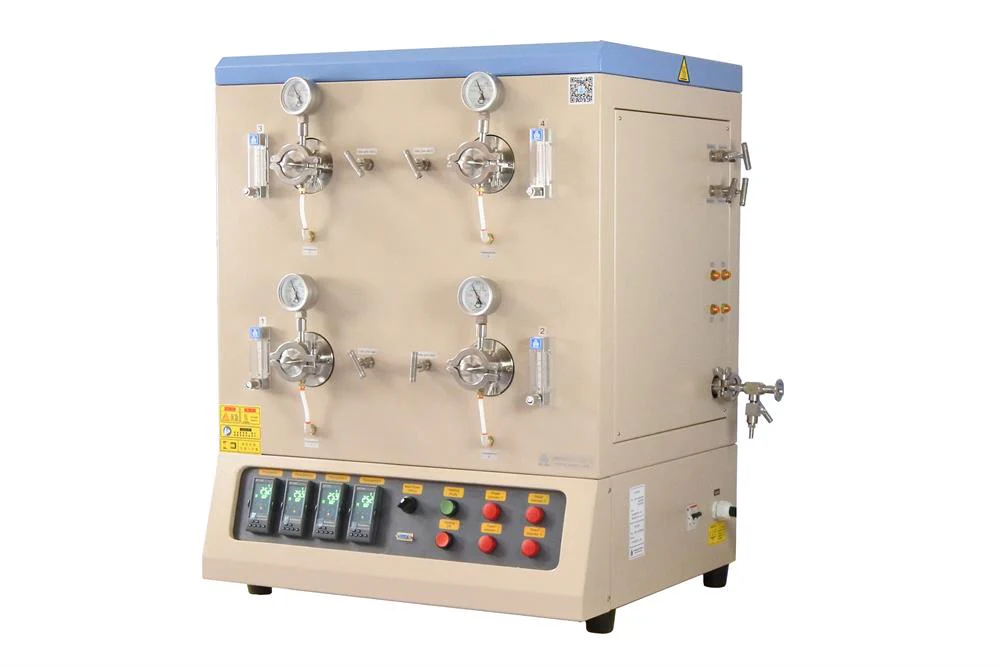

1500C Max 4 Channel Tube Furnace (50mm Alumina Tube) for Hi-Throughput Annealing - GSL-1500X-MGI-4

• The furnace is consistent with four-tube furnace modules with alumina tube 50 OD x 460 L, mm
• Each heating module's temperature is controlled independently up to 1500°C
• Quickly sealed flange, Vacuum gauge, and flowmeter are installed to allows heat treatment under vacuum or flowing gas
• Processing 4 samples with different temperature at compact space

• MoSi2

Working Temperature &
Constant Temperature Zone

• Continuous Working Temperature 1400°C
• Maximum Working Temperature 1500°C (< 1 hrs)
• +/- 10°C @ 1300°C in the center 120mm area

• High purity alumina tube with Φ50X L 460 mm, 4 tubes included
• 4 flowmeters are included
• The quickly clamped flange of KF25 with mechanical vacuum gauge and needle valves
• Max. Vacuum 10^-5 torr by a turbopump
• Only one vacuum pump required via a KF25 port. Click the picture below to choose a vacuum pump
•


• Eurotherm 3000 Series Programmable Temperature Controller
• Includes over-temperature and broken thermal couple alert.
• 4 channel heating tube is controlled independently by 24 segments programmable temperature controller
• 4 S type Thermal Couple
• Includes RS485 Communication port and PC control software, which can control and record the temperature of all 4 channel heater by one Laptop.

Heating Rate

•  10 °C/ min Max.

Temperature Accuracy

• +/- 0.5°C

Temperature Uniformity

• +/- 10°C @ 1300°C in a 120mm zone in length

Power & Working Voltage

• 12 KW, 208 - 240V single phase, 50/60Hz ( if 4 heating modules operation at the same time )
• Three-phase, AC 380V - 460V available upon request.
• Note Power cable included but without a plug. Please install a plug on your own. You may purchase a plug from your local hardware store or browse our catalog for a compatible plug.

• CE Certified
•  NRTL (UL61010) or CSA certification is available upon request at extra cost.
