NRTL Certified 156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - FYP

NRTL Certified 156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - FYP

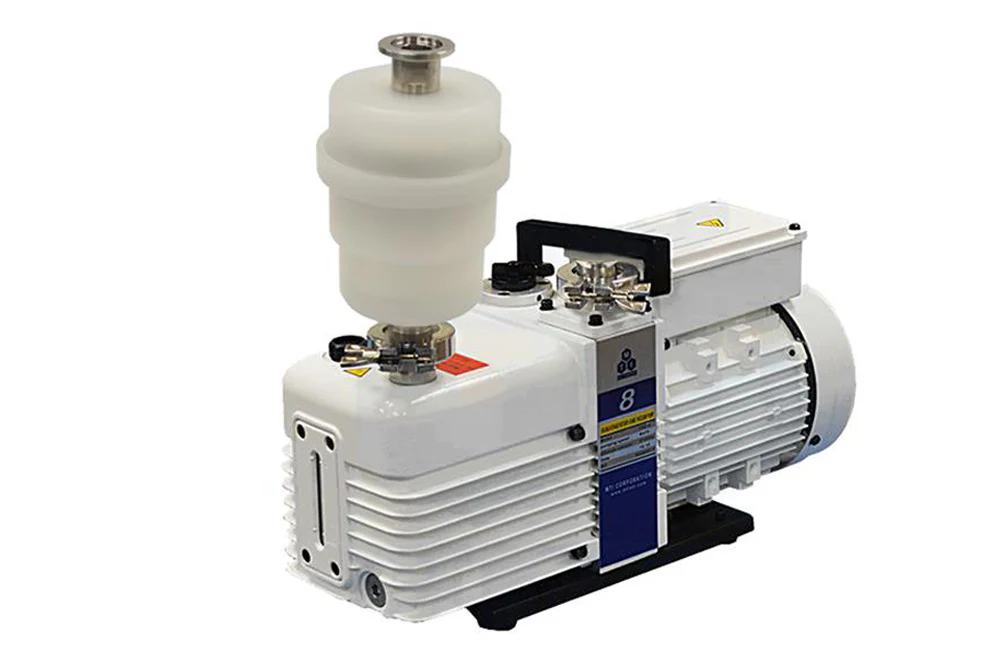

EQ-FYP (VRD-8) is a middle-size mechanical vacuum pump with complete accessories for continuous running.
Specifications:
Voltage / Frequency AC 100~120V/60Hz or AC 208~240V/50/60Hz (please select the voltage in the options bar)
Rate (m3/h)
  • 50Hz: 8 m³/h (2.2 L/s)
  • 60Hz: 9.6 m³/h (2.6 L/s)
  • Please click here to convert metric to English unit
Body Material
Stainless Steel
Maximum Pressure
≤4E-3 Torr
(click to see the conversion of pressure unit)
Power (HP)  0.4KW / 0.37KW, DB<=56

Motor Speed
  • 50Hz: 1440 rpm
  • 60Hz: 1720 rpm
The volume of Oil (ml) 1000 (included)
Working Temperature 5-40
Vacuum port
 Built-in KF25D standard Inlet/outlet port
Accessories
  • 32 Oz high-quality oil is included for immediate use (click the picture below left to order spare)
  • One Exhaust filter is included to
    • Eliminates pump oil fumes
    • Returns used oil to the vacuum pump
    • Traps Particles to 0.3 microns
    • Replaceable coalescing element

Options
  •  You may order the pump together with SS below and a valve at the extra cost ( Pic. 1)
  • Must use a Vacuum filter or cold trap to protect the vacuum pump if use the pump for CVD (Pic. 2-3)
  • Please choose a vacuum gauge by clicking picture 4 below

Dimension 165mm x 460mm x 240mm; 6.5" x 18" x 9.5"
Weight 21 kg (47 lbs)
Certification
  • UL & CE Certified





Warranty 		 One year limited with lifetime support (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned below, especially:
  • Pumping of corrosive or explosive media
  • Pumping of condensing vapors
  • Pumping of liquids
  • Pumping of dust
  • Operation with improper high levels of insulated heat input
  • Operation in potentially explosive areas
Operation Instructions


Vacuum pump and KF-25 Vacuum consumables parts:

Part No.

Product Name

 Quantity

EQ-FYP-Pump

Double Stage Rotary Vane Vacuum Pump

1

 EQ-CG-4L

Vacuum Pump Exhaust Filter with KF-D25 Adaptor

1

Optional KF25 Vacuum Suite

EQ-KF-Pipe-D25
Vacuum bellows with KF-D25 adaptor (1m)
1

EQ-KF-Clamp-D25
Quick Clamp with Rubber O-Ring for KF-D25 Vacuum adaptor
3

EQ-KF-Valve-D25
KF25 Vacuum Right-Angle Valve
1
Select Working Voltage
Select Option Accessories
From $768.25

Original: $2,195.00

-65%
NRTL Certified 156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - FYP—

$2,195.00

$768.25

More Images

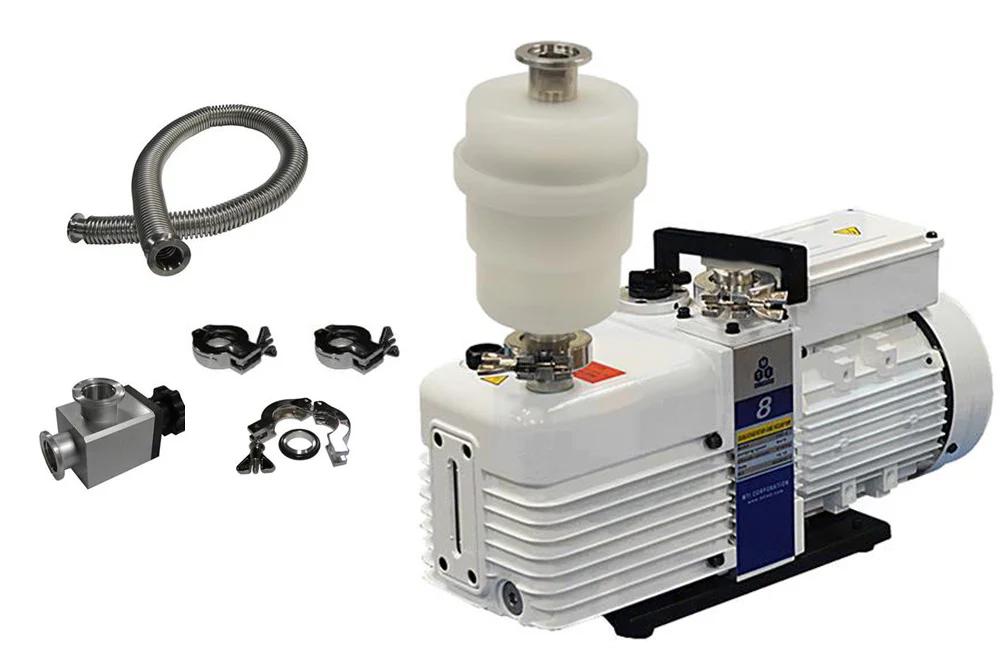

NRTL Certified 156 L/min Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - FYP - Image 2
