1200C Max 4 Channel Tube Furnace w/ 3"ID Quartz Tube for Hi-Throughput Annealing - GSL1200XMGI4

• The furnace is consistent with six-tube furnace modules with quartz tube 80 OD x 75 ID x 500 L, mm
• Each heating module's temperature is controlled independently up to 1200°C
• Quickly sealed flange, Vacuum gauge, and flowmeter are installed to use under vacuum or flowing gas
• Processing six batches of samples with the different temperatures in a compact space

• Heating Element: Ni-Cr-Al- resistance wire
• Heating zone Length 300 mm
• Constant temperature zone: ~ 100 mm within +/- 1oC

Working Temperature

• Max.Working Temperature: 1200°C < 1 hrs
• Continuous working temperature: 1200°C
• Heating rate: 20 °C/ min Max.
• Temperature accuracy: +/- 1.0 °C

• 4 quartz tubes with Φ80 X 75 ID x L 500 mm, are included

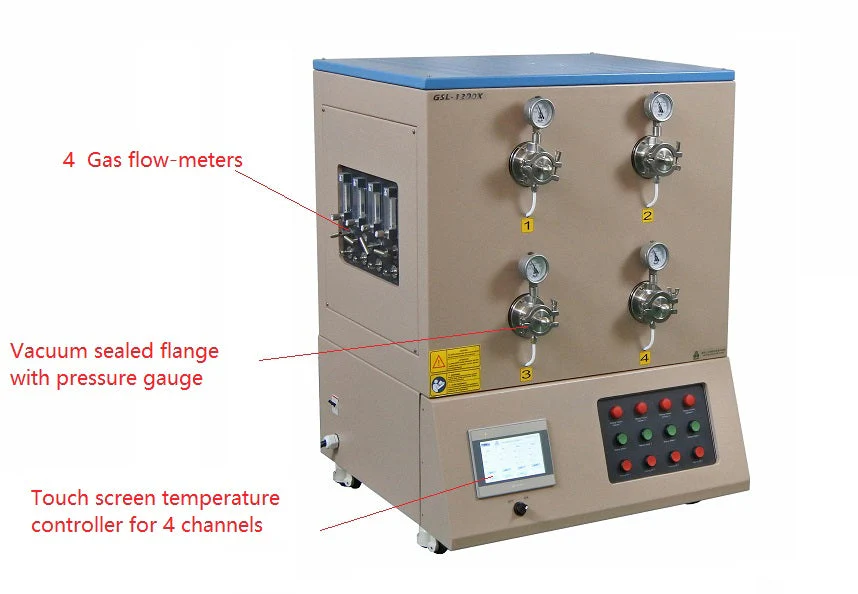

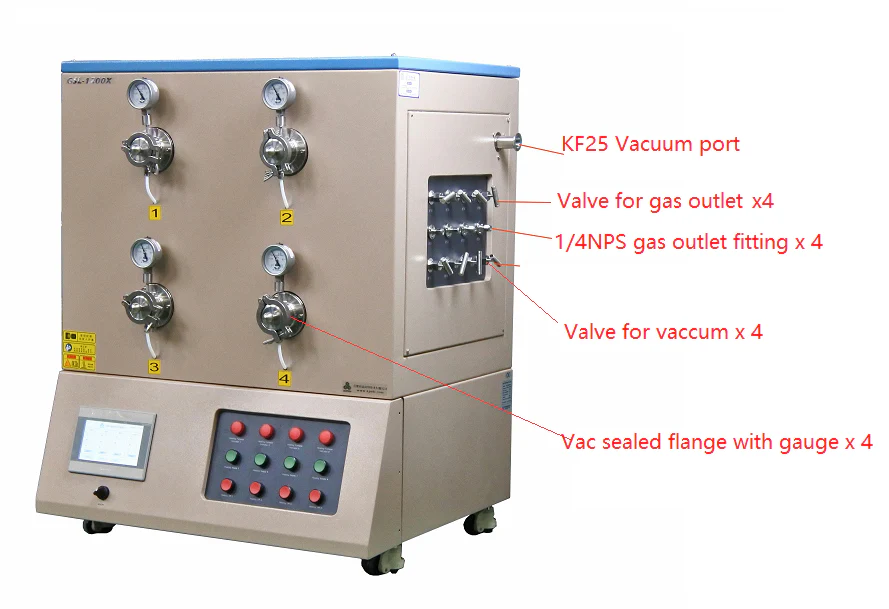

• 4 flowmeters are included KF25 vacuum port is built-in to connect the vacuum pump
• 4 Needle valves for vacuum open or close for each channel and 4 needle valve with 1/4 NPS fitting for gas outlet
• 4 Needle valves with 1.4 1/4" NPS fittings for gas outlet or vacuum are included
• The quickly clamped flange of KF25 with mechanical vacuum gauge and needle valves
• Max. Vacuum 10^-5 torr by a turbopump
• Only one vacuum pump is required via a KF25 port. Click the picture below to choose a vacuum pump



• Touch screen temperature control pane to control 4 channel temperature independently
• Includes over-temperature and broken thermal couple alert.
• 4 channel heating tube is controlled independently by 24 segments programmable
• 4 K type Thermal Couples are included
• Includes RS485 Communication port and PC control software, which can control and record the temperature of all 4 channel heaters by one Laptop.

Power & Working Voltage

• 10 KW, 208 - 240V single phase, 50/60Hz
• Total 6 KW max.
• Note Power cable included but without a plug. Please install a plug on your own. You may purchase a plug from your local hardware store or browse our catalog for a compatible plug.

• CE Certified
•  NRTL (UL61010) or CSA certification is available upon request at extra cost.
