1200°C Max. Swingable Dual Heating-zone High Pressure Furnace -10 MPa for GaN Crystal Growth - CM-HIP-2-II

CM-HIP-2-II is a swingable dual heating-zone, high-pressure furnace up to 10 MPa @ 1200°C. It is designed especially for crystal growth, such as flux method, ammonia-thermal method, or LPE for GaN or YIG. It can also be used as a conventional Hot Isostatic Pressing (HIP) furnace.

Specifications

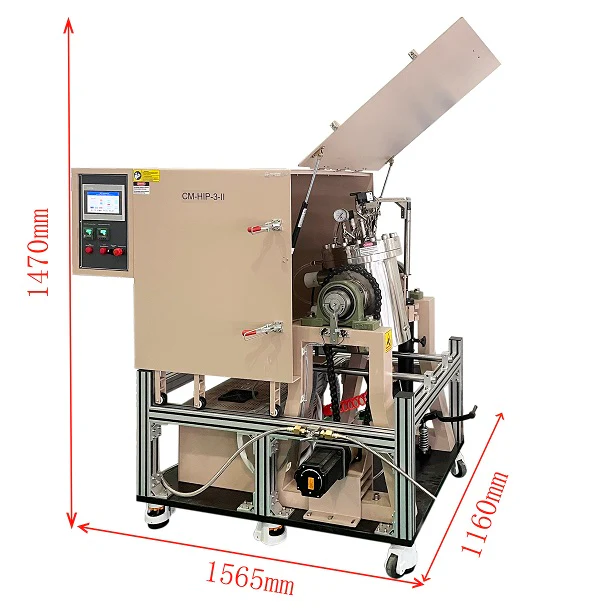

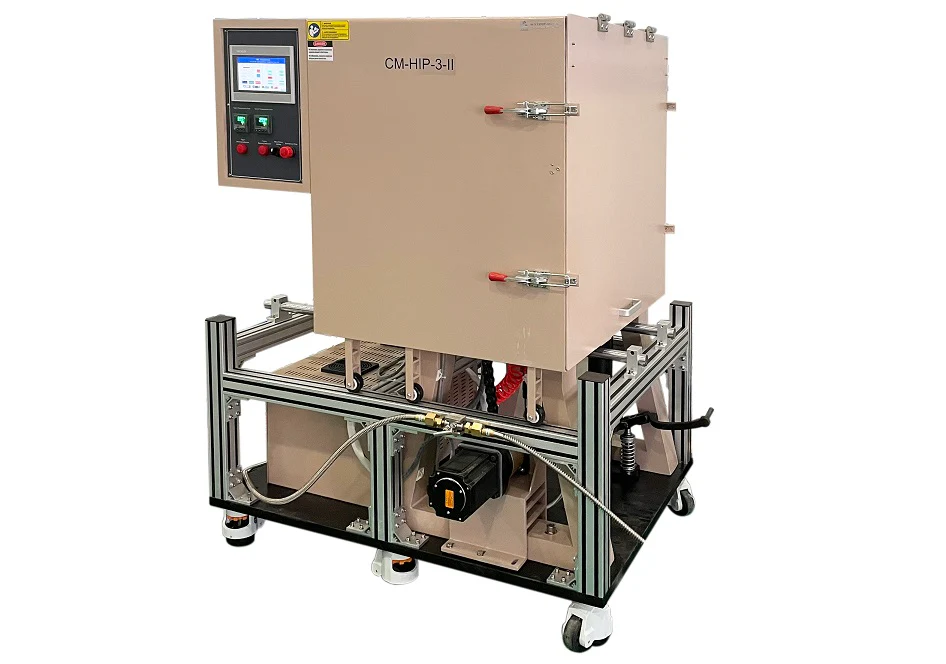

Furnace Structure	The furnace chamber is made of stainless steel (SS304) with water cooling Max. pressure 10 MPa @1200ºC Swingable drive by a gear motor. Two heating zones of 80 mm ID x 120 mm H each, separated by a ceramic plate (300 mm thick). One explosive-proof steel cover is included. The furnace can be slid into the box for safe operation The mobile cart is included for easy moving Patented #: 201510417026.0.
Furnace Chamber	The furnace Chamber is made of SS304 steel with a water cooling jacket. Ø310 × Ø205 × H250 mm One digital high-pressure transmitter is included. Two water-cooled high-pressure electric feedthrough are built into the chamber for resistance heating G1/4 gas inlet and outlet with high-pressure needle valves are included (Pic 1) The mechanical pressure relief valve is installed (Pic 2) One KJ6200 water chiller is included (Pic 3) The chamber is swingable ±15 degrees by a gear motor to make a uniform melting flux.
Heating Zone	Mo or Ni-Cr-Al resistance wire is used as heating element heating with moly reflection plates Two heating zones with the dimension below: Inside Diameter 80 mm Length 130 mm Max. Working Temperature: 1200ºC max. at 10 MPa Heating Rate: 5 ºC/min Optional: The furnace can be upgraded 1500°C at the extra cost
Temperature Control	Two Eurotherm 3000 series temperature controllers are installed to control two heating zones independently. Single loop, 24 temperature segments for ramping, cooling, and dwelling. Temperature fluctuation: ±0.1ºC RS485 port is built-in for PC operation Operation software is included for remote control Brand new laptop with the pre-installed software is available upon request.
Vacuum Level	The furnace also can be used as a vacuum furnace with an optional vacuum pump Double stage mechanical pump can reach 10E-2 torr Turbopump can reach 10E-5 torr
Power	208 - 240VAC, 50-60 Hz 10 KW Max.
Compliance	CE Certified The furnace is ready to pass NRTL(UL61010) or CSA certification at extra cost.
Application Note	The furnace can be used as a HIP furnace to treat samples up to 200 mm L x 3" Dia. The furnace can be used for GaN single crystal growth by flux and ammonia-thermal method
