Liquid Phase Epitaxial Crystal Growth Furnace up to 1700C - VBF-1700X-LPE

Liquid Phase Epitaxial Crystal Growth Furnace up to 1700C - VBF-1700X-LPE

Liquid Phase Epitaxial Crystal Growth Furnace up to 1700C - VBF-1700X-LPE

VBF-1700-LPE is a furnace for liquid phase epitaxial crystal growth designed for growing YIG single crystal.

Features

MoSi2 heating elements with operation temperature <1700ºC
Two heating zones: bottom heating and side heating for a uniform heating zone
Temperature control with +/- 0.1ºC accuracy
Rotary pulling mechanism from 0.03 mm/hr to 30 mm/hr.
High-quality fibrous alumina thermal insulation to ensure the best energy saving
Touchscreen panel for growth parameter adjustment

Specifications

Power	208 - 240VAC, Single Phase, 50/60Hz, 60 A 13 KVA Max. 10-ft power cable without a plug.
Heating Chamber	Chamber size: Ø300 mm x H 210 mm Two independent-controlled heating zones Heating Element: 1800°C grade MoSi2 8 pcs U type rods on the sides 3 straight rods at the bottom A removable top cover with growth channel and an observation channel
Working Temperature	Continuous 800-1600ºC Max Working Temperature <1700ºC (< 1 hr)
Thermocouple	Dual B-type thermocouple for each zone
Temperature Control	Two Eurotherm 3000 Controller for controlling furnace temperature with +/- 0.1^oC accuracy Two digital temperature readings for monitoring furnace temperature and over-temperature protection Heating Rate 0 ~ 10ºC / min suggested
Pulling Mechanism	Pulling Rod: one alumina rod is included Pulling Rate: 0.03 -30 mm/hr variable Max Travel Distance: 320 mm Quick up & down: Manually operated Rotation Speed: 0-100 RPM Note: Crucible is not included touch screen for controlling pulling parameters
Compliance	CE Certified NRTL(UL61010) or CSA certification is available upon request
Application Note	Please click the picture below to see that one of the customers uses the furnace and a special Pt crucible to grow YIG single crustal successfully

$27,994.75

Original: $79,985.00

-65%

Liquid Phase Epitaxial Crystal Growth Furnace up to 1700C - VBF-1700X-LPE—

$79,985.00

$27,994.75

More Images

Liquid Phase Epitaxial Crystal Growth Furnace up to 1700C - VBF-1700X-LPE - Image 2

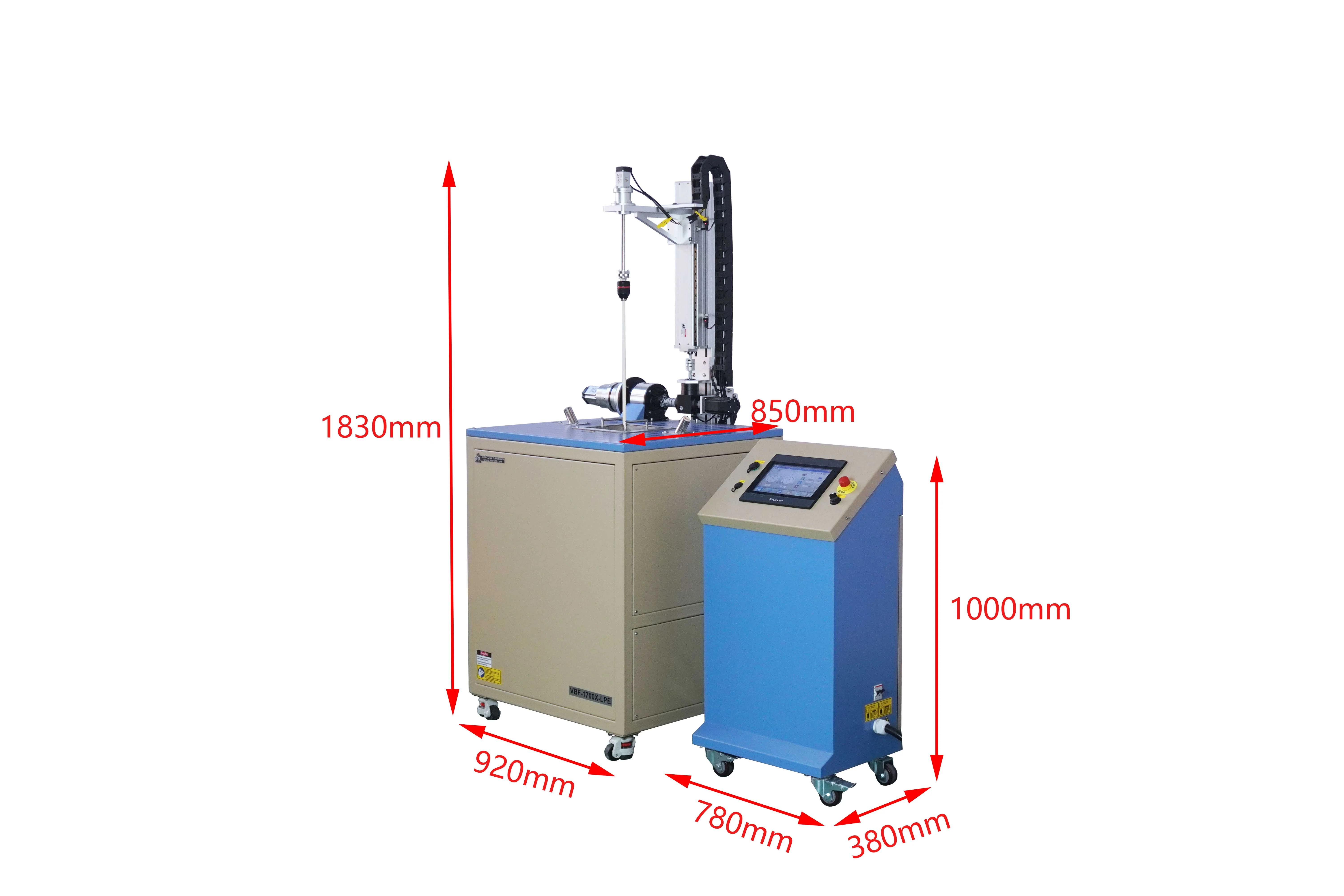

Liquid Phase Epitaxial Crystal Growth Furnace up to 1700C - VBF-1700X-LPE - Image 3

Liquid Phase Epitaxial Crystal Growth Furnace up to 1700C - VBF-1700X-LPE

VBF-1700-LPE is a furnace for liquid phase epitaxial crystal growth designed for growing YIG single crystal.

Features

MoSi2 heating elements with operation temperature <1700ºC
Two heating zones: bottom heating and side heating for a uniform heating zone
Temperature control with +/- 0.1ºC accuracy
Rotary pulling mechanism from 0.03 mm/hr to 30 mm/hr.
High-quality fibrous alumina thermal insulation to ensure the best energy saving
Touchscreen panel for growth parameter adjustment

Specifications

Power	208 - 240VAC, Single Phase, 50/60Hz, 60 A 13 KVA Max. 10-ft power cable without a plug.
Heating Chamber	Chamber size: Ø300 mm x H 210 mm Two independent-controlled heating zones Heating Element: 1800°C grade MoSi2 8 pcs U type rods on the sides 3 straight rods at the bottom A removable top cover with growth channel and an observation channel
Working Temperature	Continuous 800-1600ºC Max Working Temperature <1700ºC (< 1 hr)
Thermocouple	Dual B-type thermocouple for each zone
Temperature Control	Two Eurotherm 3000 Controller for controlling furnace temperature with +/- 0.1^oC accuracy Two digital temperature readings for monitoring furnace temperature and over-temperature protection Heating Rate 0 ~ 10ºC / min suggested
Pulling Mechanism	Pulling Rod: one alumina rod is included Pulling Rate: 0.03 -30 mm/hr variable Max Travel Distance: 320 mm Quick up & down: Manually operated Rotation Speed: 0-100 RPM Note: Crucible is not included touch screen for controlling pulling parameters
Compliance	CE Certified NRTL(UL61010) or CSA certification is available upon request
Application Note	Please click the picture below to see that one of the customers uses the furnace and a special Pt crucible to grow YIG single crustal successfully
