1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG

VTF-1200X-TSSG is a top seed solution growth (TSSG) furnace for growing various single crystals via flux solution. The furnace consists of high-quality alumina fiber brick with a chamber of 9.5" Diameter x 8.6 " high and can be used up to 1200ºC. The Precision digital temperature controller with 30 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling, and rotation mechanism with a speed range from 0.1 - 50 mm/hour.

Please click to view the article of Flux Method for Preparing Crystals

Furnace construction	Double shell steel casing with a cooling fan to keep a low surface temperature High-purity alumina fiber insulation and liner for max. energy saving Inside Chamber Size of furnace 9.5" Diameter x 8.6 " high (9 Liter) The furnace is slidable on the frame for easy sample loading and unloading Quartz window is available upon request
Working Temperature	Max. Working Temperature: 1250ºC (< 30 minute) Standard Working Temperature: 1150ºC (continuous)
Control Panel	PLC touch screen control panel for controlling temperature, pulling speed, rapid downward speed and rotation speed of pulling rod Temp. Controller: 8 steps programmable and auto PID control with +/- 0.1ºC accuracy (Eurotherm 3000 inside) Heating Rate 0~10ºC / min (suggestion at =< 5ºC) Pulling Speed: 0.5-50mm/h adjustable Downward speed: 50 mm/minute fixed The rotation speed of the pulling rod: 0.1-23 RPM adjustable
Pulling Range	250 mm Max.
Power	AC 220V Single Phase 4.0 KW
Power Cable & Plug	10 feet long 10-3 AWG heavy-duty UL-approved power cable is included. Extra length cable can be ordered by clicking the picture below The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.
Furnace Dimension	Please click the picture to review
Warranty	One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement in the related products below.)
Compliance	CE Certified NRTL(UL61010) or CSA certification is available upon request at extra cost.

$24,998.00

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG—

$24,998.00

More Images

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG - Image 2

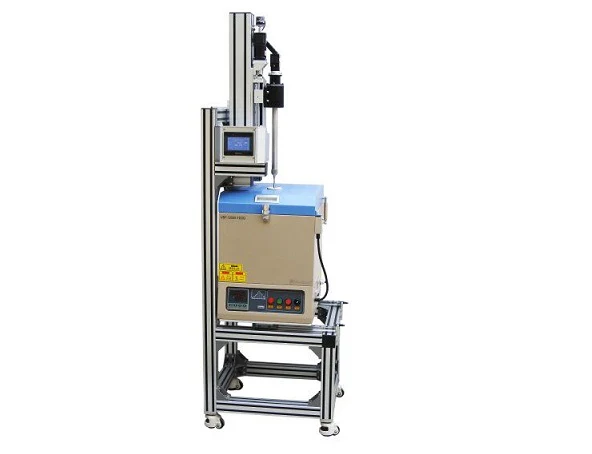

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG - Image 3

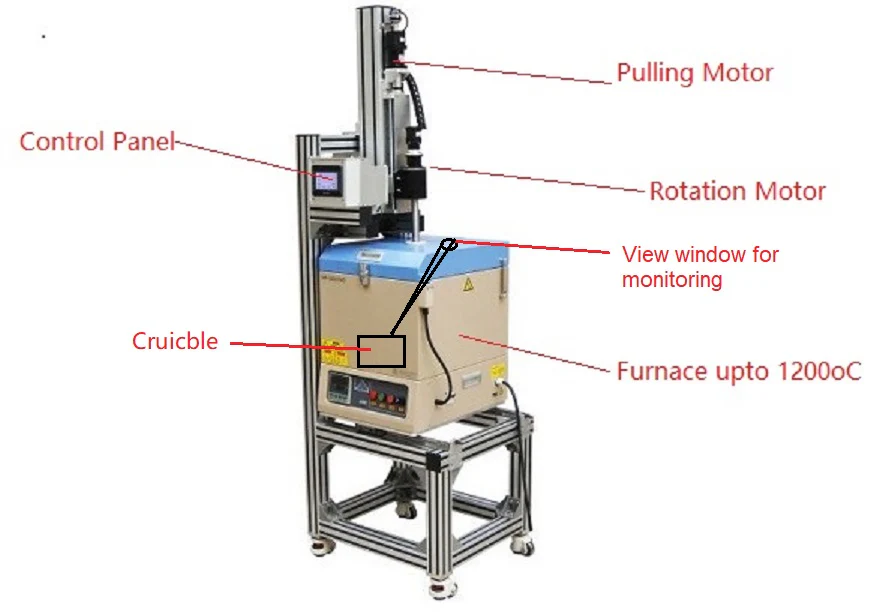

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG - Image 4

1200 ºC Max. Top Seeded Solution Growth (TSSG) Furnace - VTF1200TSSG

VTF-1200X-TSSG is a top seed solution growth (TSSG) furnace for growing various single crystals via flux solution. The furnace consists of high-quality alumina fiber brick with a chamber of 9.5" Diameter x 8.6 " high and can be used up to 1200ºC. The Precision digital temperature controller with 30 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling, and rotation mechanism with a speed range from 0.1 - 50 mm/hour.

Please click to view the article of Flux Method for Preparing Crystals

Furnace construction	Double shell steel casing with a cooling fan to keep a low surface temperature High-purity alumina fiber insulation and liner for max. energy saving Inside Chamber Size of furnace 9.5" Diameter x 8.6 " high (9 Liter) The furnace is slidable on the frame for easy sample loading and unloading Quartz window is available upon request
Working Temperature	Max. Working Temperature: 1250ºC (< 30 minute) Standard Working Temperature: 1150ºC (continuous)
Control Panel	PLC touch screen control panel for controlling temperature, pulling speed, rapid downward speed and rotation speed of pulling rod Temp. Controller: 8 steps programmable and auto PID control with +/- 0.1ºC accuracy (Eurotherm 3000 inside) Heating Rate 0~10ºC / min (suggestion at =< 5ºC) Pulling Speed: 0.5-50mm/h adjustable Downward speed: 50 mm/minute fixed The rotation speed of the pulling rod: 0.1-23 RPM adjustable
Pulling Range	250 mm Max.
Power	AC 220V Single Phase 4.0 KW
Power Cable & Plug	10 feet long 10-3 AWG heavy-duty UL-approved power cable is included. Extra length cable can be ordered by clicking the picture below The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.
Furnace Dimension	Please click the picture to review
Warranty	One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement in the related products below.)
Compliance	CE Certified NRTL(UL61010) or CSA certification is available upon request at extra cost.

Product Information

Shipping & Returns

Description

VTF-1200X-TSSG is a top seed solution growth (TSSG) furnace for growing various single crystals via flux solution. The furnace consists of high-quality alumina fiber brick with a chamber of 9.5" Diameter x 8.6 " high and can be used up to 1200ºC. The Precision digital temperature controller with 30 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling, and rotation mechanism with a speed range from 0.1 - 50 mm/hour.

Please click to view the article of Flux Method for Preparing Crystals

Furnace construction	Double shell steel casing with a cooling fan to keep a low surface temperature High-purity alumina fiber insulation and liner for max. energy saving Inside Chamber Size of furnace 9.5" Diameter x 8.6 " high (9 Liter) The furnace is slidable on the frame for easy sample loading and unloading Quartz window is available upon request
Working Temperature	Max. Working Temperature: 1250ºC (< 30 minute) Standard Working Temperature: 1150ºC (continuous)
Control Panel	PLC touch screen control panel for controlling temperature, pulling speed, rapid downward speed and rotation speed of pulling rod Temp. Controller: 8 steps programmable and auto PID control with +/- 0.1ºC accuracy (Eurotherm 3000 inside) Heating Rate 0~10ºC / min (suggestion at =< 5ºC) Pulling Speed: 0.5-50mm/h adjustable Downward speed: 50 mm/minute fixed The rotation speed of the pulling rod: 0.1-23 RPM adjustable
Pulling Range	250 mm Max.
Power	AC 220V Single Phase 4.0 KW
Power Cable & Plug	10 feet long 10-3 AWG heavy-duty UL-approved power cable is included. Extra length cable can be ordered by clicking the picture below The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.
Furnace Dimension	Please click the picture to review
Warranty	One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement in the related products below.)
Compliance	CE Certified NRTL(UL61010) or CSA certification is available upon request at extra cost.
